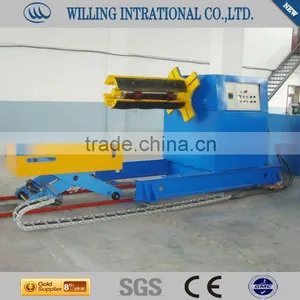

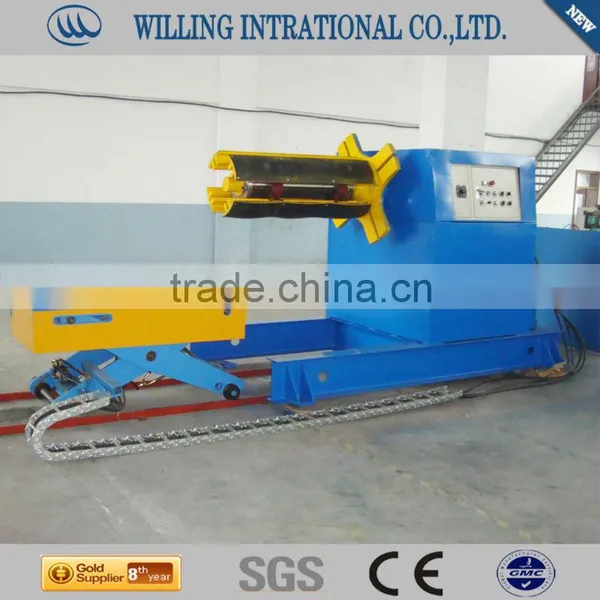

Hydraulic Uncoiler System

Specifications

 Hydraulic Uncoiler System  Components
The uncoiler consists of the moving dolly, uncoiler with pressing arm, frame with lead rail, and hydraulic system. The moving dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the ucoiler expanse, the coil be fixed on the uccoiler, main axis of the uncoiler rotate, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.

Hydraulic Uncoiler System  Function
The moving dolly can be lifted, move on the lad rail, carry the coil to the uncoiler, the leafs of the ucoiler expanse, the coil be fixed on the uccoiler, main axis of the uncoiler rotate, the coil sheet
comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.

Hydraulic Uncoiler System  Parameters
For moving dolly

For uncoiler

For hydraulic

Hydraulic Uncoiler System  work flow
fix the position of the uncoiler         fix coil sheet to moving dolly       moving dolly move to uncoiler       moving dolly lift to the same center with uncoiler        moving dolly
move more closely to uncoiler arms of uncoiler       expanse( coil moves to the uncoiler)
moving dolly return        axis of uncoiler rotate (coil sheet comes out)
