Specifications

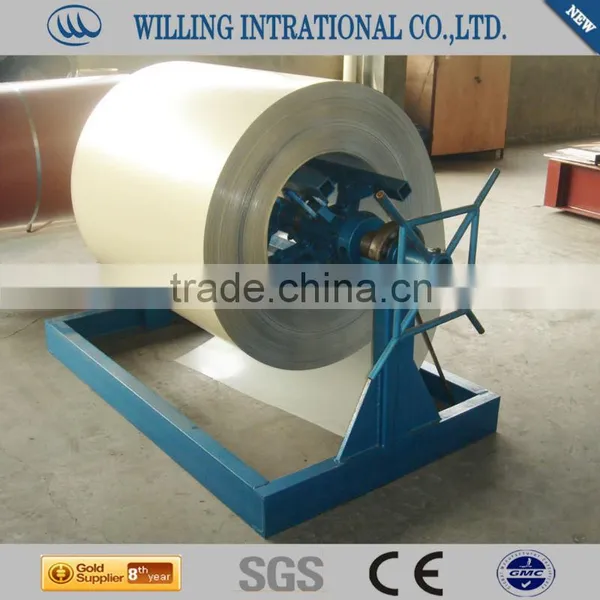

We are specialied in making uncoiler, we can design all kinds of pattern.Uncoiler Machine Components
The uncoiler consists of the moving dolly, uncoiler with pressing arm, frame with lead rail, and hydraulic system. The moving dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the ucoiler expanse, the coil be fixed on the uccoiler, main axis of the uncoiler rotate, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.
Uncoiler Machine Function
The moving dolly can be lifted, move on the lad rail, carry the coil to the uncoiler, the leafs of the ucoiler expanse, the coil be fixed on the uccoiler, main axis of the uncoiler rotate, the coil sheet
comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.
Uncoiler Machine Parameters
For moving dolly
| Capacity Speed Lifting Moving |
: max. 10tons : 6m/min : max. 550mm : max. 3000mm |
For uncoiler
| Capacity Inner Dia Width Center adjust |
: max. 10tons : About 508mm;610mm(gasket is required) : max. 1500mm : max. 250mm |
For hydraulic
| Max. hydraulic pressure Motor power Air pressure |
: 16Mpa : 10.5KW : 0.9Mpa |
Uncoiler Machine work flow
fix the position of the uncoiler fix coil sheet to moving dolly moving dolly move to uncoiler moving dolly lift to the same center with uncoiler moving dolly
move more closely to uncoiler arms of uncoiler expanse( coil moves to the uncoiler)
moving dolly return axis of uncoiler rotate (coil sheet comes out)
