Help CenterTorch Height ControllerSH-HC30
Related Products
Specifications
torch height controller1.Power Requirements: DC 24V +2 V 3 A
2.Applicable motor: 17/23 HS series of stepper motors
3.Man
|

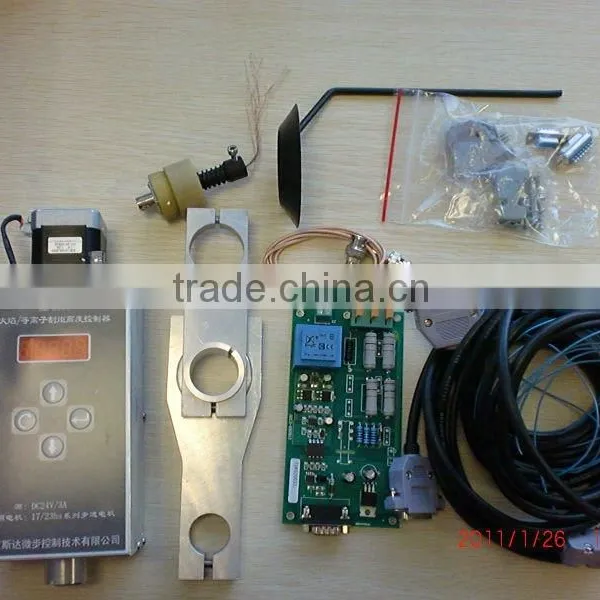

torch height controller Stepper motor instead of conventional DC motor | |
Power Requirements: DC 24V +2 V 3 A Applicable motor: 17/23 HS series of stepper motors Manual adjustment range: 0-100 mm Automatic height control range: 3 -30 mm Adjusting speed of automatic height control: 3000 mm/min (30 ?slope) Control precision: Dimensions of box body: (155 *87 *71) mm Operating temperature: -10to 50 Weight: Total weight of capacitance height control: 1.990kg Total weight of arc voltage height control: 1.645kg Detection system: capacitance height detector and arc voltage height detector Stepper motor instead of conventional DC motor Model SH-HC30 height controller for flame/plasma cutting torch uses the proprietary stepper motor control technology of Microstep to replace the conventional DC motor height control technology, which makes it faster and smoother in addition to significantly intended service life.
Directly displaying the height of cutting nozzle in capacitance height control mod The advanced height linear calibration technology makes absolute height display and control possible when the distance between the cutting nozzle and work piece is within 3 ~ 30mm in the capacitance mode under for automatic height control in unit of millimeter and display accuracy of ?0.1mm. Integration of mechanical lifting device and height controller Detector, controller and drive are highly integrated with adjustable stroke up to 10cm. All Digital Technology Circuit uses SMD technology without any adjustable devices; all digital control technology ensures high product reliability. Simple and convenient linearization calibration The feature of "one-keystroke height calibration" guarantees that in any circumstances, the user only needs to press one key to calibrate the absolute height measurement and achieve linear height measurement. Applicability in tough environment The shell uses tamper-proof, waterproof and moisture-proof aluminum box sealed design, particularly applicable to the severe environment of high temperature or high electromagnetic interference from flame cutting or plasma cutting operation. Various interfaces easy to use. The interface is simple and easy to control. It is suitable for any flame cutting and plasma cutting CNC system or using alone. RS232 communication interfac Asynchronous communication function enables connection with CNC system and facilitates parameter setting, automatic/manual control, taper angle transition control and data exchange. |
