Cut to Length Line includes in Hydraulic coil car,Hydraulic conical uncoiler,Hydraulic guiding-head,Hydraulic feeding machine...Product Name:Cut to Length Line
Technical Parameter
1.Thickness of coiled plate: 0.66mm;.
2.Width of coiled plate: 1300mm;
3.Coil I.D: 508mm760mm;
4.Coil O.D: ≤2200mm;
5.Weight of coiled plate: 15T;
6.Apply for the cold plate of δb≤350Mpa;
7.Precision of leveling: length tolerance: ±1.0mm/2000mm;
diagonal tolerance: ±1.5mm/2000mm;
no macroscopic pincher and small marginal wave
8.Material of leveling roller: 40Cr
hardness of leveling roller surface: HRC4852;
9.Leveling speed: 025m/min (adjustable);
calculated by 2m plate: 67 pcs/min
10.Power: 440V, three phase, 60Hz.
Composed Device
1.Hydraulic coil car: loading capacity of 15T
The operation and lifting of this dolly is conducted by oil cylinder.

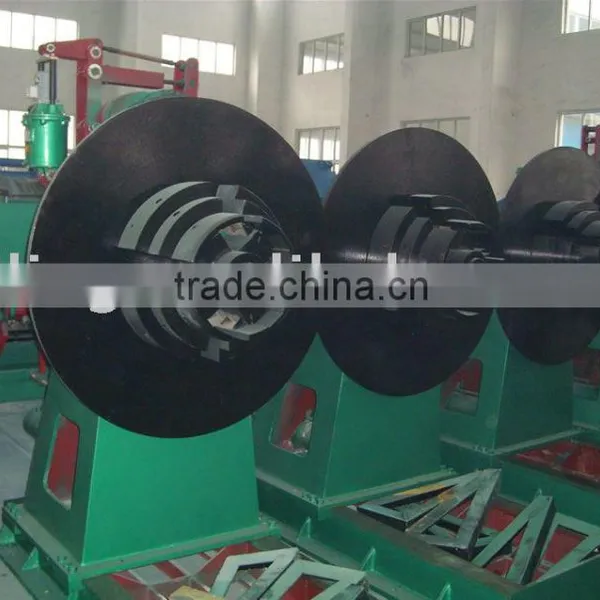

2.Hydraulic conical uncoiler:
This is composed of bottom-stand(guiding track pattern), frame, detent device, discharging axe, conical discharging plate, hydraulic pushing device, clutch, etc.
3.Hydraulic guiding-head, shovel-head device:
This is composed of frame-stand, hydraulic arm, pressing & guiding roller, hydraulic leveling-head, shovel-head, etc. accompany of seam needle decelerating motor:7.5KW, etc.
4.Hydraulic feeding machine:
This is composed of frame, torii, squareness slide supporting stand, feeding roller, hydraulic lifting device, clutch, accompany of decelerator400, motor:11KW, etc.
5.Rolling orbit worktable 4m
This is composed of bottom-stand, rolling orbit, bearing-stand, etc.
6.Guiding machine:
This is composed of frame, guiding pole, adjustable screw, moveable plane plate and clutch with multiroller, etc.
7.Leveler:
Power part: This is composed of power-stand, 650decelerator, direct-current speed adjustable motor:55KW(Eurotherm), direct-current cabinet, distributing case, universal joint, etc.
Host machine: This is composed of leveling-stand, frame, slide, axe roller 15pcs(roller diameter: Φ140mm), electronic lifting &pressing device, accompany of two motors: 3KW.
8.Coding device:
This is composed of coding transition table, coding & pinch device, coder, etc.
9.Cut to length machine: (electric control)6.3×2000mm
10.Worktable, swaying pneumatic pinch machine:
This is composed of worktable, frame, rolling orbit, bearing-stand, etc. accompany of seam needle decelerating motor:4KW
11.Unloading car: 6mm
Vertically and horizontally pneumatic pushing device, etc.
12.Full set of electric control system:
This is composed of host electric operating desk, front operating table, etc.
13.Hydraulic system:
This is composed of hydraulic station, pipe, tie-in, etc.Hydraulic oil, lubricate oil, pneumatic resource shall provided by the User.
