High Quality roof and wall PU sandwich panel, roof PU sandwich panel, wall PU sandwich panel.High Quality roof and wall PU sandwich panel/
roof PU sandwich panel/
wall PU sandwich panel
ROOF PANEL
WALL PANEL
Name: PU(Polyurethane) sandwich panel;
Surface: color coated or without color paint;
Material: galvanized steel, galvalume steel, pre-painted steel, and aluminum;
Steel thickness: 0.2~0.8mm,
Total panel thickness: 35~250mm;

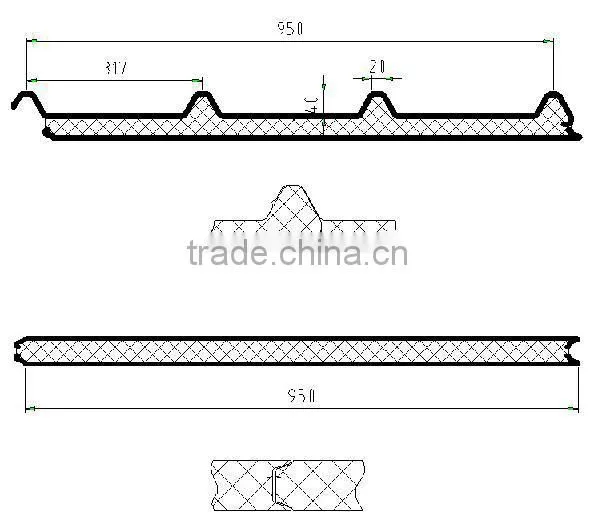

Model: WLYX40-317-950 (If you like other models, please check our website);
Cover Width: 950mm;
We can provide the Quality Certificate after delivery.
If you want to buy PU sandwich panel, please tell us,
1. thickness of steel, and thickness of total panel,
2. color on the surface, or no color paint,
3. zinc(AZ) coating of gavanized/ galvalume steel,
4. density of PU material, (normally 40kg/m3)
5. length to one piece,
6. roof panel or wall panel,
7. quantity of order,
8. other requirements.
Buy more, get more discount.
Capacity: 3m per minute, so one day 8 hours can make about 1440m.

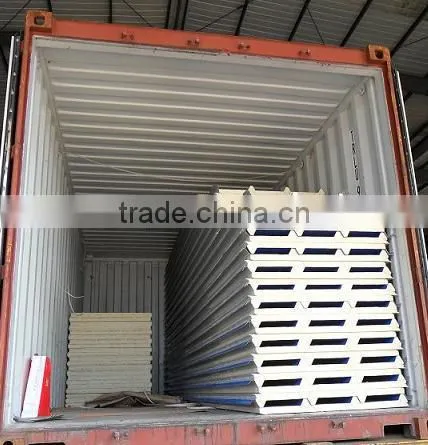

Container loading,
First know the inner side of 20ft GP and 40ft GP containers,
20ft GP: 5.8m * 2.3m * 2.3m;
40ft GP: 11.8m *2.3m *2.3m;
The length per piece couldn't beyond above container length limited.
We can help you calculate how many pieces one container can load.
* Fixing in container: sea-worthy, it can be used belt to fix the panels, or use steel strip belt and pallet packed.
