Punching Machines J23-10/ Power Press J23-10
US$ 1,800 - 1,950
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4-rollers Steel Embossing Machine/simple Embossing MachineUS$ 14,000 - 20,000MOQ: 1 Set -
Pipe Curving MachineUS$ 14,000 - 16,000MOQ: 1 Set
-
Steel Door Frame Roll Forming Machine/Garage Door Forming MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
Roller Shutter Roll Forming Machine/Garage Door Forming MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
Drywall Stud and Track Roll Forming MachineUS$ 19,000 - 24,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Mechanical
Place of Origin
Zhejiang, China
Brand Name
Willing
Model Number
J23-10
Voltage
380V 3phase 50HZ
Power(W)
1.1Kw
Weight
600kgs
Dimension(L*W*H)
713*895*1653mm
Certification
CE,ISO9001:2008
Specifications
1.High precision,Wide application2.CE:ISO9001:2008
3. Quality guarantee
4. easy operation
5. Various Spec for choice
J23 -10 Punching machine
Main parameters:
No. |
Description |
Unit |
J23-10 |
||
1 |
Nominal capacity |
KN |
100 |
||
2 |
Stroke of nominal pressure |
mm |
3.2 |
||
3 |
Stroke of slide |
mm |
45 |
||
4 |
Stroke per minute |
s.p.m. |
145 |
||
5 |
Max. shut height |
mm |
145 |
||
6 |
Shut height adjustment |
mm |
35 |
||
7 |
Frame gap |
mm |
130 |
||
8 |
Worker bench dimension
|
Right-left |
mm |
370 |
|
Front-back |
mm |
240 |
|||
Depth |
mm |
35 |
|||
Centre hole diameter |
mm |
80 |
|||
9 |
Bolster hole size |
Right-left |
mm |
200 |
|
Front-back |
mm |
130 |
|||
Diameter |
mm |
170 |
|||
10 |
Slide block bottom size |
Right-left |
mm |
170 |
|
Front-back |
mm |
150 |
|||
11 |
Shank hole size |
Diameter |
mm |
30 |
|
Depth |
mm |
55 |
|||
12 |
Distance between columns |
mm |
180 |
||
13 |
Gradient |
°C |
25 |
||
14 |
Electromotor |
Type |
Y90L-6 |
||
Power |
KW |
1.1 |
|||
Revolve speed |
r/min |
940 |
|||
15 |
Overall dimensions |
Right-left |
mm |
713 |
|
Front-back |
mm |
895 |
|||
Height |
mm |
1653 |
|||
16 |
Weight |
Kg |
600 |
||

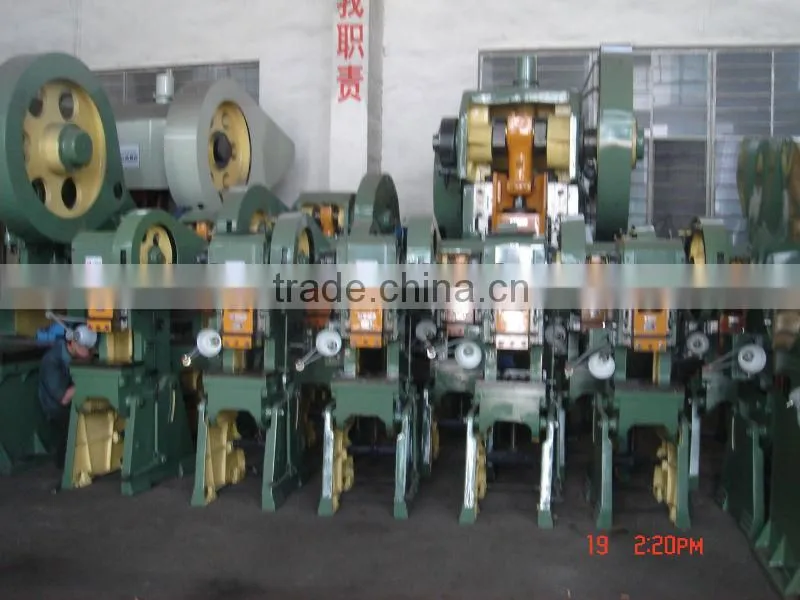

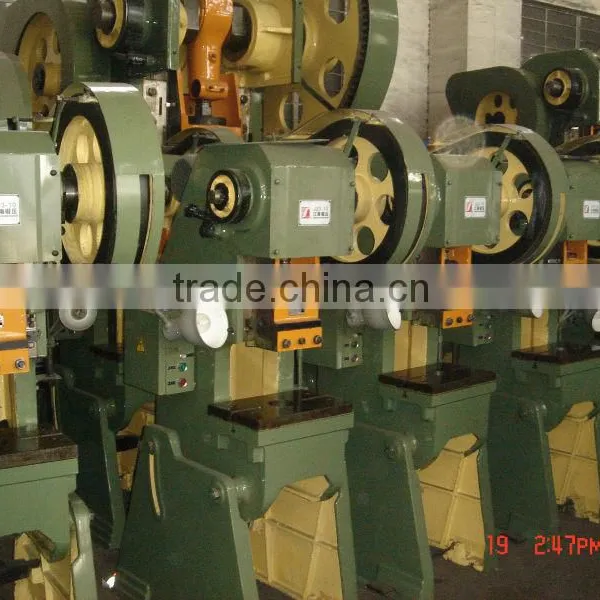

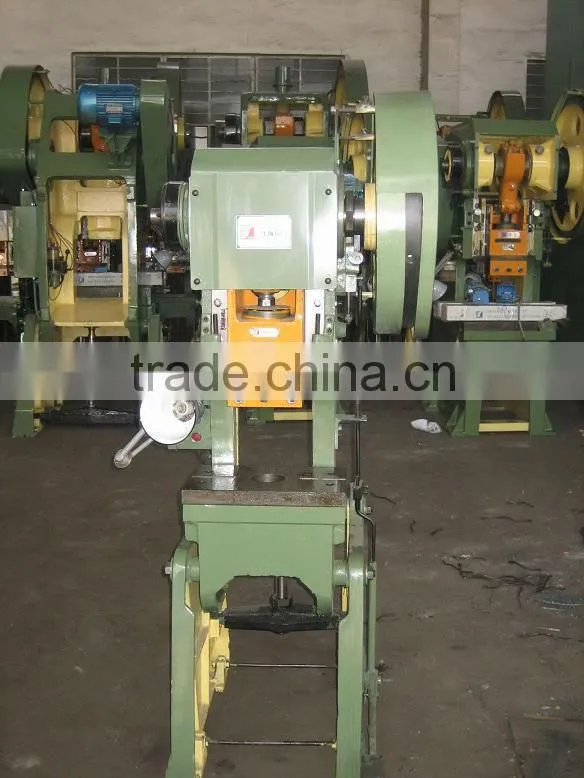

Reference pictures:
