Automatic EPS Sandwich Panel Production Line

 Specifications

1. Dimension :  40M X 2M X 5 M

2. Total weight: about 25000kg

3. Controlling system: PLC

4. Total power (including heating): about 40kw

5. Working speed: 1000~4000mm/min

6. Suitable working temperature: about 25'C

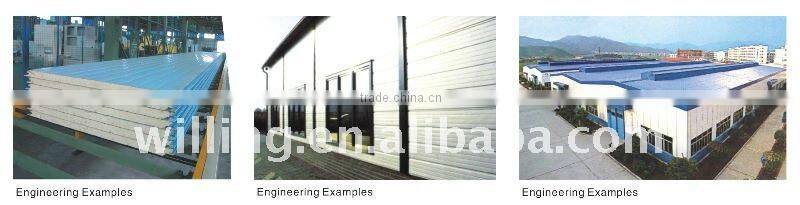

7. Density of EPS: >18kg/m3Suitable material for productionSuitable material of out layer: colored galvanized steel sheetSize: 1000mm (1200mm) ¡Á (0.5~0.6)mm ¡Á mmRecommended internal material: polystyrene (EPS)product usageThe products of this line are widely used as the roof and wall of factory, warehouse,garage, exhibition center, cinema, theatre, gymnasium, civil construction,stadium, cold storage, etc.

8.Components

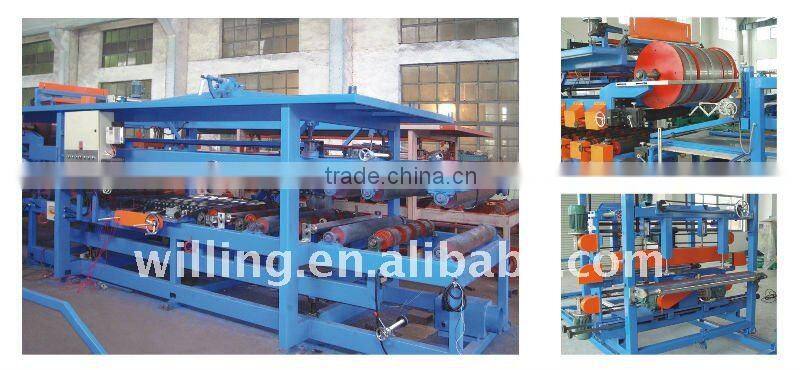

Standard Decoiler---- Roll Forming System ---- Post-cutting Equipment (for cutting corrugated sheet) ---- Consecutive Laminating Body (one for upper coil, other for lower coil)---- Coil Guiding Equipment ---- Pre-heating System---- Guiding Roller Core---- Glue Providing---- Glue Filling Pad---- Heater---- Dust-absorbing System---- Cutting System (for laminating use)---- PLC Control System ---- Supporting Table---- Safety Guard

Brief Introduction

The production line integrated with pneumatic electricity and engine, which is specialized in manufacturing colored steel heat insulation sandwich panel. This production line can produce and compound tile panel. The whole line is consisted of uncoiler, cutting set, - compound system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer, automatic cutting) and is computer operated, which is necessary to manufacture roof and wall panels for industrial workshop and warehouses.

 IF YOU WANT TO KNOW MORE ABOUT THE MACHINE,PLEASE CONTACT ME !
