Help CenterMetal Water Falling Tube Cold Roll Forming Machine in China
Related Products
-
Steel Water Falling Tube Roll Forming Machine by ISO 9001 and CE CertificateUS$ 28,000 - 36,000MOQ: 1 Set -
Steel Square/rectangular Pipe Roll Forming Machine by ISO 9001 and CE CertificateUS$ 28,000 - 36,000MOQ: 1 Set
-
Hydraulic Metal Tube Mill Forming Machine for RainpipeUS$ 28,000 - 36,000MOQ: 1 Set
-
Hot Sale Rainspout Roll Forming Machine in China by ISO 9001 and CE CertificateUS$ 28,000 - 36,000MOQ: 1 Set
-
Metal Pipe Tube Water Falling Down Making Machine Manufacture in ChinaUS$ 28,000 - 36,000MOQ: 1 Set
Specifications
1. Thickness:0.4-0.6mm2. Strength: Q235-345Mpa
3. Material: galvanized or pre-painted steel sheet
4. Speed:0-15m/min
Water tube downpipe cold roll forming machine
1. Machine profile
As buyer's request
2. Machine layout
3. Main parameter
Material spec: |
Color steel sheet; |
Thickness: |
0.4 mm to 0.6 mm |
Coil width: |
depends |
Working speed: |
0-3m/min. (Nodal distance at 250mm) |
Cutting tolerance: |
±2mm |
Main motor power: |
4Kw |
Hydraulic station power: |
3.5Kw |
Decoiler |
manual decoiler, max capacity 5000kgs |
Main roller qty: |
about 16 stands but depends on last design |
Type of cutting: |
Roll-formed and length-set cutting |
Main body dimension: |
About 7800mm*1500mm*1500mm |

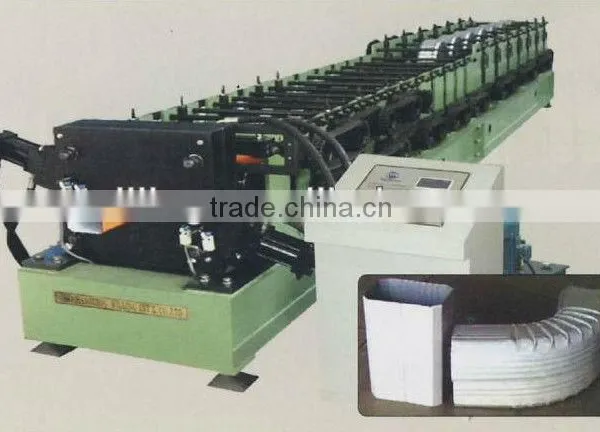

4. Machine picture
5. Working flow
Decoiling the sheet------Sheet guiding------Roll forming ------Measure length------Cutting the panel------Panels to the supporter
6. Standard equipment of machine
5tons passive uncoiler |
1set |
Pre-cutting equipment(Optional) |
1set |
Guiding Equipment |
1set |
Roll Forming Equipment |
1set |
Post Cut Equipment |
1set |
Hydraulic Station |
1set |
PLC Control Penal |
1set |
Supporter Table |
2sets |
