FJX-2500 IG Units Auto Silicone Sealing Robot

Name: FJX-2500 IG Units Auto Silicone Sealing Robot
Brand: Jinan Beijia
SKU: 127377027
Availability: InStock

US$ 45,500 - 46,500 MOQ: 1 Set

Key Specifications

Condition:

New

Machine Type:

Insulating Glass Production Line

Production Capacity:

700-800 units per hours

Jinan Beijia CNC Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Machine Type Insulating Glass Production Line

Production Capacity 700-800 units per hours

Place of Origin Shandong, China

Brand Name Jinan Beijia

Model Number FJX-2500

Voltage 380V 50HZ

Power(W) 15 kw

Dimension(L*W*H) 13000*3000*3400 mm

Weight 4200kg

Certification Other, ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

FJX-2500 IG Units Auto Silicone Sealing Robot

Product Description

FJX-2500 IG Units Auto Silicone Sealing Robot

Equipment Configuration

Parameter

Model	FJX 2500 FJX-2500 IG Units Auto Silicone Sealing Robot
Motor Power	380V 50Hz 15 kw
Max Glass Size	2500*3500 mm
Min Glass Size	400*350 mm
Single Glass Thickness	3-12 mm
Double Glass Thickness	12-60 mm
Glue Sealing Speed	12-30 m/min
Glue Sealling Width	6-24 mm
Glue Sealing Depth	2-15 mm
Transmition Speed	0-48 m/min
Dimension	1200030003100 mm (single system)
Dimension	1300030003100 mm (double systems)

Introduction

For mode II: using two independent sealant supply systems, two fast switch, one-button operation.
Adopt KINCO Servo Control System, the performance is stable, surface with high smoothness.

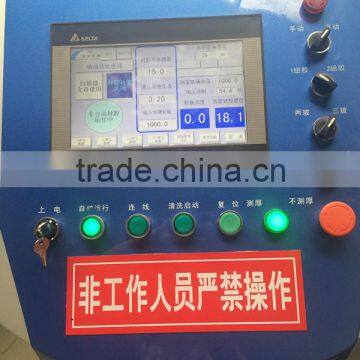

User-friendly interface, Easy operation.
The automatic alarm device, find the faults timely and immediately remove. / Equipment with glue quantity warning system, remind to change glue bucket.
Detecting the glass size and thickness automatically, adjusting the position of ‘V’ conveyor accurately and guarantees the same working height.
Adopt proportion hydraulic pressure control system, to assure the speed and the glue supply stably.
Aiming at system and beautifying angle of glass automatically, ensure the insulating glass more aesthetic.
Imported SMC air cylinder for glue supply system assures the stability of glue supplying.
Hydraulic System for secondary pressure, the effect significantly, to ensure high-speed coating.

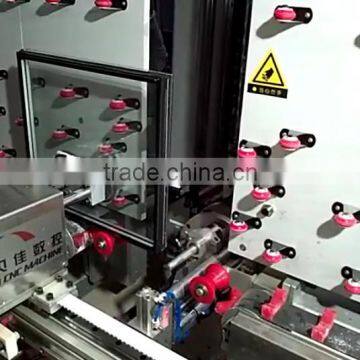

Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean, V type block is changeable, automatically adapts to the glass thickness. / The special “V” synchronous conveyor, ensure the transmition steadily and no pollution.
All separate function can be set to manual, easy adjustment.
Processing double glass and triple glass.
