Specifications
1.300L-2000L water tanks2.1 ,2and 3 layer
3.PE/HDPE water tank macking machine
Professtional Service
2000L triple layers water storage tank making machine ( 3 layers)
| Technical specification | ||||
| SKJ2000L ONE LAYER | SKJ2000L DOUBLE LAYER | SKJ2000L THREE LAYER | ||
| Max. product volume | L | 2000 | 2000 | 2000 |
| Screw diameter | MM | 140 | 120 | 110 |
| Screw L/D ratio | L/D | 30:1 | ||
| Screw drive power | KW | 132 | 90 | 90 |
| Screw heating capacity | KW | 30 | 40 | 60 |
| Screw heating zone | ZONE | 9 | 14 | 21 |
| Output | KG/H | 360 | 480 | 500 |
| Oil pump drive power | KW | 45 | ||
| Clamping force | KN | 1400 | ||
| Mould open space | MM | 3200 | ||
| Mould thickness | MM | 1220 | ||
| capacity | L | 70 | ||
| Die head capacity | KW | 40 | 45 | 48 |
| No. of heating zone | ZONE | 5 | ||
| Die head material | 38 CRMOALA(accumulator,lining,piston,die) | |||
| Control action | MITSUBISHI PLC | |||
| Blowing pressure | MPA | 0.6 | ||
| Cooling water pressure | MPA | 0.2 | ||
| size of machine | MM | To be confirmed | To be confirmed | To be confirmed |
| Weight of machine | MT | 28 | 33 | 36 |
Main Unit
LOW-VOLTAGE APPARATUS |
LG(KOREA) |
PNEMATIC |
AIRTAC(TAIWAN) |
HYDRAULIC COMPONENT |
YUKEN(JAPAN) |
SEAL |
DICHTOMATIK(GERMANY) |
OLI MOTOR |
SIEMENS |
SCREW MOTOR |
SIEMENS |
PROXIMITY SWITCH |
OMRON(JAPAN) |
PLC |
MITSTUBLISH |
TOUCH SCREEN |
WEINVIEW(TAIWAN) |
WALL THINKNESS CONTRAL SYSTEM |
MOOG(JAPAN) |
FREQUENCY CONVERTERS |
ABB/LG/MITSUBISH |

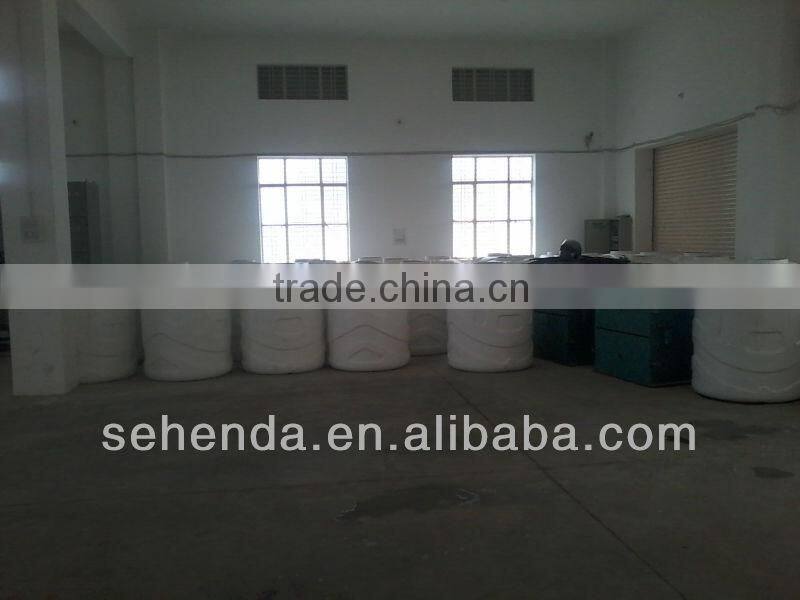

1. Appliction: For PE or HDPE 3 layers water tank from 200L-2000L.
also can be used to produce pallet, waste bin, road barrier, septictank,and so on.
2. Mainpower: 380V electric power and 2 workers are enough for the whole production line, even both are female, and two weeks training are free of charge.
3. Output:6-8pcs for 2000L 3 layer tank per hour, with weight 35-40kg, also the weight and thickness can be adjusted by 100% Moog wall thickness control system from 1mm to 10 mm.
4. Training: Our engineer and interpretor will be your factory to train your workes for 2 weekes
5. Certificate: CE, ISO9001:2008.
6. Main Markets: Asia, South Amereica,India and Indonesia, etc.
