Double Glass Sealant Sealing Machine
US$ 45,181 - 51,205
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
0-48 m/min
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Insulating Glass Making MachineUS$ 21,084 - 27,108MOQ: 1 Set -
WBX2500 Horizontal Glass Washer and Drying Machine for Tempering GlassUS$ 15,600 - 16,600MOQ: 1 Set
-
Double Glass Butyl Extruder MachineUS$ 3,464 - 7,831MOQ: 1 Set
-
Certificate Vertical Flat Pressing Double Glass Making MachineUS$ 31,579 - 39,098MOQ: 1 Set
-
Vertical Insulating Glass Automatic Production LineUS$ 31,627 - 39,157MOQ: 1 Set
Condition
New
Production Capacity
0-48 m/min
Place of Origin
Shandong, China
Brand Name
beijia CNC
Model Number
FJX-2000
Voltage
380V
Power(W)
13 kw
Dimension(L*W*H)
11000*3000*3100 mm
Weight
3260kg
Certification
ISO9001
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Insulating Glass CNC Sealant Sealing Robot
Product Description
Double Glass Silicone Sealing Machine Line with Double Systems
Equipment Configuration
Parameter
| Model | FJX 2000 |
| Motor Power | 380V 50Hz 13 kw |
| Max Glass Size | 2000*2500 mm |
| Min Glass Size | 400*350 mm |
| Single Glass Thickness | 3-12 mm |
| Double Glass Thickness | 12-60 mm |
| Glue Sealing Speed | 12-30 m/min |
| Glue Sealling Width | 6-24 mm |
| Glue Sealing Depth | 2-15 mm |
| Transmition Speed | 0-48 m/min |
| Dimension | 10000*3000*3100 mm (single system) |
| 11000*3000*3100 mm (double systems) |
Introduction
- For mode II: using two independent sealant supply systems, two fast switch, one-button operation.
- Adopt KINCO Servo Control System, the performance is stable, surface with high smoothness.
- User-friendly interface, Easy operation.
- The automatic alarm device, find the faults timely and immediately remove. / Equipment with glue quantity warning system, remind to change glue bucket.
- Detecting the glass size and thickness automatically, adjusting the position of ‘V’ conveyor accurately and guarantees the same working height.
- Adopt proportion hydraulic pressure control system, to assure the speed and the glue supply stably.
- Aiming at system and beautifying angle of glass automatically, ensure the insulating glass more aesthetic.
- Imported SMC air cylinder for glue supply system assures the stability of glue supplying.
- Hydraulic System for secondary pressure, the effect significantly, to ensure high-speed coating.
- Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean, V type block is changeable, automatically adapts to the glass thickness. / The special “V” synchronous conveyor, ensure the transmition steadily and no pollution.
- All separate function can be set to manual, easy adjustment.
- Processing double glass and triple glass.

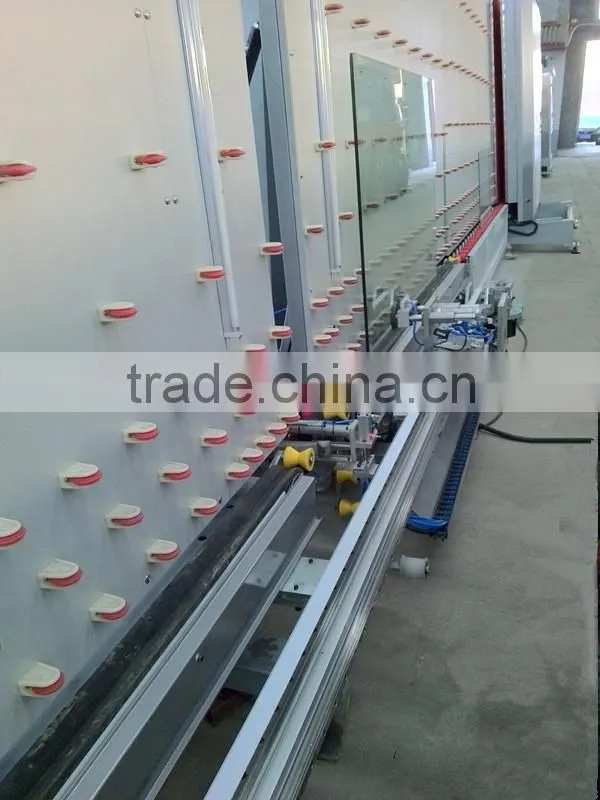

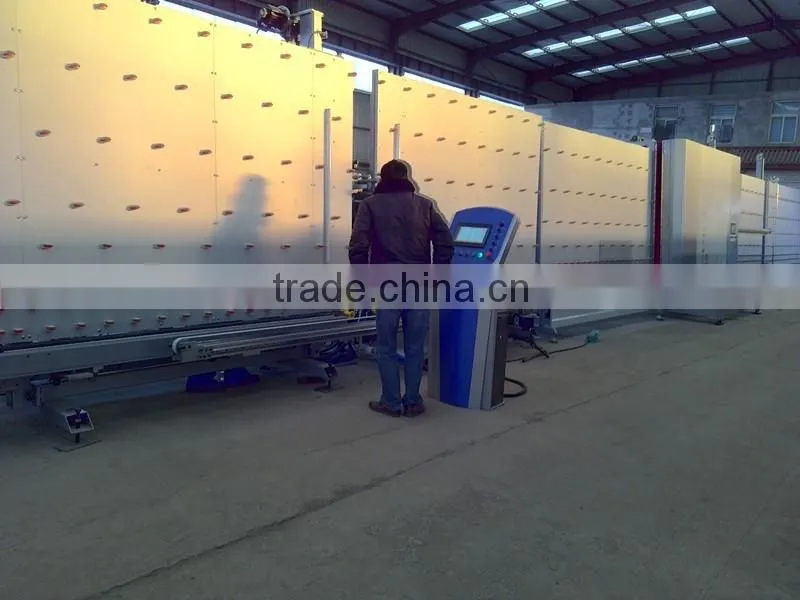

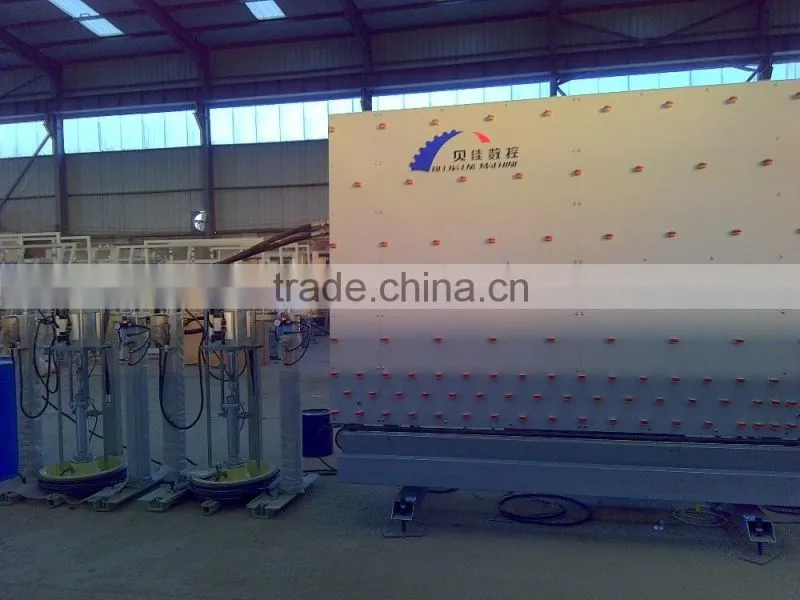

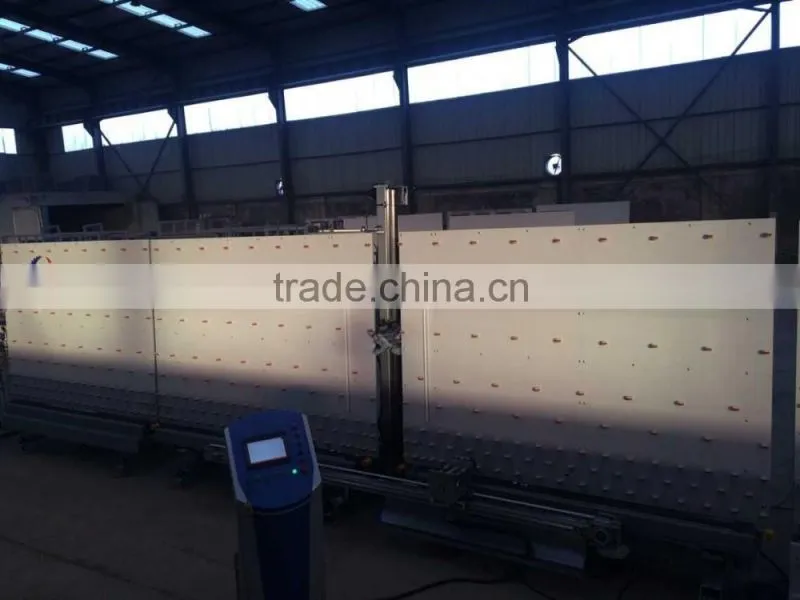

Details Pictures

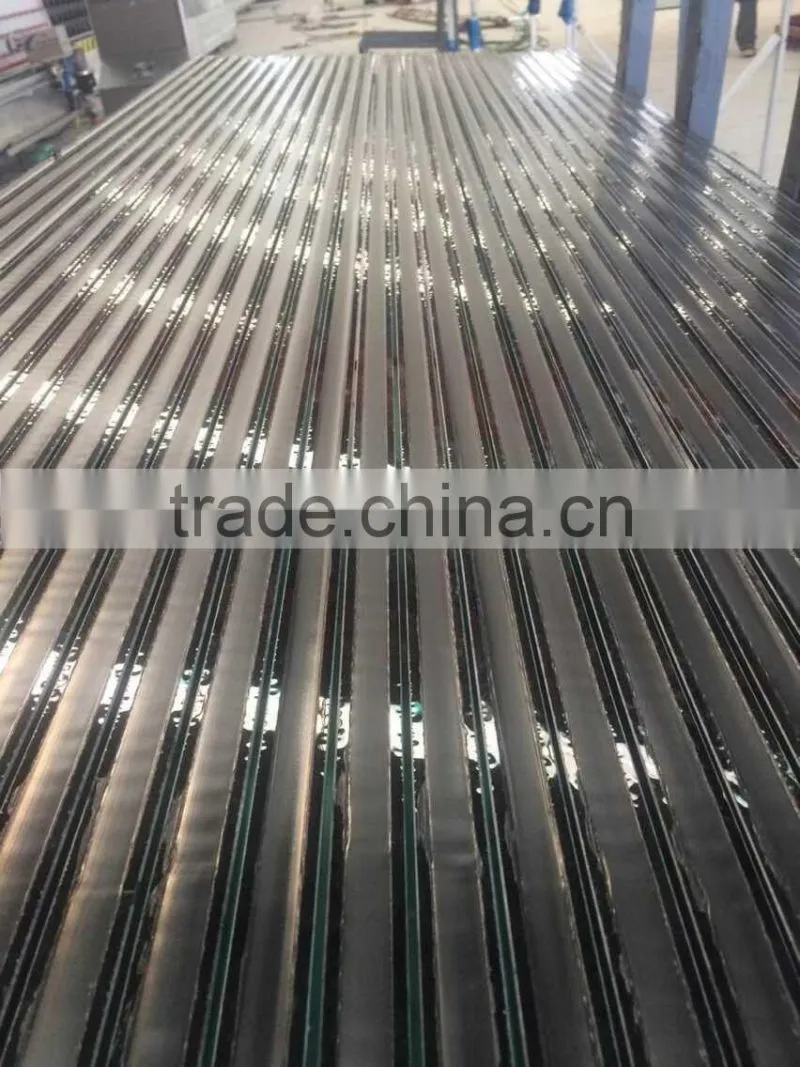

Finished Double Glass From Our Customers

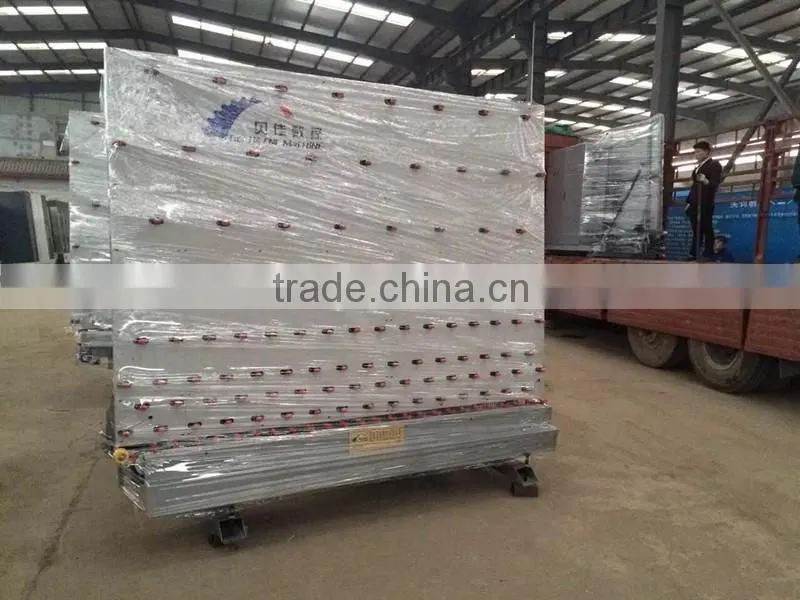

Packaging & Shipping
Company Information
Jinan Beijia CNC Equipment Co.,Ltd, is a high-tech enterprises integrating professional design, research and development ,production and sales for insulating glass machine line, insulating glass sealant sealing machine line, and accessory equipment. And machines for making aluminum & pvc windows and doors.
