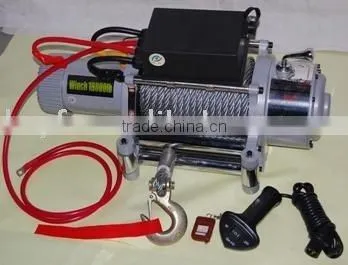

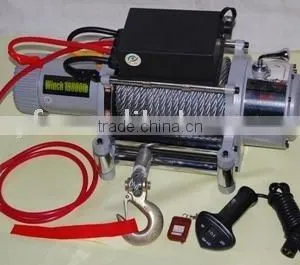

Electric Winch 16800 LBS; EW001

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

OEM

Model Number:

EW001

Kunshan Yuanfengrun Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name OEM

Model Number EW001

Specifications

electric winch
High quality goods
best service
small quantity accepted

electric winch

Line speed and Motor current [first layer]			Line pull and cable capacity
Line pull LBS.<Kgs>	line speed FPM.<MPM>	Motor <Amps>	Layer of cable	Rated line Pull Lbs<Kgs>	Total Rope on Drmt Ft<M>

0<0>	23.94ft<7.30>	75	1	16800<7630>	16.64<5.1>
2000<907>	12.27ft<3.74>	106	2	13779<6260>	37.78<11.5>
4000<1814>	9.38ft<2.86>	167	3	11202<5091>	63.40<19.3>
6000<2722>	7.41ft<2.26>	195	4	9358<4250>	82.01<26.0>
8000<3628>	6.16ft<1.91>	246
10000<4536>	5.18ft<1.58>	283
12000<5443>	4.46ft<1.36>	340
16800<7630>	3.0ft<1.01>	450

Single Rated Line Pull		Rated Line Pull: 16800 lbs. (7630 kgs )
Motor:		12V 5.5hp/4.0kw, Series Wound
Control:		Remote switch, 12' (3.7m) lead
Gear reduction ration:		323:1
Gear Train:		3-Stage Planetary
Clutch:		Flexible opertion,water-resisten
Brake Action:		Automatic in-the-drum
Drum Size:		Φ85mm x L 223mm
Cable:		Φ12mm x L 26m
Fairlead:		4-Way Roller Fairlead
Remote Control:		Included
Battery Leads		2 gauge, 72inch (1.83m)
Recommended Battery		650 CCA minimum for winching
Finish		Dark Grey powder coat
Overall Dimensions		590mm x 252mm x 280mm
Weight :		N.W. 50KGS G.W. 53KGS
Packing size		685mmx325mmx330mm
