Place of Origin Zhejiang, China
Brand Name HT
Model Number ZCF-250

Specifications

natural gas filling stations
1) Capacity: 5-250M3
2) Pressure:0.8,1.6,2.2,2.5Mpa
3) Meidum: LO2,LN2,LAr,LCO2,LNG,LPG



natural gas filling stations

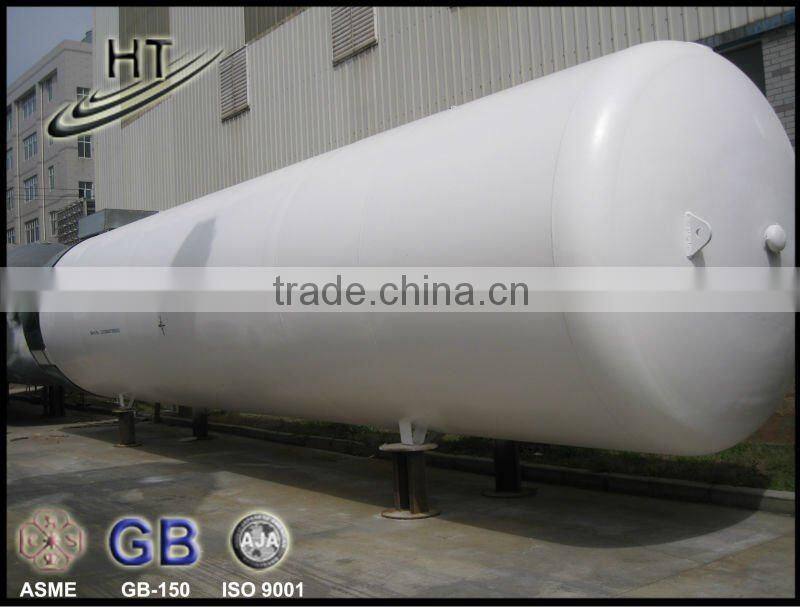

1. Product specification-Cryogenic liquid argon storage tank

Product model-ZCF-10000/16

General technical parameters

1.Valid capacity                                                             10m3

2.Geometrical capacity                                                 10.52m3

3.Max. Operating pressure                                          1.57MPa

4.Main material(inner vessel/outer barrel        0Cr18Ni9/Q235-B

5.Heat insulating mode                                         Vacuum powder

6.Medium                                                                      LO2

7.Externality dimension                                 ~φ2416×5797mm

8.Weight                                                                 ~7376kg

temp(inner vessel/outer barrel )            +40/-196°C

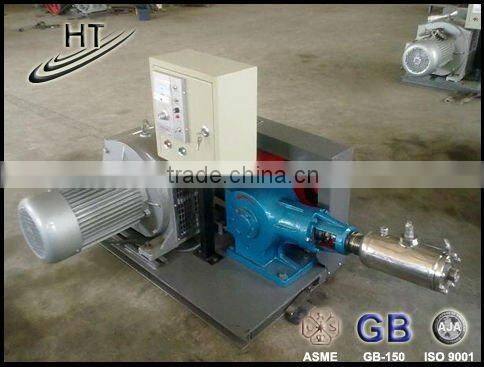

2 .Product specification-Cryogenic liquid Pump



Product model-BP-150~450/250



General technical parameters



Medium                    Liquid oxygen. Liquid nitrogen. Liquid argon



Model                                   Horizontal, Single Cylinder, Piston Pump



Flux                                    150~450L/h



Max Outlet Pressure      25.0Mpa



Max Inlet Pressure         1.6Mpa



Min Inlet Pressure         0.05Mpa



Power Supply                  380V 50HZ



Lube                                Engine Lube



Rotate Direction          Counter-clockwise at flywheel side







3.Product specification-Air Heated Vaporizer



Product model-QQ-400/250



General technical parameters



1. Capacity                                                             400Nm3/h



2.Max Outlet Pressure                                          25.0Mpa



3.Medium                                                               LAr(LN2,LO2)



temp                                                  -196°C



5.Main material                                              0Cr18Ni9 and LF21



6.Weight                                                          ~  860kgs



7.Dimension                                                ~2050*1500*2700mm

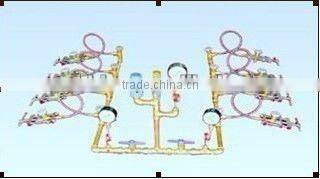

4 Product specification:-Filling Device      1SETS



Product model-GC-24



General technical parameters



1.Model                                                           GC-24



2.Max Working pressure                          25.0Mpa



3.Num of Filling Device                                 12×2



4.Medium                                                 Ar(N2.O2)

natural gas filling stationsnatural gas filling stationsnatural gas filling stations



 natural gas filling stationsnatural gas filling stations
