Specifications
Hot Compact Screw Compressor1.Excellent quality
2.Type:JMS-10A
3.Delivery:45 days after receiving deposit
Hot Compact Screw Compressor
Part 1.Main Parameters:
Specifications |
Type |
Power (KW) |
Rotating Mode |
Air discharging(M3/MIN) |
Size(MM) |
Weight(KG) |
Working Pressure |
10HP |
JMS-10A |
7.5 |
Belt |
1.1 |
890*630*920 |
240 |
0.8MPA |
15HP |
JMS-15A |
11 |
Belt |
1.53 |
1066*856*1125 |
450 |
0.8MPA |
20HP |
JMS-20A |
15 |
Belt |
2.4 |
1066*856*1125 |
470 |
0.8MPA |
30HP |
JMS-30A |
22 |
Direct Belt connection |
3.56 |
1050*900*1150 |
650 |
0.8MPA |
50HP |
JMS-50A |
37 |
Direct Belt connection |
6.26 |
1180*100*1310 |
1060 |
0.8MPA |
75HP |
JMS-75A |
55 |
Direct connection |
10.1 |
1666*1336*1695 |
1900 |
0.8MPA |
100HP |
JMS-100A |
75 |
Direct connection |
12.7 |
20445*1250*1705 |
1820 |
0.8MPA |
Part 2.Features of this Units
1.Adopting the efficient belt pulley rotation mode,driving the main engine to compress air,refrigerating the compressed air through the oil injection.The air and oil-mixed gases discharged from the main engine separated through rough and refined processes,and the separates the oil from the compressed air,and finally get the pure compressed air.
2.We products have the features of realiable performance,and simple operation process,small vibration,lower noises,less consumable parts,high working effiency,great power balance, and suitable for low voltage big flow occasion.
Part 3.Applications & Advantages
- Reasonable weight center and optimal foot bolt location to reduce the vibration and noise.
Screw Air compressors are used for lubricant-free compression of different gases, such as nitrogen, hydrogen, helium, argon, ethylene, NF3, hydrosulphide, chlorine gas, oxygen, monomial etc., as well as for gas mixtures. They can be used for filling of storage vessels, for feeding into continuous processes or as gas circulating compressors.
Screw compressor is mainly be used for the refrigeration,transportation,air-conditional and chemical industry with their unique and advanced features such as :easy to operate,small vibration,lower noise,less fragility,high effiency of working,good balance,and adaptability,which is suitable for low pressure and large flow.

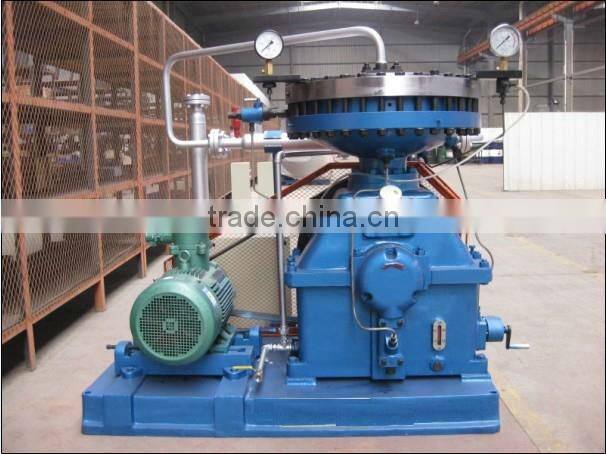

Part 4.Picture of this unit
Please Feel Free to Contact US at Any Time!
