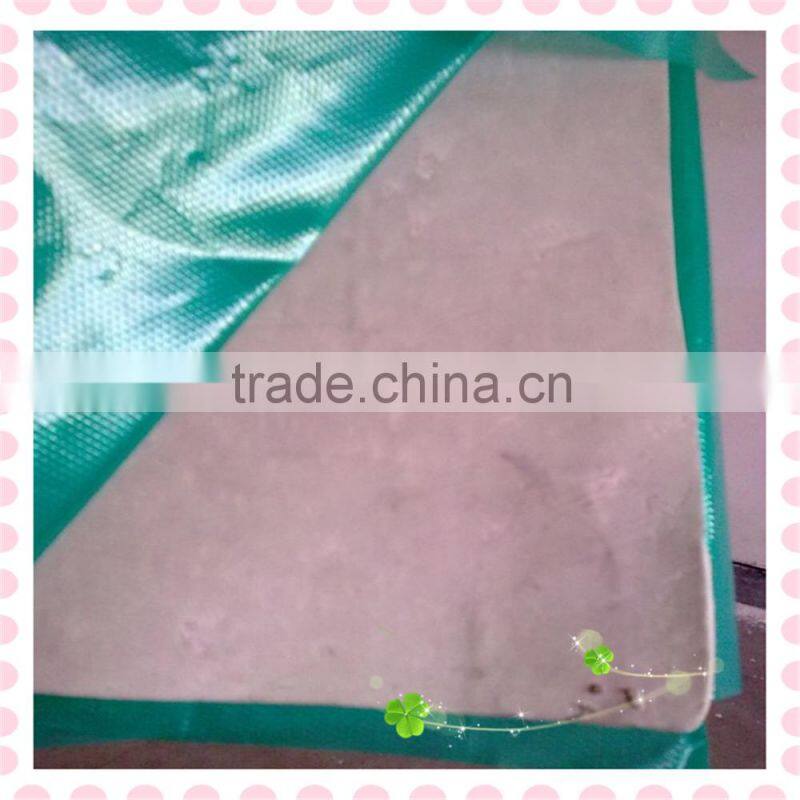

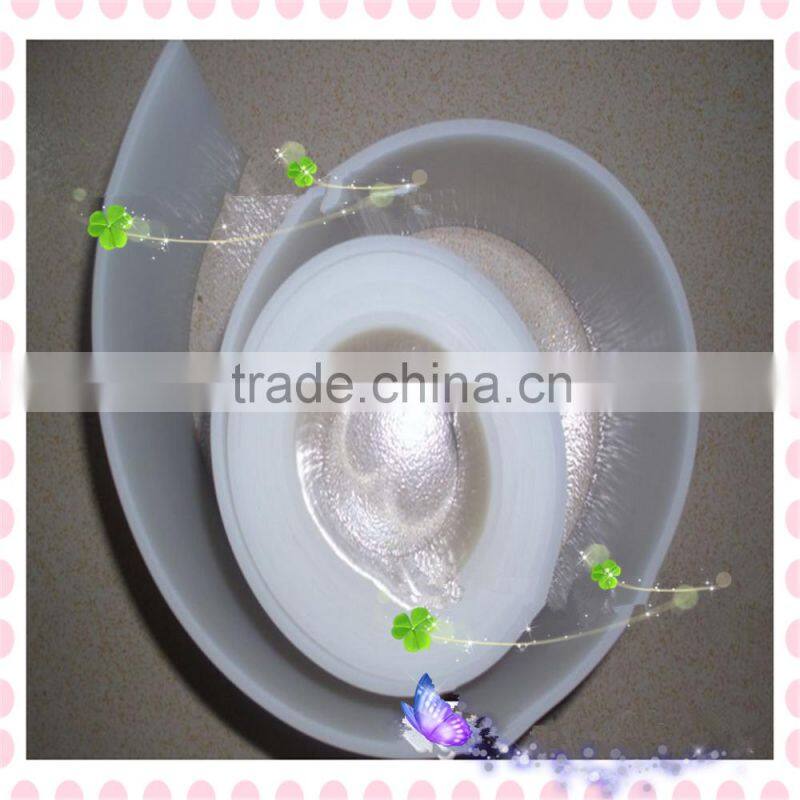

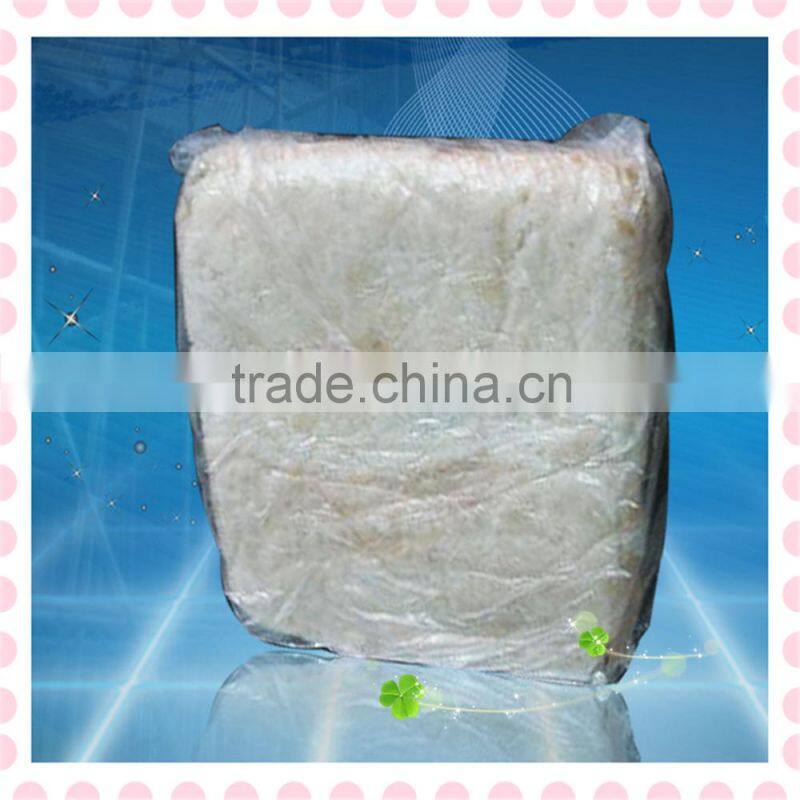

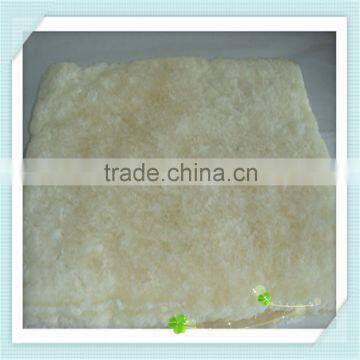

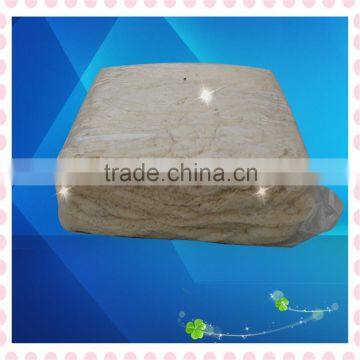

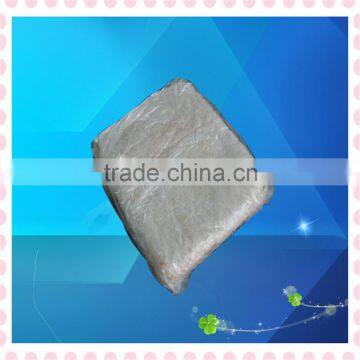

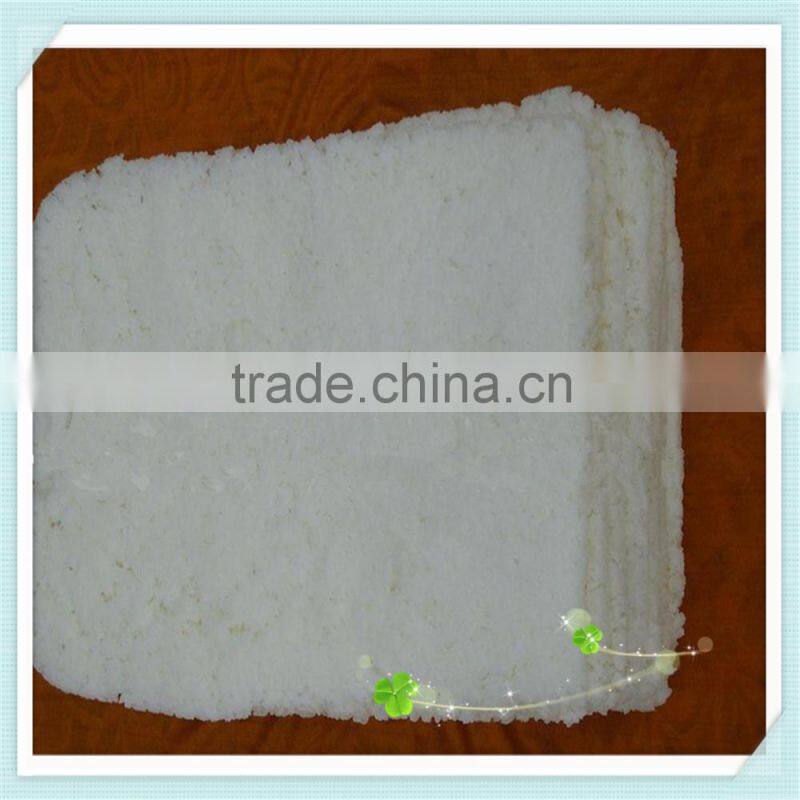

acrylate rubber acrylic rubber ACM rubber compound
- 1000 Metric Ton / Metric Tons per Month
- ANY PORT OF CHINA
- T/T
You May Like
-
Carboxyl nitrile rubber carboxylic acrylonitrile butadiene rubber /carboxy terminated nitrile rubber XNBR Mixing rubber XNBR
-
Ethylene acrylate rubber (AEM) mixing rubber
-
Reclaim Rubber Natural Butyl rubber NBR Pure for truck tires
-
high styrene butadiene rubber high styrene rubber styrene rubber
-
Multicolored natural recycled raw granulate crumb epdm rubber granule prices
-
Multi functional cheap recycled sbr rubber granules price
Product Details
Place of Origin | Liaoning, China | Brand Name | DLBN | |
Model Number | ACM |
Product Description
Product description:
Acrylate rubber referred to as "ACM, predominantly acrylate monomers by copolymerization of elastomer, its main chain is saturated carbon chain, side base for polar ester base.Special structure to endow them with many excellent characteristics, such as heat resistance, ageing resistance, oil resistance, ozone resistance, resistance to ultraviolet radiation and other performance;Mechanical properties and processing performance is better than that of fluoro rubber and silicone rubber;The heat oxygen aging and oil resistance than NBR.
Specification :
Formulation number | ACM-50 | ACM-60 | ACM-70 | ACM-80 | |
PHYSICAL PROPERTIES | Hardness (Shore A ) | 50±5 | 60±5 | 70±5 | 80±5 |
Tensile strength MPa | 8.5 | 10.0 | 11.5 | 12.5 | |
elongation at break % | 300 | 350 | 300 | 150 | |
brittleness temperature℃ | -30 | -30 | -30 | -30 | |
The compression permanent deformation (150℃*72h)% | 6 | 7 | 8 | 10 | |
hot air aging(150℃*72h) | |||||
Hardness changes (shore A) | +3 | +3 | +3 | +3 | |
Rate tensile strength change MPa | +2 | +2 | +2.7 | +0.5 | |
Elongation at failure % | -19 | -18 | -13 | -17 | |
Determination of resistance to liquids100℃*72h) | |||||
1 # standard oil, the volume change rate % | +2 | +2 | +1 | +1 | |
3 # standard oil, the volume change rate % | +10 | +8 | +8 | +8 |
Scope of application:
Auto industry: shaft seals, before and after the crankshaft, handles, small gear, speed, transmission shaft joint, the lid of the servo oil seal, etc;Transmission of piston seal and seal vertical clutch and gearbox manual lever;Stem seal, o-ring, oil pan gasket, sealing, roller bearing dust cover slide, pneumatic brake control seal.Electrical insulating products: electric ignition cable, spark plug cover, radiator pipe hose, etc.Other products can be used for high pressure power cable, the sheath of underground buried cables, electrical parts of rubber roller, transmission belt, rubber hose and so on.
