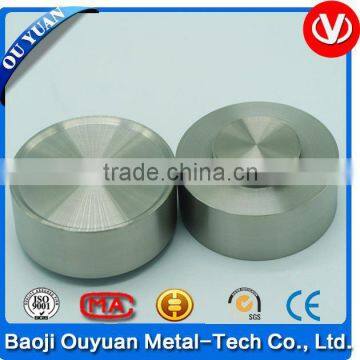

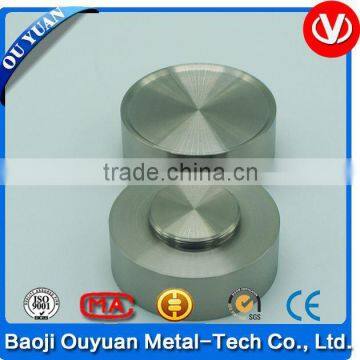

Gr3 Titanium Aluminum Alloy Shuttering Target

US$ 15 - 40 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Model Number:

gr3 titanium aluminum alloy shuttering target

Baoji Oyuan Metal-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name OY

Model Number gr3 titanium aluminum alloy shuttering target

Application industry

Technique polish

Dimensions as your need

Grade GR1,GR2

Powder Or Not Not Powder

Ti Content (%) ≥99.5%

gr3 titanium aluminum alloy shuttering target

gr3 titanium aluminum alloy shuttering target

Item	Product name	Manufacturing method	Product size	Relative density
1	Chromium Target	hot isostatic pressing(HIP)	maximum size1200*250mm	>99.0%
2	Titanium Target	smelting	maximum size500*300mm	>98.0%
3	Niobium Target	hot isostatic pressing(HIP)	maximum size1200*250mm	>98.0%
4	Cr-Al Target	hot isostatic pressing(HIP)	maximum size1200*250mm	>98.0%
5	Ti-Al Target	hot isostatic pressing(HIP)	maximum size1200*250mm	>99.0%
6	Si-Al Target	hot isostatic pressing(HIP)	maximum size1000*200mm	>99.0%
7	Cr-Si Target	hot isostatic pressing(HIP)	maximum size800*180mm	>96.0%
8	W-Ti Target	hot isostatic pressing(HIP)	maximum size800*180mm	>99.0%
9	Ni-Cr Target	The vacuum melting, forging and rolling	maximum size500*300mm	>98.0%
10	molybdenum alloy	hot isostatic pressing(HIP)	maximum size800*180mm	>99.0%
11	Tubulose Target	hot isostatic pressing(HIP)	Length<1.2m,Outside<300mm	>96.0%

gr3 titanium aluminum alloy shuttering target

Item	Product name	Purity	Grain size	Conventional proportions	Product Advantage
1	Chromium Target	99.5%-99.95%(2N5-3N5)	<100μm		High purity, high density, fine and uniform grain size, low oxygen content.
2	Titanium Target	99.5%-99.99%(2N5-4N)	<180μm
3	Niobium Target	99.5%-99.95%(2N5-3N5)	<100μm
4	Cr-Al Target	99.5%-99.95%(2N5-3N5)	<100μm	Cr-70Al,Cr-50Al,Cr-30Al(at%)
5	Ti-Al Target	99.5%-99.95%(2N5-3N5)	<100μm	Ti-30Al,Ti-50Al,Ti-67Al,Ti-70Al(at%)
6	Si-Al Target	99.5%-99.95%(2N5-3N5)	<50μm	Si-10Al,Si-30Al,Si-50Al (wt%)
7	Cr-Si Target	99.5%-99.95%(2N5-3N5)	<100μm	Cr-50Si(wt%)
8	W-Ti Target	99.5%-99.95%(2N5-3N5)	<100μm	W-10Ti(wt%)
9	Ni-Cr Target	99.5%-99.99%(2N5-4N)	<150μm	Ni-20Cr(wt%)
10	molybdenum alloy	99.5%-99.95%(2N5-3N5)	<100μm
11	Tubulose Target	99.5%-99.95%(2N5-3N5)	<50μm	Cr,Ti,Al,Nb,TiAl,SiAl,Mo alloy,CrAl,NiCr,CrTi,TiSi and so on.	Produce large aspect ratio, one-piece tubular target. Compared with planar targets, which has a uniform and fine grain size, high utilization of materials, coatings good continuity, uniform and dense coating composition and so on.
