Specifications
1.Name: Ball bearing drawer glides2.Material:steel
3.Finish:zinc, black
4.Thickness:1.0-1.4mm
5.Three Sections

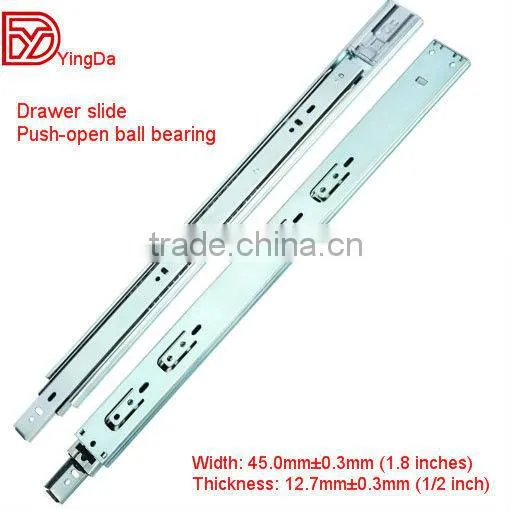

Ball Slide Bearing YD-HG410
You are now browsing 1-pair (1-Left & 1-Right) of 45KG load rating, YD-HG410 ball bearing drawer glides . These slides feature: Side-mounted design, positive stop, lever disconnect, and steel ball-bearing action that is remarkably smooth and quiet.
These ball bearing drawer glides are the same high quality with 45mm width which makes them ideal for upgrading kitchens.

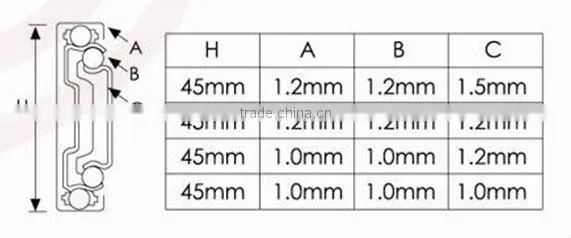

Only the A*B*C=1.2*1.2*1.5(mm) slide has 3 balls. Other slides are 2-ball type.
Actual Size:
Length: 300mm(12" )/350mm(14" )/400mm(16" )/450(18" )/500mm(20" )/550mm(22" )/600mm(24" )
Width: 45.0mm±0.3mm (1.8 inches)
Thickness: 12.7mm±0.3mm (1/2 inch)
Opening: Full extension/soft-closing
Load capacity: 45kg cycle test 50, 000 times
Sections: 3 sections
Ideal uses are in Office furniture, Cabinets, Closets, Kitchens,& Medical furniture. These zinc finished slides are made of high-grade steel, they meets or exceeds all BIFMA, BHMA, and ANSI standards for quality and has a lifetime replacement limited warranty.
We are your ideal supplier of ball bearing drawer glides, not because we use thin steel to keep our prices down but because of our high volume and low overhead we can simply manufacture high quality slides at a lower cost than the competition. If you see a lower priced slide, it is a lower quality slide.
For additional styles and sizes, Please visit website.
More ball bearing drawer glides for your choice
Name |
Item code |
Material |
Finish |
Height |
Thickness |
Soft-closing ball bearing slide |
YD-HG400 |
Work hardened cold rolled steel |
Blue zinc , Electrophoresis black , Black zinc |
45mm |
1.0*1.0*1.0/ |
Push-open ball bearing slide |
YD-HG410 |
||||
Three sections Ball bearing slide |
YD-HG310 |
||||
Ball bearing slide for side feet basket |
YD-HG451 |
1.2*1.2*1.4/ |
|||
Hanging and inserting type ball bearing slide |
YD-HG450 |
||||
Ball bearing slide for bottom pack hanging basket |
YD-HG453 |
1.2*1.2*1.4/ |
|||
Ball bearing slide for side pack hanging basket |
YD-HG452 |
1.2*1.2*1.4/ |
|||
Three sections Ball bearing slide |
YD-HG335 |
35mm |
1.0*1.0*1.0 mm |
||
Two sections Ball bearing slide |
YD-HG316 |
27mm |
1.0*1.0/ |
||
Soft-closing invisible extension slide |
YD-HG309 |
Blue zinc |
45mm |
2 styles (3sections and 2 sections) |
