Specifications
1.Name: Buy drawer slides2.Material:steel
3.Finish:zinc, black
4.Thickness:1.0-1.4mm
5.Three Sections

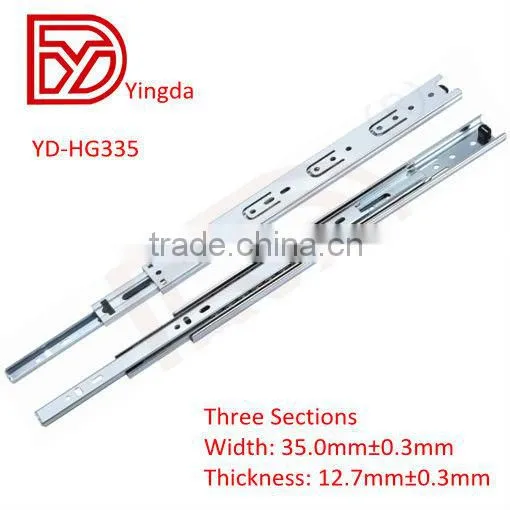

Buy Drawer SlideYD-HG335
You are now browsing 1-pair (1-Left & 1-Right) of 45KG load rating, YD-HG335 drawer slide guides ball bearing. These slides feature: Side-mounted design, positive stop, lever disconnect, and steel ball-bearing action that is remarkably smooth and quiet.
These drawer slides guides are the same high quality with 35mm width which makes them ideal for upgrading kitchens.

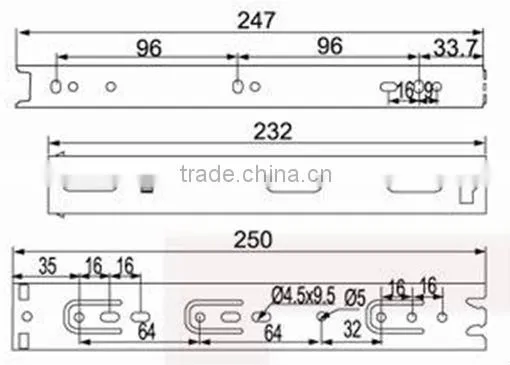

Actual Size:
Length: 250mm(10'')300mm(12" )/350mm(14" )/400mm(16" )/450(18" )/500mm(20" )/550mm(22" )/600mm(24" )
Width: 35.0mm±0.3mm (1.4 inches)
Thickness: 12.7mm±0.3mm (1/2 inch)
Opening: Full extension
Load capacity: 45kg cycle test 50, 000 times
Sections: 3 sections
10'' Drawer slide
12'' drawer slide
For More information of the drawer slides, please feel free to contact.
Ideal uses are in Office furniture, Cabinets, Closets, Kitchens,& Medical furniture. These zinc finished slides are made of high-grade steel, they meets or exceeds all BIFMA, BHMA, and ANSI standards for quality and has a lifetime replacement limited warranty.
We are your ideal supplier of drawer slides guides, not because we use thin steel to keep our prices down but because of our high volume and low overhead we can simply manufacture high quality slides at a lower cost than the competition. If you see a lower priced slide, it is a lower quality slide.
For additional styles and sizes, Please visit website.
More ball bearing drawer extension slides for your choice
Name |
Item code |
Material |
Finish |
Height |
Thickness |
Soft-closing ball bearing slide |
YD-HG400 |
Work hardened cold rolled steel |
Blue zinc , Electrophoresis black , Black zinc |
45mm |
1.0*1.0*1.0/ |
Push-open ball bearing slide |
YD-HG410 |
||||
Three sections Ball bearing slide |
YD-HG310 |
||||
Ball bearing slide for side feet basket |
YD-HG451 |
1.2*1.2*1.4/ |
|||
Hanging and inserting type ball bearing slide |
YD-HG450 |
||||
Ball bearing slide for bottom pack hanging basket |
YD-HG453 |
1.2*1.2*1.4/ |
|||
Ball bearing slide for side pack hanging basket |
YD-HG452 |
1.2*1.2*1.4/ |
|||
Three sections Ball bearing slide |
YD-HG335 |
35mm |
1.0*1.0*1.0 mm |
||
Two sections Ball bearing slide |
YD-HG316 |
27mm |
1.0*1.0/ |
||
Soft-closing invisible extension slide |
YD-HG309 |
Blue zinc |
45mm |
2 styles (3sections and 2 sections) |
