Specifications
WIILETT 630 Inkjet Printing Machine1.LCD screen
2.user-friendly design
3.easy operation
4.good printing effect

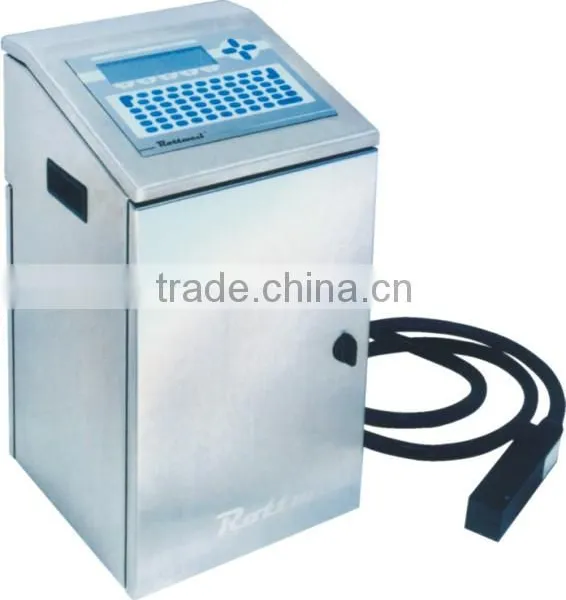

WIILETT 630 Inkjet Printing Machine
Introduction:
WIILETT 630 Inkjet Printing Machine brand was originated from England, which has been for 30years. Simple operations, convenient maintenance, excellent printing quality that can help you improve productivity to guarantee longer normal running time.
Main features:
Excellent stability: Advanced integrated design greatly reduces accidental shutdown that is unplanned, which guarantees long running time;
Excellent printing quality: Dynamic Calibration TM ensures all the printing quality in different conditions are the same.
Convenient maintenance and operation: integrated ink system design greatly reduces maintenance frequencies. Humanized operation interface to make operation information clearly. “i” shortcut key that used to do one key repair, which is quick and easy.
Technical Parameter:
Product Name: Videojet 630
Product parameter: Videojet 630
WIILETT 630 Inkjet Printing Machine
Liner Velocity
1-3 Coding line, the speeds can up to 150m/min(10 characters per inch, single line of print)
Product Details:
WIILETT 630 Inkjet Printing Machine
Liner Velocity
1-3 Coding line, the speeds can up to 150m/min(10 characters per inch, single line of print)
Optional Lattice
Single-line:5x5,5x7,7x9,12x16(for Chinese character)
TWO-line:5x5,5x7
Three-line:5x5,5x7
Nominal character height
Optional 2mm-7.5mm, depending on the front
Printing distance
The Best: 12mm
Range: 5 mm - 15 mm
Keyboard:Film type with tactile feedback, including 72 letters, numbers and special function keys. PC type layout is close to the international PC practice.
Display Screen: 320 x240 bright blue backlight 5.7 "LCD screen, The editing is what you see is what you get.
Customer logo/ pattern: Each user can be created on inkjet printer or computer.
Character Set: American English, Simplified Chinese
Language and interface options: English, Simplified Chinese
Information Storage: 100 complex information. Use USB unlimited storage. Standard USB with logo and memory backup function.
Protection Class: IP55; Stainless steel cabinet
Sprinkler Head: Heating nozzle. Diameter: 1.6”(41.3mm) ; Length:9.5”(241.0mm)
Pipes: Ultra-flexible; Length: 6.56 "(2 m); diameter: 0.91" (23 mm); Bending radius: 3.0 "(76.2 mm)
Ink solvent box: Intelligent ink cartridges: 0.793 qt (750 ml); Solvent intelligent cartridge: 0.793 qt (750 ml)
Temperature and humidity range: 41 ° F to 113 ° F (5 ° C - 45 ° C)
0-90% relative humidity (non-condensing)
Using the selected ink; Based on production environment conditions, the actual installation may require additional hardware.
Electrical requirements: Nominal power 100-120/200-240 VAC, 50/60 Hz, 120 W
About weight: Without packing and dry weight: 35.28 LBS. (16 kg)
Optional: Product testing, fault relay, Shaft encoder, beacon expansion board, 9.8 feet (3 m) umbilical cord cable, 60 or 70 microns nozzle

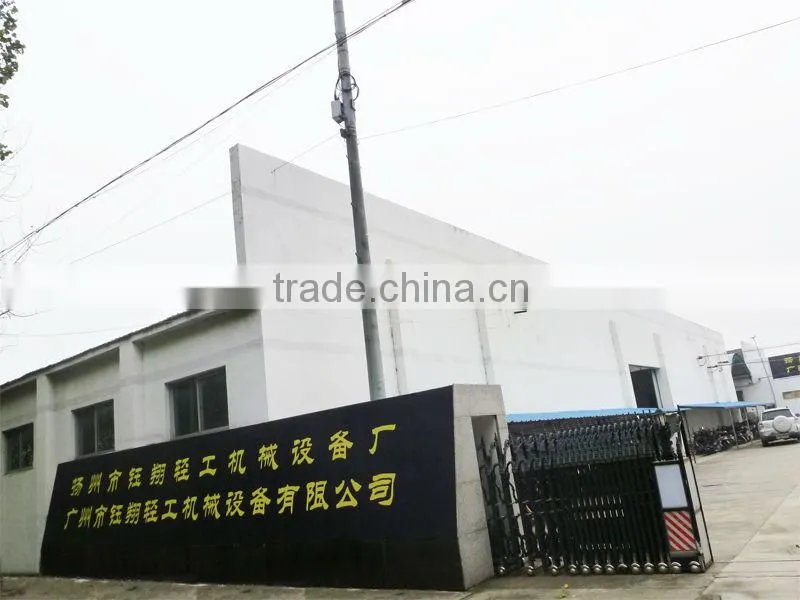

FACTORY
CERTIFICATED
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CNF.
