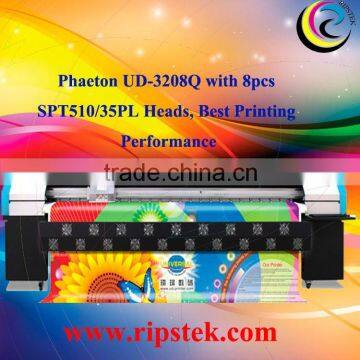

Help CenterPhaeton UD-3208Q Solvent Printer With SPT510/35PL Head
Related Products
-
ICONTEK TW-3308HD Large Inkjet Solvent Printer With SPT510/35PL HeadUS$ 1 - 8,900MOQ: 1 Set -
Solvent Ink for Crystaljet Solvent Printer SPT510/35/50PL HeadUS$ 9,900 - 12,800MOQ: 1 Set
-
Icontek Large Format Solvent PrinterUS$ 9,000 - 12,000MOQ: 1 Set
-
Crystaljet Inkjet Solvent Printer SPT510/50PLUS$ 9,900 - 12,800MOQ: 1 Set
-
Phaeton UD-3208Q Outdoor Flex Banner Inkjet Solvent PrinterUS$ 1 - 9,900MOQ: 1 Set
1, Equipped with 8 Seiko SPT 510-35PL print heads.
2, AC servo motor is used to run the carriage quicker and more stable.
3, Individual color cleaning minimizes the waste of the ink;
4,3 way intelligent heater (pre/print/post) helps bring more vivid output
Product Model |
UD-3208Q |
|
Printhead |
SPT510-35PL |
|
Number of Printhead |
8 Heads |
|
Maximum Print Width |
3200mm |
|
Output (m²/h) |
Print mode |
Standard Output (m²/h) |
360x360 1 pass |
101 |
|
240x720 2 pass |
76 |
|
240x1080 3 pass |
51 |
|
360x1080 3 pass |
34 |
|
720x720 4 pass |
26 |
|
Ink |
Type : |
Solvent Ink / Mild Solvent Ink |
Color : |
4 Colors( C , M , Y , K ) |
|
Capacity : |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System : |
Low Ink Detector, Auto or Manual Ink Supply System |
|
Media |
Width : |
3300mm |
Type : |
Vinyl,Flex,Polyester,Back-lit Film,Window Film,etc |
|
Auto Media Feeding System |
Equipped ( Max. Media Weight 80kg ) |
|
Auto Cleaning System |
Individual Positive Pressure Cleaning Anti-clogged Flash Function & Capping System |
|
Pre-heating & Drying System |
Equipped |
|
Clamp |
Equipped |
|
Print Interface |
USB |
|
Printhead Height |
2 to 6 mm Above Media Adjustable |
|
RIP Software |
Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera |
|
Input Power |
AC 220V ,50Hz/60Hz |
|
Machine Dimension |
L4600 x W820 x H1320 mm Net Weight : 482Kg |
|
Package Dimension |
L4650 x W970 x H1600 mm Gross Weight : 770Kg |
|
Operation Environment |
Temperature : 20degree-28degree Humidity : 40%-60% |
|
Our Services
1. We provide 24 months warranty for print boards and motors for our printers and online support
2. When you have some technical problems,please send detail description,photos or video,then our technician will give the resolution accordingly during 24 hours
3. There are completed English user manuals to guide you easily install ,operate and maintain the printer. It’s clear and easy to understand
4. Free training is availabe when you need it, you are welcome to our factory to obtain the skills. or we also send engineer to your company to make a training for your people
Mob&whatsapp: +86-18565287545 / +86-13480294053
Skype: cuihongjiang Wechat: 273442704
If you have any questions please do not hesitate to contact us
