Mechanical Motion Section:

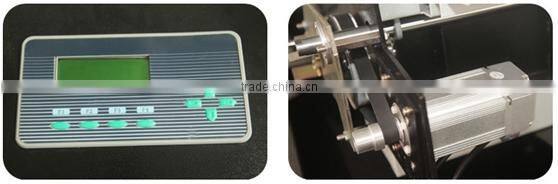

1. PowerfulLCD control panel bringsa user friendly interface.
2. Using high –quality imported spare parts such as Joint Sino-US Venture Servo motors, Hi-win Rails etc.

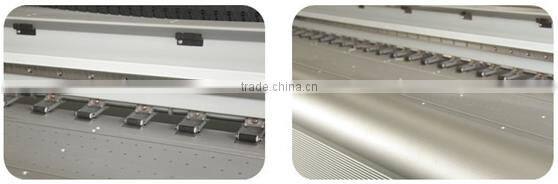

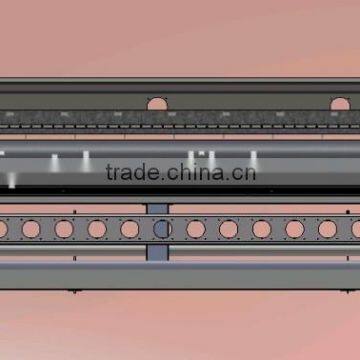

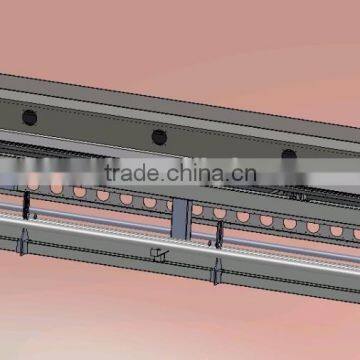

1. Strengtheness steel girder,high precision linear guide makesk every inkdots drop onto the right position and brings high resolution
2. Extra 50% media pressing system gives a precise feeding and flat media moving, increase printing resolution and decrease bandings

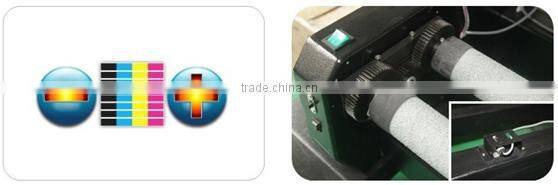

1. Alignment of bi-direction, feeding and moving speed of carriage can be adjusted while printing.
2. Infra-red sensor, automatic tension sensitive feeding system, Take up System Optional.

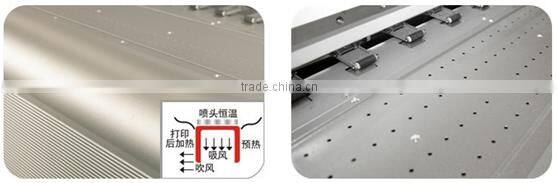

1. Tri heater system warms up media before and after printing,which improve absorbability of media and drying printing job, can enhance outdoor durability.
2. Built in vaccum hold down system ensures the flatness of media ,so as to protect the printhead and improves printing resolution.

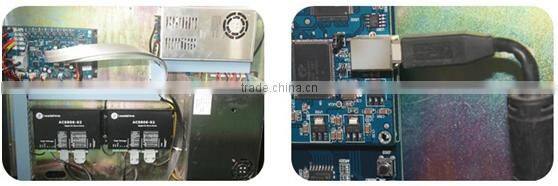

Electronic Control Section:
1. Double raster controlling system plus blank skipping function improves productivity and commercial benefit.
2. Adopt USB2.0 output system, faster and flexible .

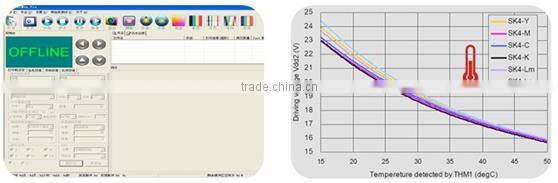

1. Powerful and user friendly RIP and excellent ICC profile system assures vivid and accurate color reproduction
2. Printhead voltage can change by temperature accordingly, with professional ink, fluent and stable printing is guaranteed.

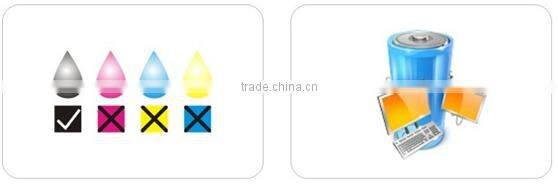

1. Black text job can be printed by 100% black ink and no need mix with other colors
2.Printing can be continued after unpurposive power off
Specification:
Model |
TW-3304HD/06HD |
TW-3308HD |
||||

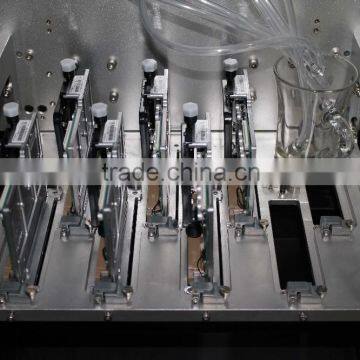

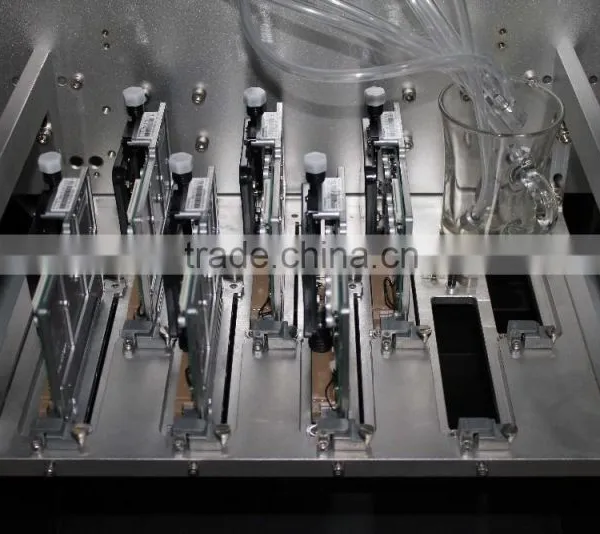

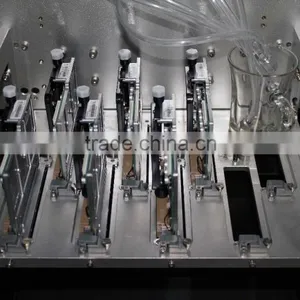

Printhead |
Instrument Group SPT Printhead From in Japan |
|||||
Number of printhead |
6heads |
8head |
||||
Number of model |
SPT-510/35PL |
SPT-510/35PL |
||||
Print Speed
|
Printing mode |
(Output ) m2/hr |
||||
High speed |
240*540dpi 3pass 52m2/hr |
240*540dpi 3pass 104m2/hr |
||||
Middle speed |
240*720dpi 4pass 39m2/hr |
240*720dpi 4pass 78m2/hr |
||||
Middle speed |
360*540dpi 6pass 36m2/hr |
360*540dpi 3pass 72m2/hr |
||||
Standard speed |
360*720dpi4pass 26m2/hr |
360*720dpi 4pass 54m2/hr |
||||
Maximum print width |
3.200mm(125.984inch) |
|||||
Ink |
Type |
Solvent ink |
||||
Color |
(C.M.Y.K.LC.LM)/(C.M.Y.K) |
|||||
Capacity |
5,000mm Per Main Tank of Each Color |
|||||

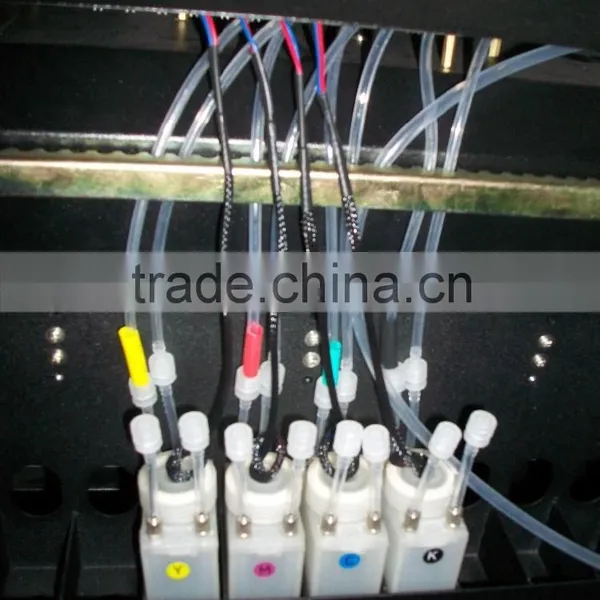

Ink supply system |
Low Ink Detector .Auto or Manual Ink supply System |
|||||
Cleaning Method |
Single color positive flush(with pressure protection), auto flushing & head moisturing |
|||||
Media |
Width |
Maximum 3,300mm |
||||
Type |
Vinyl ,window Film ,polyester, Flex, back-lit film ,etc |
|||||
Roll media or sheet media | ||||||
Auto Media Feeding System |
Equipped (Max, media weight 80kg) |
|||||
Auto cleaning System
|
Positive & Negative Pressure cleaning |
|||||
Anti -clogged Flash Function | ||||||
Pre –heat & Dry system |
Equipped (drying system optional) |
|||||
Clamp |
Equipped |
|||||
Print interface |
USB 2.0, Optical fiber |
|||||
Print head high |
2 to 4mm distance to the printing platform , adjustable |
|||||
RIP software |
Maintop, photoprint , ultraprint Optional. |
|||||
Input power |
AC 220V, 50HZ/60HZ |
|||||
Machine dimension |
L4,360mm*W790mm*H1,170mm |
|||||
Package dimension |
L4,470mm*W880mm*H1,340mm |
|||||
Working environment |
Temperature 200C~300C Humidity:40%~60% |
|||||
Contact Information:
Whatsapp: +86-18565287545/
Skype:cuihongjiang Wechat: 273442704
If you have any questions please let us know . We will offer you our best service !
