Specifications
solvent printer ud-3208p:
1.With Seiko 510/35pl printhead
2.Printing width 3.2 metres
3.Stable Technical,reach 720dp
UD-3208P
1, Equipped with Seiko 510/35 print head,resolution is 720dpi;

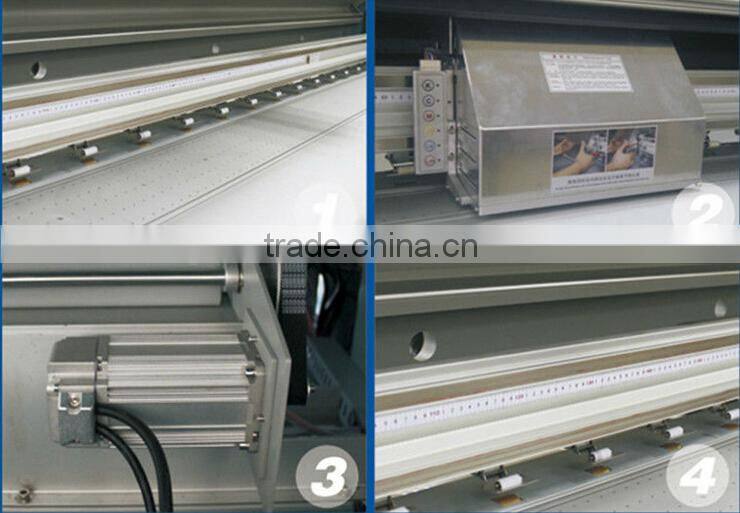

2, Full aluminum platform;
3, X,Y axis AC servo motors,high quality;
4, Bearing rail is stable and long durability;
5, USB2.0 high speed data port, ensure high speed and quality and long scale output printing.
Model |
UD-3208P |
|
|
Printhead SII Printek Inc |
SPT 510-35PL |
|
Number of Printhead |
8 Heads |
|
Number of Model |
SPT-510/35pl |
|
Printing Speed |
Printing mode |
Standard Output (m²/hr) |
Draft Model |
2PASS 76 m²/hr |
|
Standard Model |
3PASS 51 m²/hr |
|
Qualit Model |
4PASS 34 m²/hr |
|
High quality |
6PASS 26 m²/hr |
|
Maximum Printing Width |
3.200mm(125.984inch) |
|
Ink |
Type : |
Solvent Ink & ECO-Solvent Ink |
Color : |
Double 4 Colors(C,M,Y,K) |
|
Capacity : |
1L or 5L Per Main Tank of Each Color |
|
Ink Supply System : |
Low Ink Detector, Auto or Manual Ink Supply System |
|
Media |
Width : |
Maximum3,300mm(129.92’’) |
Type : |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc Roll Media or Sheet Media |
|
Thickness: |
4 mm(Max.) |
|
Heating System |
3 way intelligent heater |
|
Auto Media Feeding System |
Equipped(Max. Media Weight 80kg) |
|
Take-up System |
Equipped |
|
Auto Cleaning System |
Individual Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System |
|
Pre-heat & Dry System |
Equipped |
|
Clamp |
Equipped |
|
Printing Interface |
USB2.0 Cable |
|
Printhead Height |
2 to 6 mm from Media |
|
RIP Software |
Maintop(equip) , UltraPrint , PhotoPrint, Topaz, Wasatch,(optional) |
|
Input Power |
AC 220V, 50Hz / 60Hz |
|
Machine Dimension/N.W |
L4, 500 x W905 x H1,260mm / 348KG |
|
Package Dimension/G..W |
L4, 590 x W1,050 x H890mm / 591KG |
|
Operation Environment |
Temperature : 20°C~28°C Humidity : 40%~60% |
|
Technical support
Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on .
All kinds of spare parts for the machine of our sale to ensure your machine running smoothly .
The most important is we have a professional skill team to make sure the good technical support is always available for you .
WHY CHOOSE US ?
1. The advanced equipments and consumables products selection and considerate service are ensured and to bring you efficiency, productivity and a positive return on investment for years to come.
2. Comprehensive color management and profiling services, workflow optimization and customized training are offered. To ensure you're always fully functional, we have engineers right around the country to maintain and service your machines.
3. All the top brands spare parts, accessories and large inventories of consumables to keep your business running smoothly.
You are welcomed to be our dealer and grow together with RIPSTEK. Let's gain the biggest mutual benefit
Warranty:
Our printers have one year warranty.
Manual:
We have professional installation video and operation manual to teach you in stall the printer and operate it well .
Teams:
We have professional team to train you operate the machine well and to know the machine well. Welcome to our office in Guangzhou to have the free training.
Inventory:
We have original printer in stock in our Guangzhou warehouse.
All top famous brand spare parts and accessories to keep your business running smoothly.
Payment: West Union ,T/T
How to order?
Step1. After making every details clear with our sales , please confirm orders to us .
We will send you a proforma invoice ( PI). Need your informations , such as
full name , country , city , detial address , post code ,tax number , tel ...
Step2. Send payment T/T or West union accroding to the PI & send back us the proof .
We will delivery by fedex or DHL within 2 working days after payment confirmed .
Setp3. Confirm us receipt of products .
Mob&whatsapp: +86-18565287545 / +86-13480294053
Skype: cuihongjiang Wechat: 273442704
If you have any questions please do not hesitate to contact us
