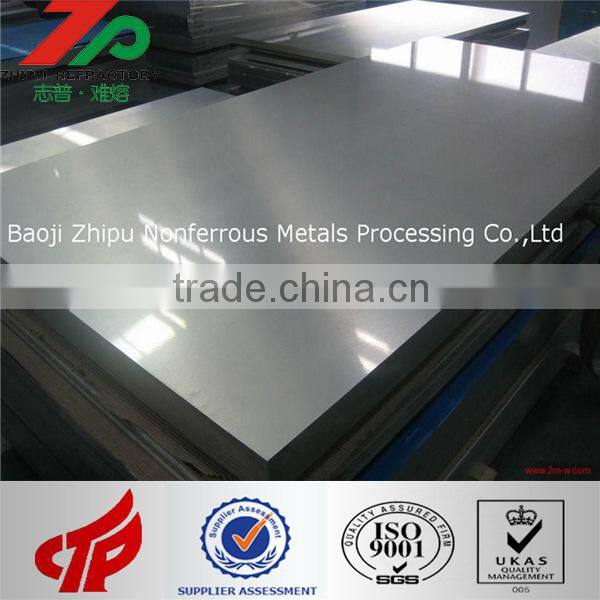

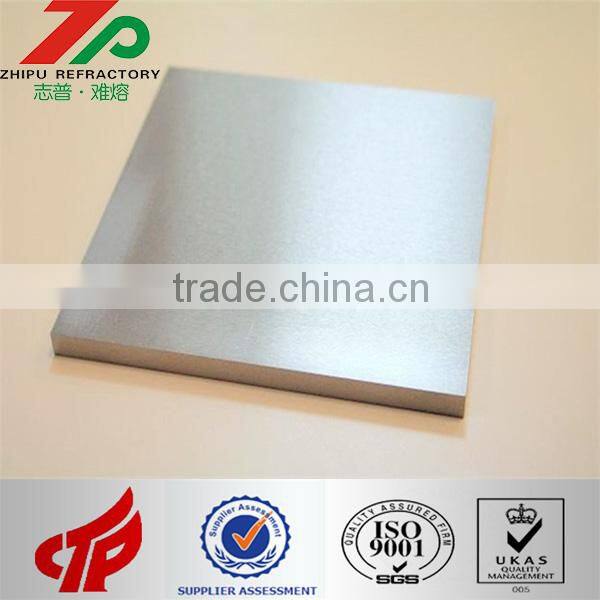

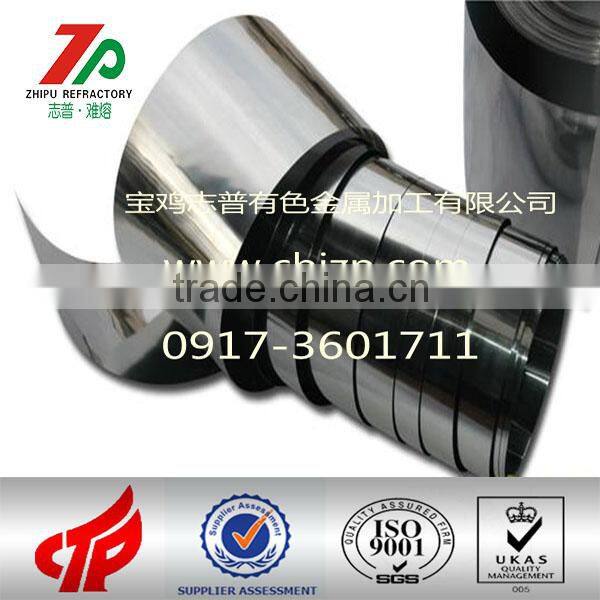

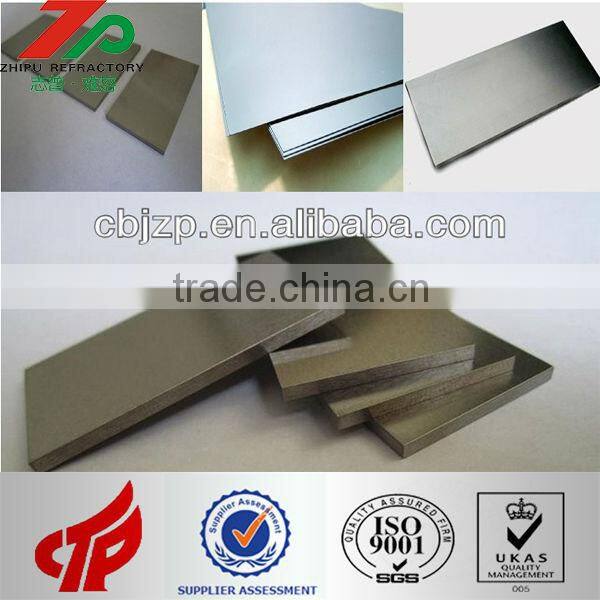

Molybdenum sheet
prodution information astm b386 molybdenum sheet
1.Material: Mo1
2.Dimensions:THK 1.0-30mm
3.purity: 99.96%
nics:hot rolled
5.Application:industrial
Molybdenum designation and condition
(Table1)
| Designation | Process | Delivery Condition | Size(mm) | ||
| Thickness | Width | Length | |||
| Mo1 | P/M | Cold rolld(Y) | 0.10-0.70 | 50-480 | 100-1500 |
| Stree relief annealing(m) | 0.10-0.70 | 50-480 | 100-1500 | ||
| Jmo1 | Hot rolled(Y) | >0.70-30 | 50-480 | up to 100 | |
| Stree relief annealing(m) | 0.10-0.70 | 50-480 | 50-80 | ||
(Table2)
| Thickness | Thickness tolerance | Width Tolerance | Length Tolerance | |
| Grade1 | Grade2 | |||
| 0.1-0.15 | 0.01 | ± 0.01 | ± 2 | ± 5 |
| >0.15-0.30 | ± 0.02 | ± 0.02 | ± 2 | ± 5 |
| >0.30-0.50 | ± 0.03 | ± 0.03 | ± 2 | ± 5 |
| >0.50-0.70 | ± 0.04 | ± 0.04 | ± 3 | ± 5 |
| >0.70-1.0 | ± 0.05 | ± 0.05 | ± 3 | ± 5 |
| >1.0-2.0 | ± 0.06 | ± 0.06 | ± 5 | ± 5 |
| >2.0-3.0 | ± 0.08 | ± 0.08 | ± 5 | ± 5 |
| >3.0-4.0 | ± 0.10 | ± 0.20 | ± 5 | ± 5 |
| >4.0-5.0 | ± 0.12 | ± 0.30 | ± 5 | ± 5 |
Production display
Technologic Process

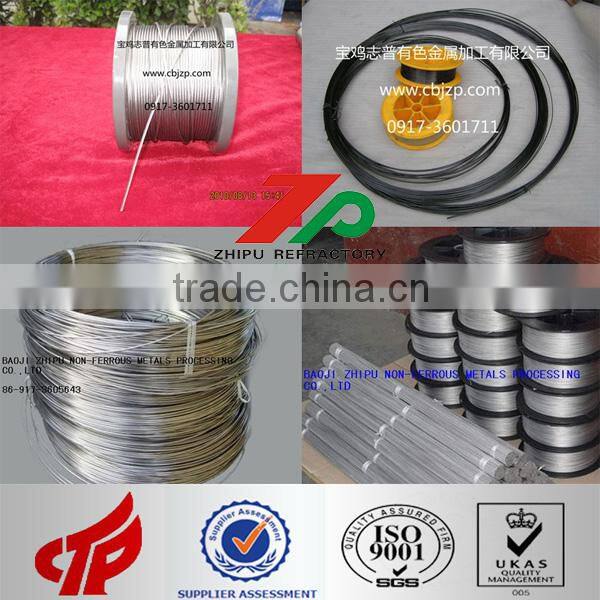

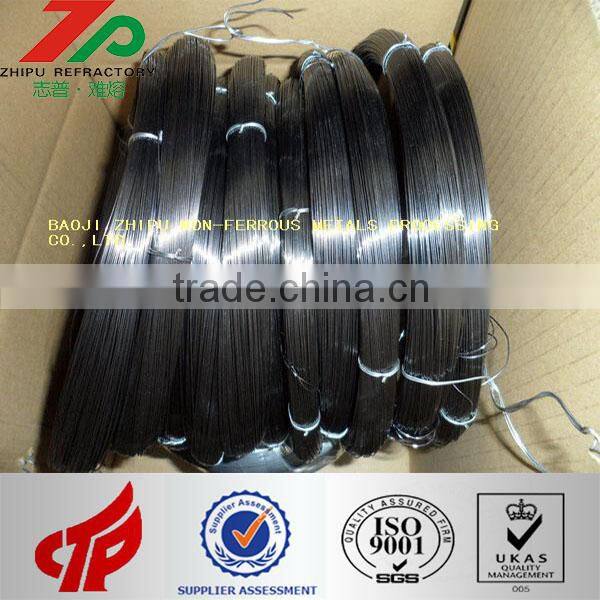

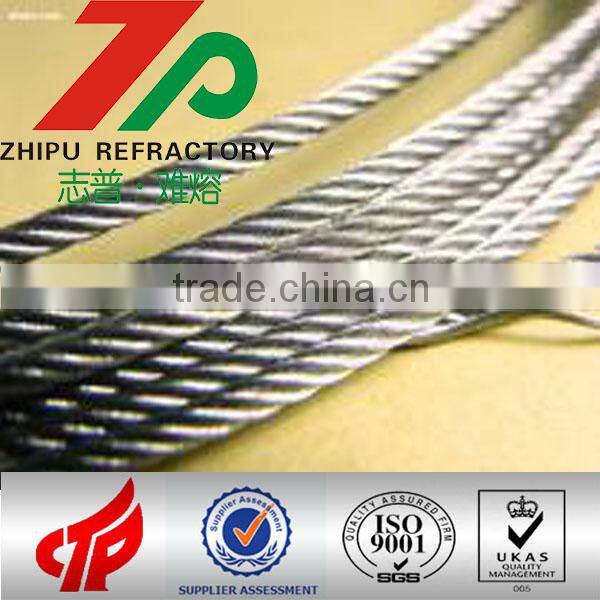

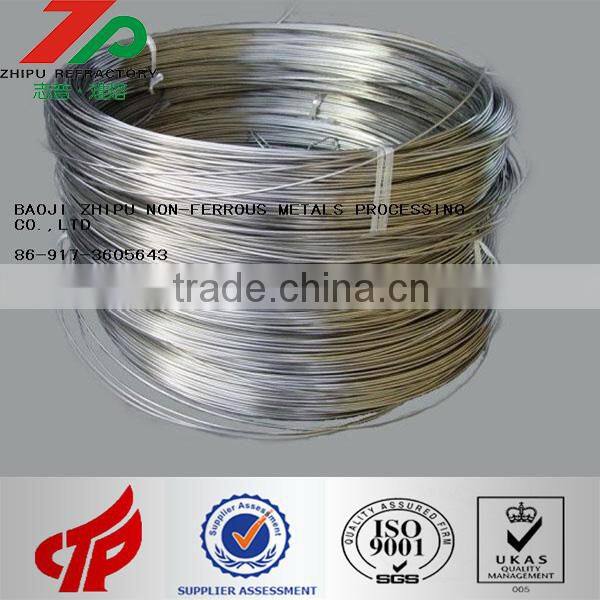

tungsten wire rope
duction information
| W1 Wire Purity | 99.95% |
| Density | >19.1g/cm3 |
| Flatness | <2% |
| Dimension | Dia1.0-3.0mm |
| Surface | electrolysis bright, bright, matt |
| Delivery time | 7-15 days |
| Application | Mainly used as electrical parts in light sources, cutting wires and heating elements. Spray moly wire is used for car fields |
| Grade |
W MIN % |
Total impurity content % min |
Each impurity content % min |
| WAL1,WAL2 | 99.95 | 0.05 | 0.01 |
| W1 | 99.95 | 0.05 | 0.01 |
| W2 | 99.92 | 0.08 | 0.01 |
duction display
3. Application of tungsten wire:
Mainly used as electrical parts in light sources, cutting wires and heating elements.
1) for making filaments for auto lamps, fluorescent lamps, high pressure halogen lamps.
2) for making other lamp components.
3) For production of filaments for lamps of coiled-coil or three-coiled incandescent lamp, fluorescent lamp, halogen lamp, auto lamp and hi-color temperature lamps,etc.
4) For making supports and electron tubes.
5) Stranded tungsten wire is applied for making heater elements and other heater components in semiconductor and vacuum devices

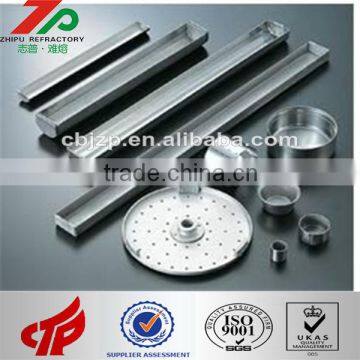

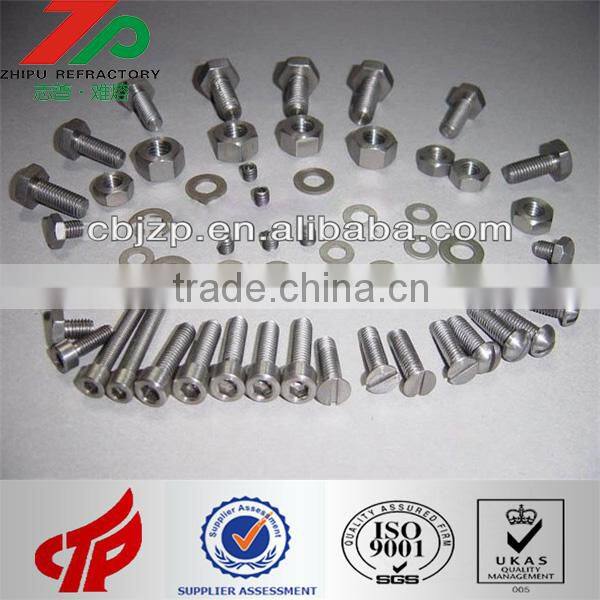

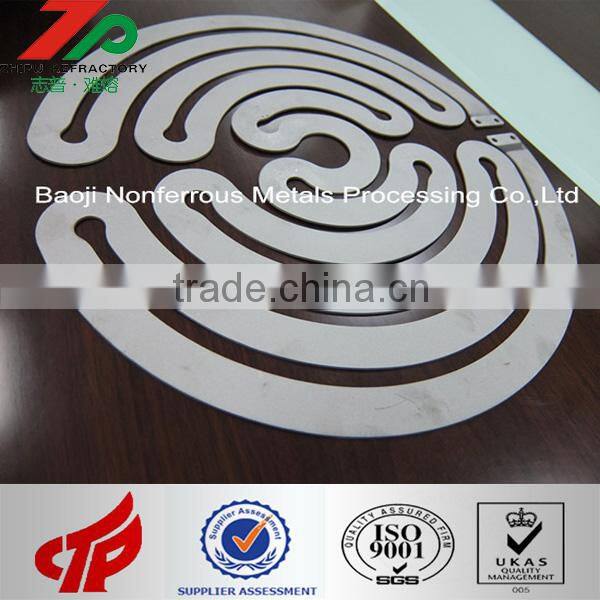

Other tungsten or molybdenum production
Application

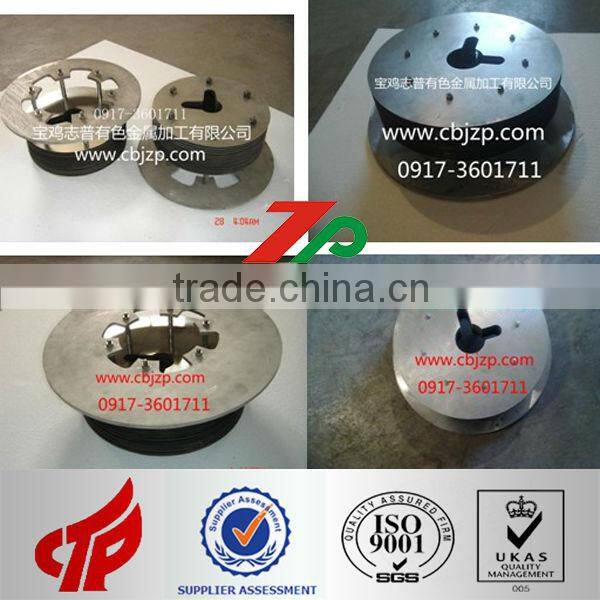

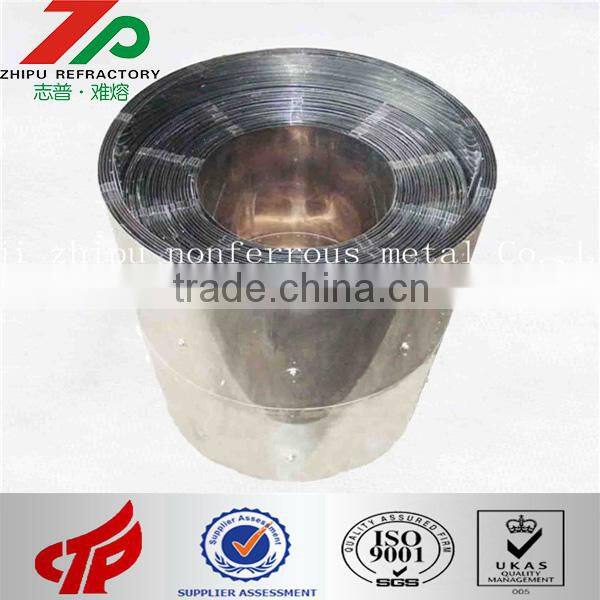

The heat shielding is make up of multiple layers of molybdenum sheet with spaces between each layer. Generally, a heat shielding often consists of 3 - 7 layers of molybdenum sheet backed by stainless steel sheet. For higher operation temperatures, the number of molybdenum layers is increased as well as the thickness of each layer .
As the heat-shield parts in the sapphire growth furnace, the most decisive function of upper and bottom cover plate is to prevent and reflect the heat in the furnace. Heat-shield parts with high-density, exact-measurement, smooth-surface, convenient-assembly and reasonable-design has great significance in improving the crystal-pulling.
Merit: high temperature molybdenum sheets and plates are hot/cold rolled by unique technology ,the products gain more high temperature property by increasing the recrystal temperature of molybdenum by 500°C~700 °C .
Package details
1>First packaging with moisture-proof paper
2>Second packaging with kraftpaper
3> Third packaging with foam plastics in all side of plywood case
4>Finally packing products in plywood case
if you have any questions,please contact me at any time.
Baoji zhipu non-ferrous metals processing Co.,Ltd
Address:Torch road ,gaoxin district,baoji city,Shaanxi province,China(mainland)
Tel:86-0917-3601711
Fax:86-0917-3602511
