Hot Dipped Galvanized Steel Coil/Sheet in competitive price mainly used for roofing
| Product Description of Galvanized Steel Sheet |
1)Aluminum and zinc galvanized steel is the best combination of
components and structure of the alloy coated steel.
2)Alloying elements aluminum, zinc and silicon-containing coating.
3)It combines aluminum corrosion resistance, heat resistance and
zinc electrochemical (sacrificial anode) Performance
| Product Feature of Galvanized Steel Sheet |
Good corrosion resistance
1)Under various environmental conditions, Galvalume exhibit excellent corrosion resistance
than galvanized steel sheet of the same thickness,and its service life is 2-6 times
that of ordinary galvanized steel.Galvanized parts due to the deformation of
micro-cracks less than galvanizing, thus forming region is much higher than the
corrosion resistance hot dip galvanized.
2)There are examples of the use of the roof for 20 years in North America.
3)It sort of life: rural industrial atmosphere --- --- --- general atmosphere of severe marine
sub-marine atmosphere
Good thermal properties
(1) Heat resistance: general galvanized products typically use temperature does not exceed 230 ℃,
reached 250 ℃ when will change, but long-term use galvanized plate at 315 ℃ environment.
(2) heat-reflective good: its reflection coefficient is hot galvanized plate twice in the summer can
reduce the indoor temperature, reducing air conditioning electricity consumption.
Aluminum (300G / M2): 40H / WATT / M2
Galvalume (150G / M2): 65H / WATT / M2
Galvanized (275G / M2): 120H / WATT / M2
Asbestos / cement: 150H / WATT / M2
Good surface properties
Small and uniform spangle
1.Color is bright silver
2.High surface hardness (scratch is not easy to rub)
3.A plurality of colors may be applied a semipermeable membrane
Good paintable
Galvalume when used as a tablet or other purposes by spray coating, degreasing simply without
the need for pre-treatment or etching treatment, because of its coating and the coating has a
good combination of polarity, and hot-dip galvanizing layerIt is not.
Relatively light weight
Because of galvanized steel plating lighter, in the case of the same coating thickness is greater
than the developed area per ton of galvanized steel, with 0.48MM, plating 40μm (both sides),
for example, its weight and tons of steel per square expand area as follows:
Weight per square meter per ton of steel to expand the area
Substrate thickness AZ150 Z275 AZ150 Z275
0.48mm 3.94kg 4.06kg 254m2 246m2
| Corrosion mechanism of Galvanized Steel Sheet |
Corrosion mechanism
(1) physical effects
Aluminum zinc coating on the surface of steel sheet, steel plate in contact with the outside blocking
the corrosive medium, the steel sheet eliminating the corrosive effects of corrosive media.
(2) chemical action
Corrosion beginning, zinc portion preferential dissolution (~ -1.05V), followed by aluminum-rich partially
dissolved (-0.9V), between last metal compound is dissolved (-0.75V), are lower than the electrode
potential of iron (-0.44V) Therefore aluminum zinc layer protects the substrate etching priority, called a
sacrificial anode protection.
(3) trivalent aluminum ion doped role
Polarization resistance
Rp (Al-Zn) = 10.5kΩ * cm2
Rp (Zn) = 3.1kΩ * cm2
Thus slowing the corrosion reaction speed
| Product Process of Galvanized Steel Sheet |

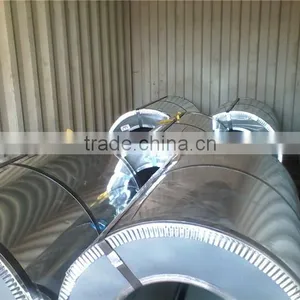

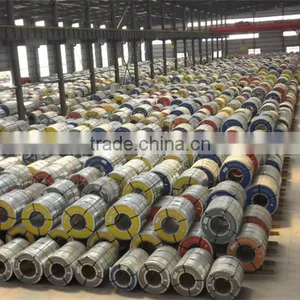

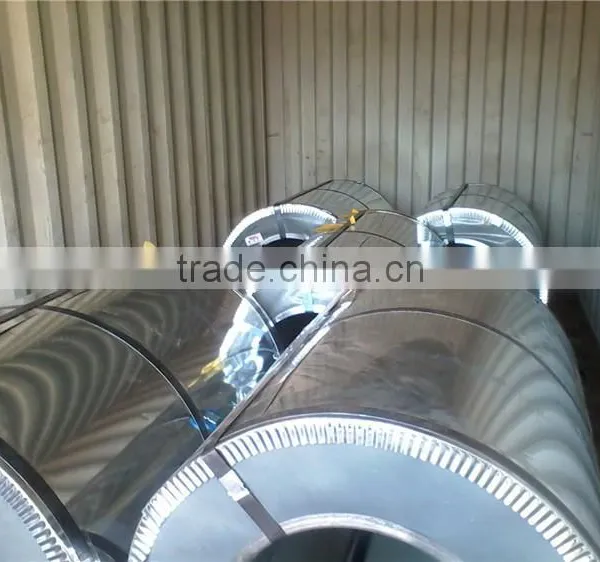

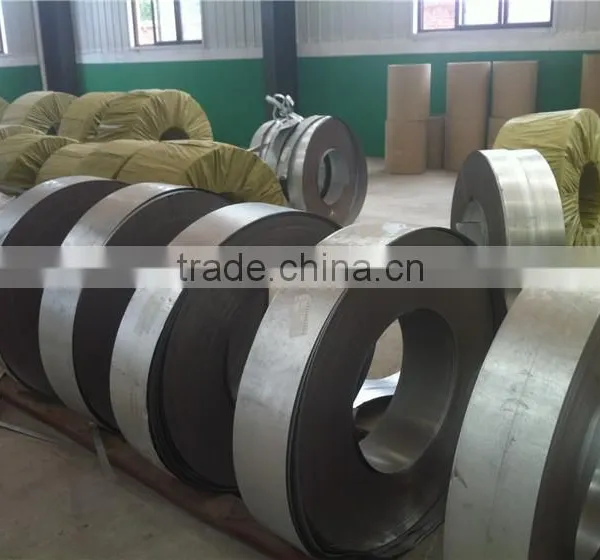

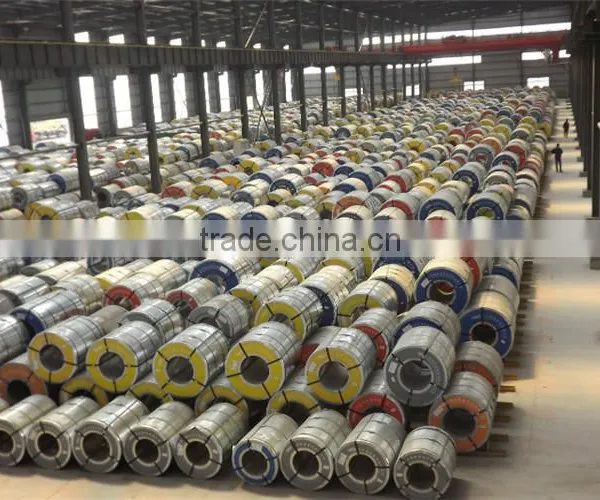

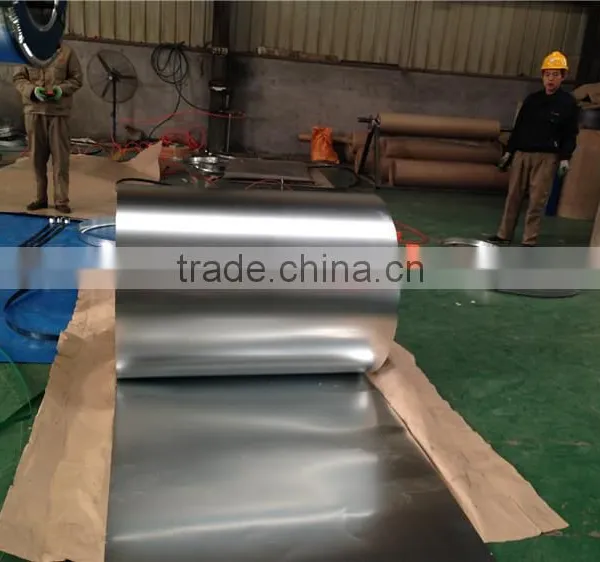

| Product Pictures of Galvanized Steel Sheet |
| Application |

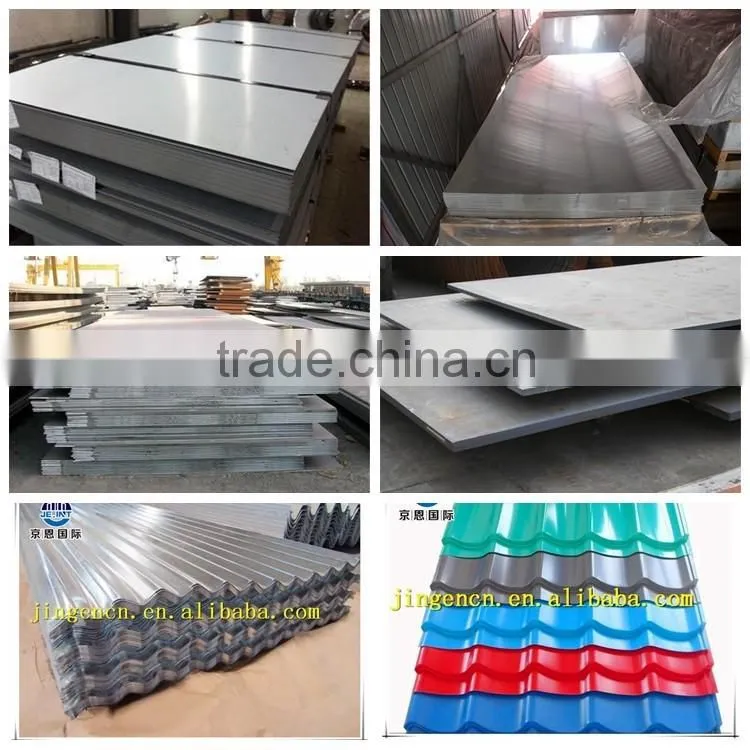

| STEEL SHEET / STEEL PLATE |
|

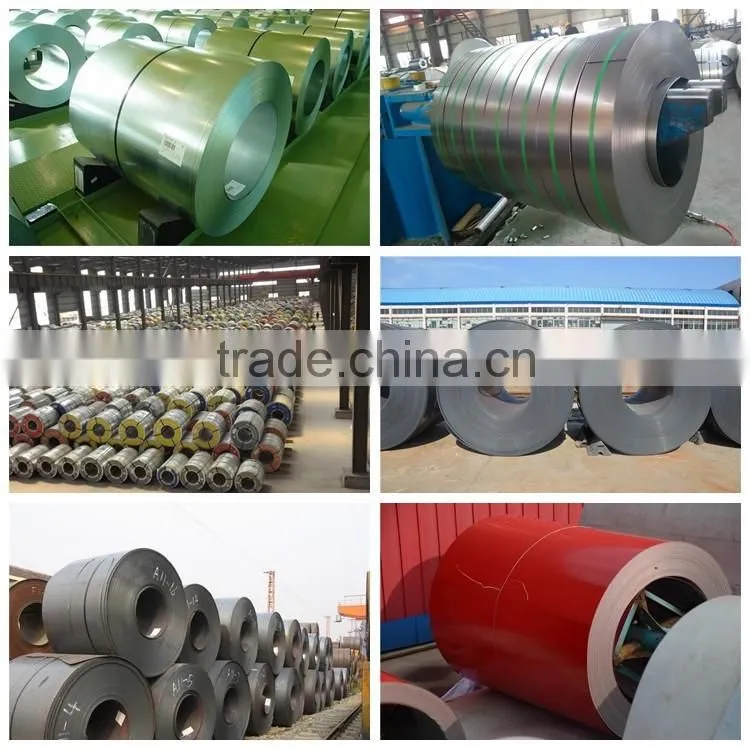

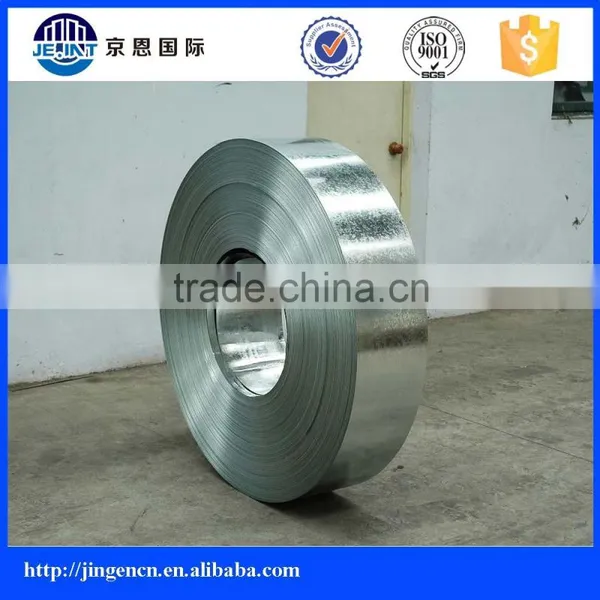

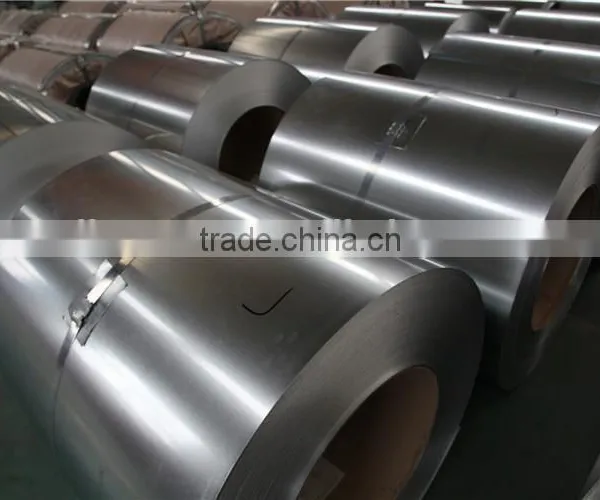

| STEEL COIL |
|

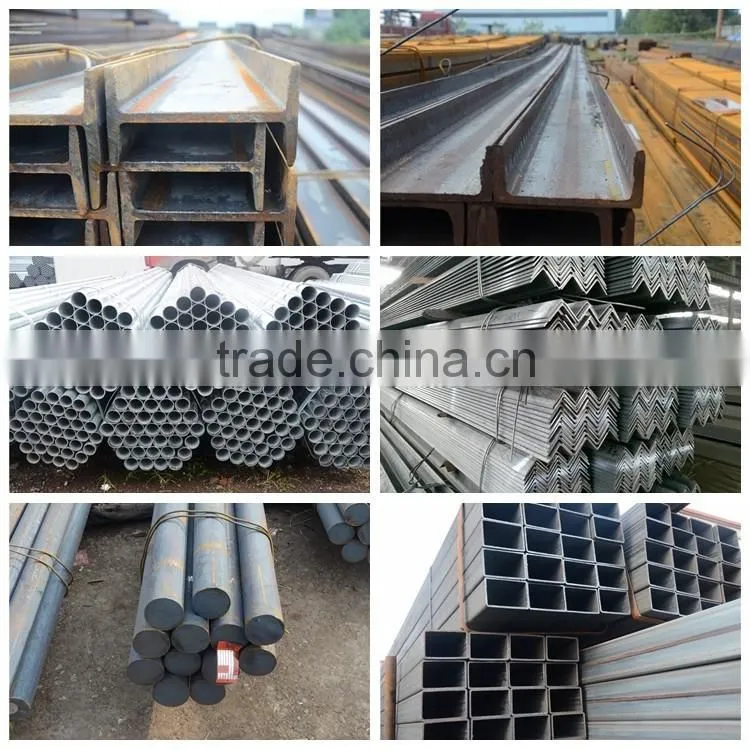

| STEEL PROFILE |
|
|
| Packaging & Shipping |
|
Packing Each product is packed. The package also can according to customer's requirement. Shipping Normally we ship by door to door service via DHL, Fedex, UPS, TNT, EMS etc. We will mail you the Tracking No# when the order is shipped. We can also ship by air or by sea through your pointed forwarder. FOB Port is Shanghai or Ningbo. If you don't have a forwarder, we can also find a suitalbe forwarder for you to ship the goods to your pointed port. |
