Jinma Brand 35hp 4wd Farm Tractor for Sale

Jinma Brand 35hp 4wd Farm Tractor for Sale thumbnail-1
Jinma Brand 35hp 4wd Farm Tractor for Sale thumbnail-2
Jinma Brand 35hp 4wd Farm Tractor for Sale thumbnail-3

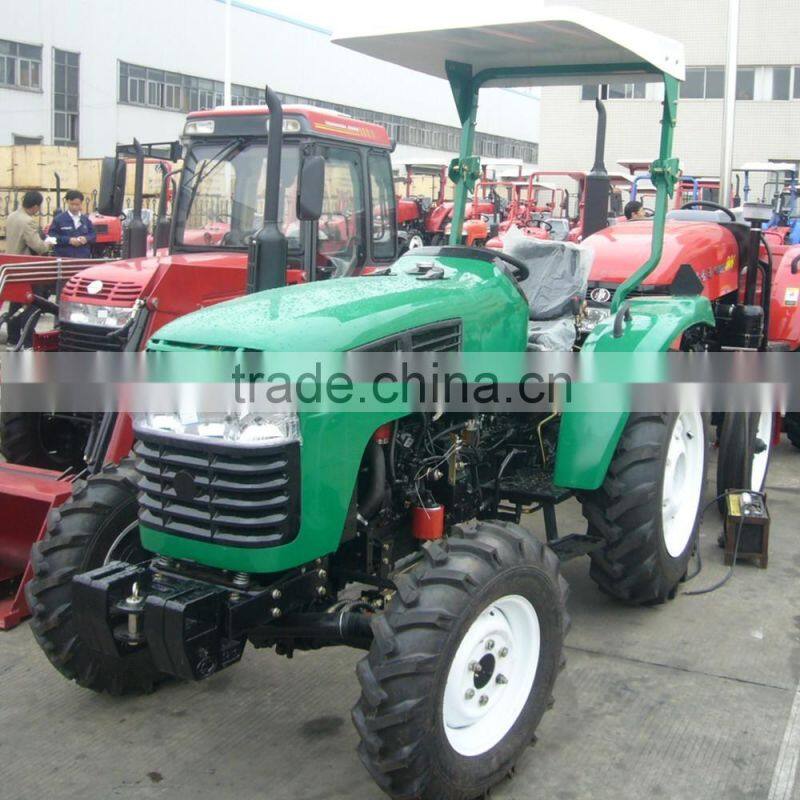

Jinma Brand 35hp 4wd Farm Tractor for Sale photo-1
Jinma Brand 35hp 4wd Farm Tractor for Sale photo-2

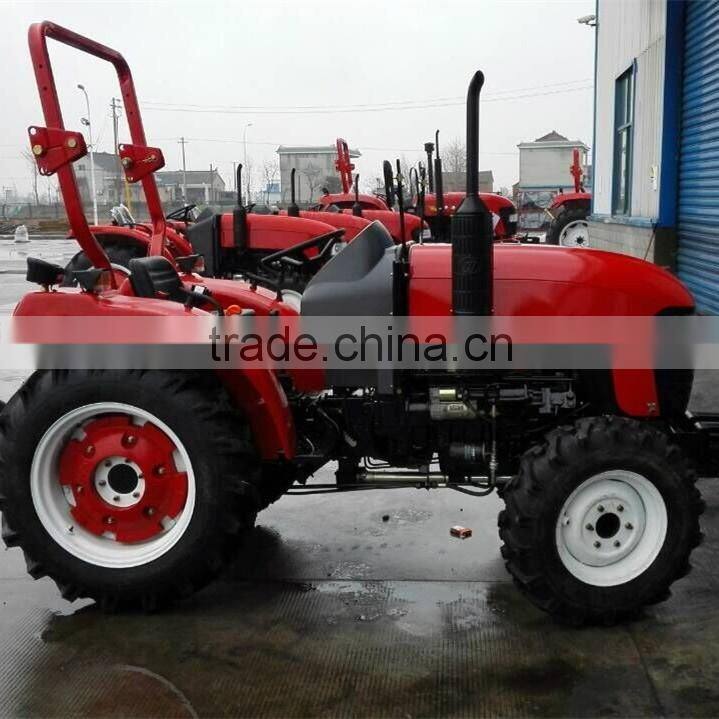

Jinma Brand 35hp 4wd Farm Tractor for Sale photo-3
US$ 4,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Henan Lucky Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 25.7KW
Certificate CE
Brand Name JINMA
Model Number JM-354
Place of Origin Jiangsu, China
After-sales Service Provided Overseas service center available

Product Description

Jinma 20-35hp mini tractor for sale now at very good price. All the tractors are from Jinma factory with 12 months warranty.

35hp 4wd Jinma 354 tractor spec., it is hot sale farm tractor for sale philippines





Tractor

Parameters

ModelJM-354
Drive Type4WD
Overall Dimensions L*W*H(mm):3357x1435x1985
WheelTrack(mm)Front1200
Rear1150-1450
Wheel Base(mm)1833.5
Ground Clearance (mm)292
Rated Traction Force(N)8800
Construction Mass(kg)1800
Min.Turning Radius(m)4.2

Theoretical Speed

(With out creeper

gear (km/h)

Forward2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867
Reverse2.861,13.2
EngineModelTY3100/4L22T
Type3/4-Cylinder,Vertical,Water-Cooed,4 Stroke Cycle
Rated Power(kw/hp)25.7/35
Rated Speed (rpm)2300/2350
Bore*Stroke(mm)100*105/85*95
Total Displacement(L)2.47/2.156

Drive

Sysytem

ClutchSingle/Dual stage
Gear Box(4+1)*2
Main DriveOne Pair of Spiral Bevel Gearing
DifferentialBevel Gear
Differential LockJaw Lock
Final TransmissionsSpur Gear,External,Gearing

Travelling

Mechanism

TyreFront7.5-16
Rear11.2-24
Steering GearPower Steering
BrakeDisc type

Working

Device

Hydraulic

System

Lifting Capacity at

610mm Behind

Lift Pioint (N)

5800

3-Point

Suspension

Category:I
P.T.O ShaftSpeed (rpm)540/720 or
540/1000
Spline Size5Rectangular 6 Spline
OPTIONSROLL BAR,CANOPY,CAB







Jinma brand 35hp 4wd farm tractor for saleJinma brand 35hp 4wd farm tractor for saleJinma brand 35hp 4wd farm tractor for sale

Jinma brand 35hp 4wd farm tractor for sale

Color: gree, red, blue, silver are optional
Packaging & Shipping

Iron frame or nude packing in container

L/T: 35days after order confimmation

Our Services

Payment terms: 30% TT down payment, 70% TT before delivery

Warranty: 12months

Departure port: Qingdao or Shanghai

FAQ

Why we only sell Jinma/YTO tractor?

1)Jinma/YTO tractor quality is good, it is reliable tractor

2)YTO company is with high reputation and good credit

3)We are partner of Jinma/YTO factory



What's the payment terms?

30% TT down payment, 70% TT before delivery.



Is it farm implements available?

Yes, it is available.
