Home > Products > Farm machinery > 50hp 4wd jinma farm tractor for sale at good price

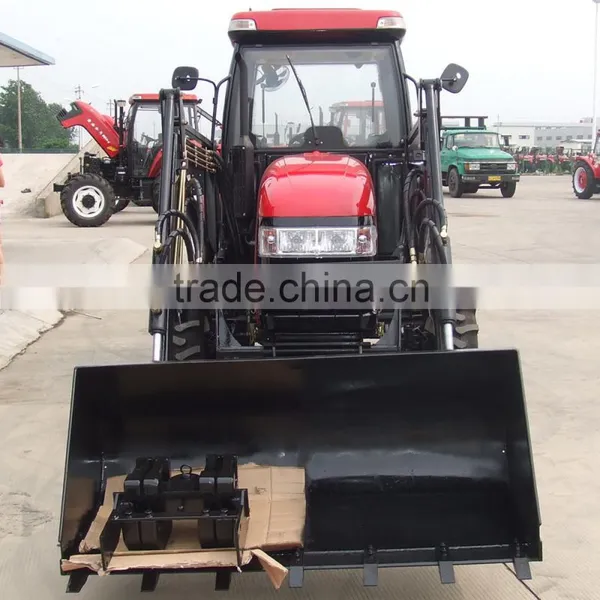

50hp 4wd jinma farm tractor for sale at good price
- 500 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 25.7KW |
Certificate: | CE | Brand Name: | JINMA | Model Number: | JM-504 |
Place of Origin: | Jiangsu, China | After-sales Service Provided: | Overseas service center available |
Product Description
We only sell Jinma tractor and YTO tractor.
Jinma tractor 16hp, 20-50hp is with CE, EEC certificate, can sell to Europe market.
Below is Jinma 50hp 4wd farm tractor spec.
Tractor Parameters | Model | JM-504 | |
Drive Type | 4WD | ||
Overall Dimensions | 3946×1625×2220 | ||
L*W*H(mm) | |||
Wheel Track | Front | 1300 | |
(mm) | Rear | 1300-1600 | |
Wheel Bass(mm) | 2073 | ||
Ground Clearance(mm) | 325 | ||
Rated Traction Force(N) | 13000 | ||
Construction Mass(kg) | 2148 | ||
Min. Turning Radius(m) | 3.42 | ||
Model | SL4100BT | ||
Type | 4-Cylinder Vertical, Water Cooled, 4 Stroke Cycle | ||
Engine | Rated Power(kw/hp) | 36.8/50 | |
Rated Speed(rpm) | 2300 | ||
Bore×Stroke(mm) | 100×110 | ||
Total Displacement(L) | 3.456 | ||
Clutch | Single-Function Dry Constant Meshing | ||
Gear Box | 4×(2+1)Sleeve Gear | ||
Drive System | Main Drive | One Pair of Spiral Bevel Gearing | |
Differential | Bevel Gear | ||
Different Lock | Sliding Pin, Foot Operated | ||
Final Transmission | Planeatry Reduction Gear | ||
Type | Front | 8.3-20 | |
Traveling Mechanism | Rear | 12.4-28 | |
Steering Gear | Hydraulic Steering | ||
Brake | Oil Lmmerszd Multiplated Disc | ||
Hydraulic System | Lifting Capacity at 610mm Behind Lift Point(N) | 8300 | |
Working Device | P.T.O Shaft | 3-Point Suspension | Category:1 |
Roating Speed(rpm) | 540/720 or 540/1000 | ||
Spline Size | 6-φ35Rectangular Spline | ||
Options | Roll bar, Canopy, Shuttle, Hydraulic, Steering, Dual stage clutch, Turf Tyer, Cab |
Iron frame or nude packing in container
L/T: 35days after order confimmation
Pls. be noted, if choose tractor with cabin, it had to choose 40HC container, if choose tractor with rop and sunshade, 20feet container is OK.
Payment terms: 30% TT down payment, 70% TT before delivery
Warranty: 12months
Departure port: Qingdao or Shanghai
Why we only sell Jinma/YTO tractor?
1)Jinma/YTO tractor quality is good, it is reliable tractor
2)YTO company is with high reputation and good credit
3)We are partner of Jinma/YTO factory
What's the payment terms?
30% TT down payment, 70% TT before delivery.
Is it farm implements available?
Yes, it is available.
Contact Us
- Henan Lucky Machinery Co., Ltd.
- Contact nameClaire Gao
- Phone0086-371-56257781
- AddressChina Zhengzhou,Henan
