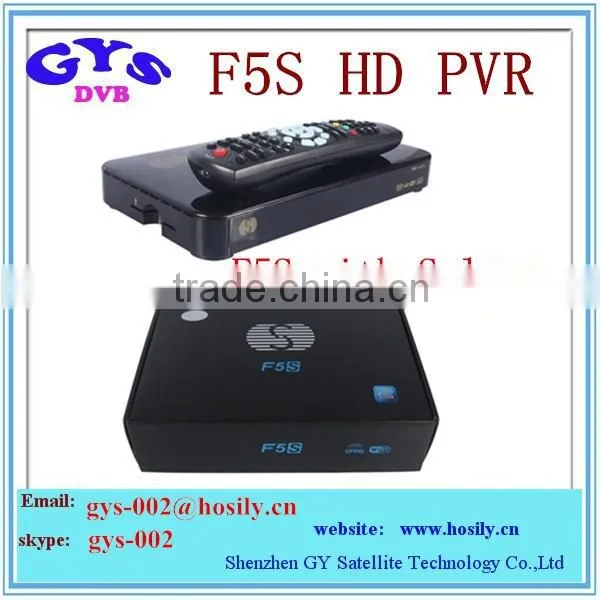

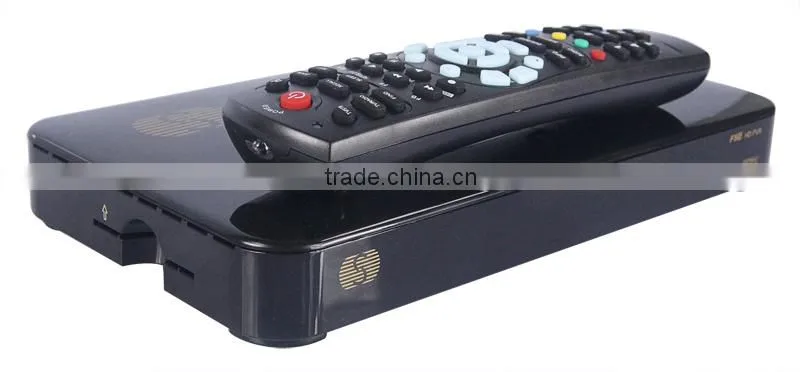

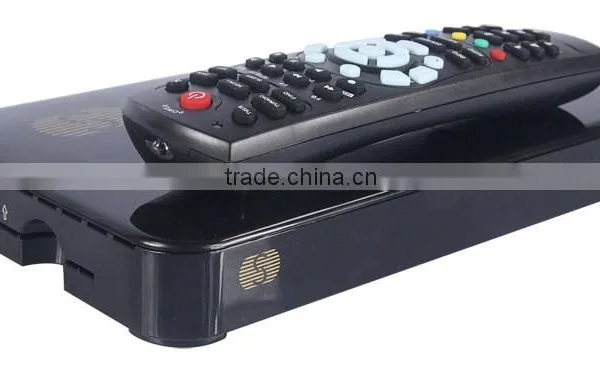

100% Original S F5S Full HD Satellite Receiver
1. Ali3601 Processor, 396MHz MIPS, Dual-Core CPU
2. Supports HDMI 1.3
3. PVR Functions
4. NIT search Supported
5. Support cccamd, newcamd, MGcamd, Avatarcamd
6. Support USB wifi, weather forecast
7. Come with Sharp Tuner, Signal quality better
8. support GPRS function (Option)
9. with VFD Display
Dual CPU, 396 MHz MIPS Processor
Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);
SCPC & MCPC receivable from C/Ku band satellites;
multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3 (USALS) supported)
NIT search supported;
Support MPEG-5;
Support HDMI 1.3;
Support PVR(store in USB disk);
Multimedia files playback(by USB);
Support Electronic Program Guide (EPG) for 7 days;
channel-change time < 1 second
OSD in many languages and skin-support
Fully Adaptable OSD in Many Languages
(English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Arabic, Thai, Swedish, Danish, Greek, Bosnian, Bulgarian, selectable)
LED Display
Multiple display mode: 1080p/1080i/720p/570p/576i/480p;
Upgrade software through USB2.0 port;
Powerful program management function, parent lock;
CA 1x slot
10/100Mbit Ethernet Interface
directly bouquet-lists
Specification
Board configuration |
396MHz MIPS CPU 128MB DDRII400 RAM Memory Clock 198MHz 4MB Serial Flash Single Tuner DVB-S2 demodulator |
Power Supply |
Input 100V-240V 50/60Hz |
Power Consumption |
30W Max/1W Standby (it's optional by customer’s board) |
RS232 |
For FW Upgrading |
Standard Receiver Standard |
DVB-S2 Standard (DTSI EN 302 307) |
Input Frequency Range |
950MHz~2150MHz |
Input Signal Level |
-25dBm ~ -65dBm |
Demodulation |
QPSK, 8PSK, 16APSK |
Transport Stream |
MPEG-2 ISO/IEC 13818 Transport Stream Specification |
MPEG Profile Level |
MPEG-2 SD, MPEG-2 HD, H.264/AVC SD, H.264/AVC HD |
LNB Power & Polarisation |
Vertical +13.5V, Horizontal 18V, Current: MAX 500ma |
Multi Satellite Receiving |
22K switcher, DiSEqC1.0, DiSEqC1.1, DiSEqC1.2, USAL |
Conditional Access System |
1 CA card reader Slots |
A/V Output ports |
YPrPb, RCA with CVBS , HDMI 1.3, Left/Right analog audio output(RCA) |
Aspect Ratio |
Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box. |
Audio Decoding |
MPEG1 Layer I, MPEG1 Layer II, MPEG 1 Layer III, MPEG2, AC3. |
Audio Mode |
Stereo/MONO/Left/Right |
DVR supporting |
DVR with USB HDD, Time shifting with USB HDD |
USB2.0 High Speed Host |
1USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card or FW Upgrading. |
File System |
FAT12, FAT16, FAT32, NTFS |
Media Supporting |
JPG, BMP, MP3, WMA |
Ethernet Interface |
10Mbit |
Storage Temperature |
0ºC To +50ºC |
Package
Gross Weight: 1.20kgs/box
Carton Size: 62*40*24cm
Package: 10pcs/ctn
Gross Weight: 13.5kgs/ctn
1*S- F5S receiver
1* Remote
1* Adaptar( UK Plug ,EURO Plug ,AUS Plug and USA Plug is optional)
1* HDMI Cable
1* User Manual
