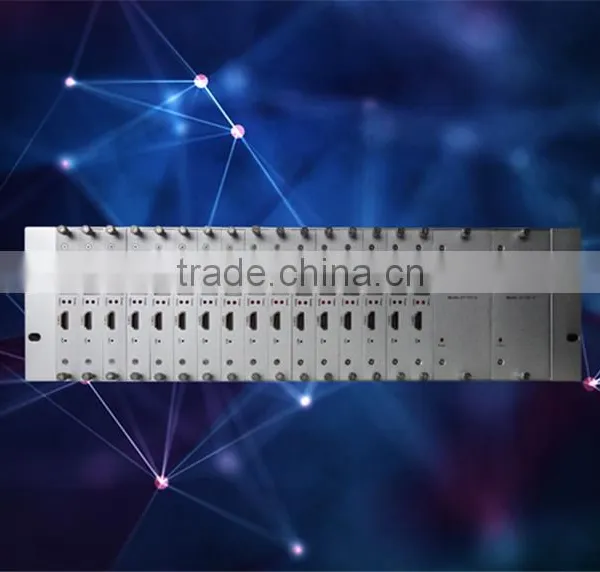

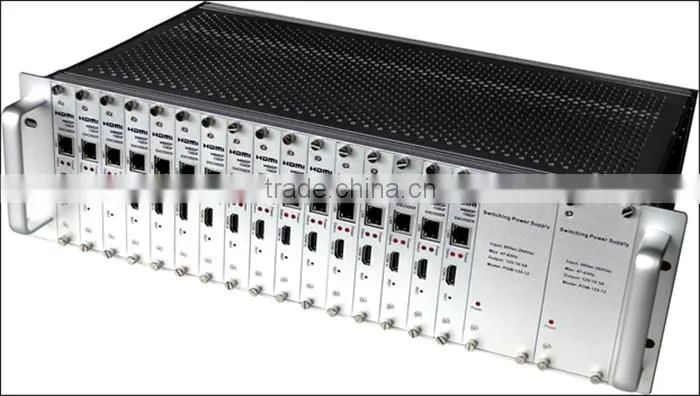

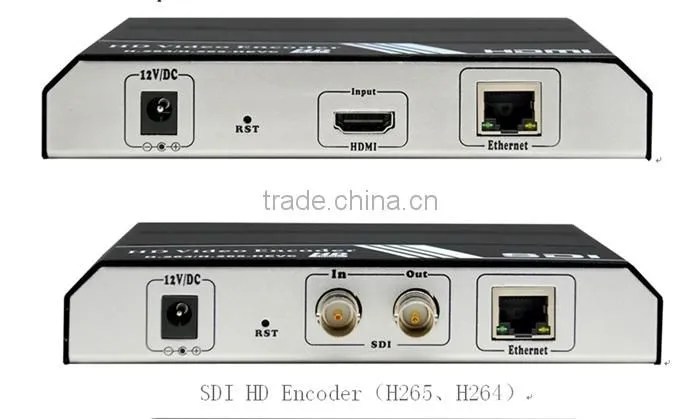

Low cost 16Ch hd rtmp encoder h.264/h.265 iptv streamer
We accept payments:T/T,Alipay,western union .
After payment confirmed,we will ship out the packages within 48 hours.
Welcome to Shenzhen GYS Technology Co,Ltd.
Characteristics:
The high performance hardware encoding
Support H.265 video encoding
Support H.264 BP/MP/HP
Support AAC/G.711 advanced audio quality encoding format
The CBR/VBR rate control, 16Kbps ~ 12Mbps
The network interface uses a 100M/1000M full duplex mode
The mainstream, sidestream can push flow different servers
Support up to 720P HD video input 1080P@60HZ
Support image parameter setting
HDMI encoding support HDCP protocol to support Blu ray HD
Support HTTP, UTP, RTSP, RTMP, ONVIF
The mainstream and the secondary flow with different network transmission
protocol
The WEB interface in English optional configuration interface
WEB interface management
Support remote management of wide area network (WEB)
Support custom flow resolution output settings
Support stream insert function word, font, background color
Support stream into the 3 picture transparent image watermark function, the XY
Support a key to restore the factory configuration

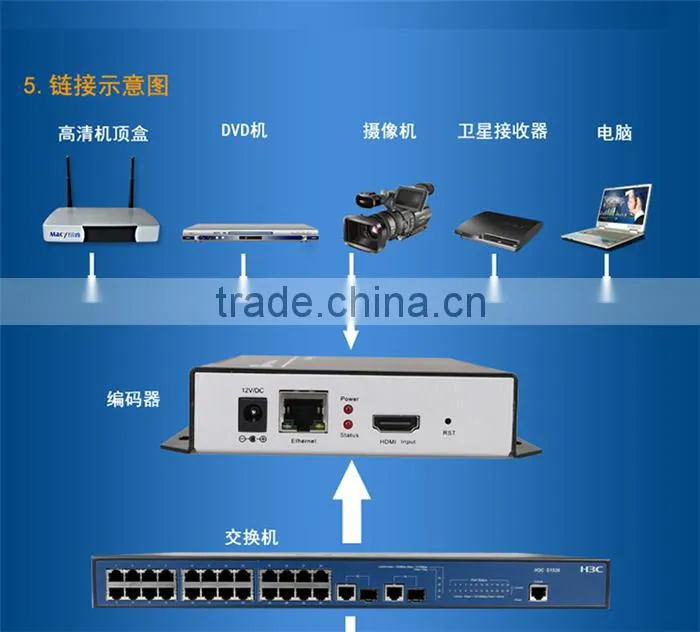

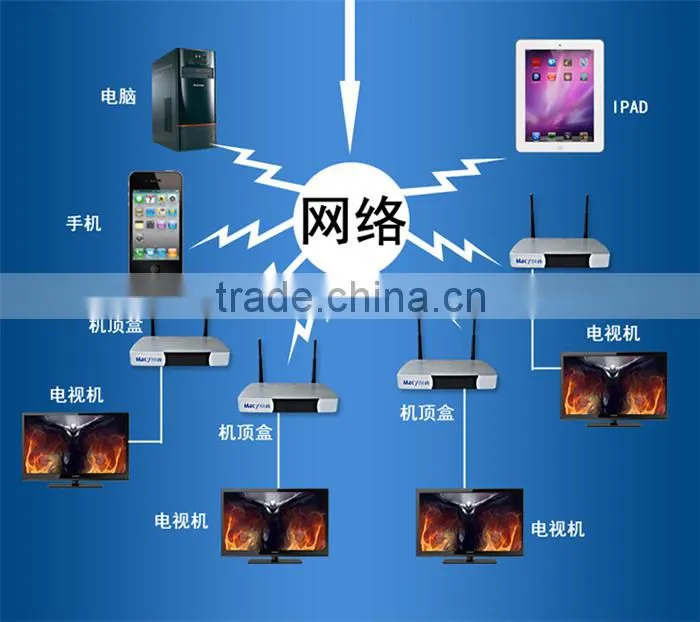

Applications:
1, 4G mobile HD front end collection
2, HD video broadcast server
3, Video conferencing system video server
4, Digital signage HD streaming server
5, The front end of the teaching live video recording system
6, IPTV TV system front-end acquisition
7, Micro channel front-end acquisition system
8, Medical video and video system
9, Can access NVR hard disk recorder
Technical parameters:

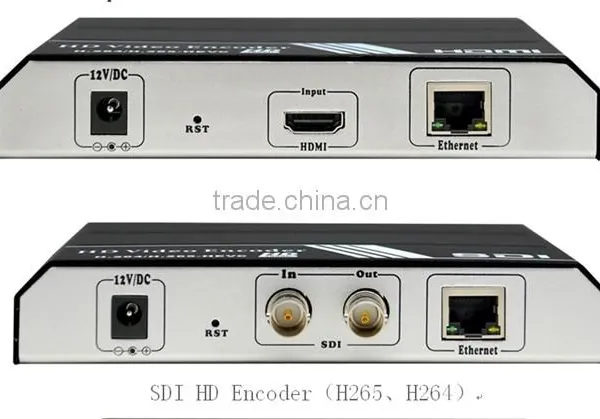

Input
Video |
HDMI,SDI,VGA |
HDMI resolution ratio |
1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p and 1280×720_50p and so on. |
VGA resolution ratio |
1920x1080, 1600x900, 1280x960, 1280x720, 1280x1024, 1024x768, 800x600 and 640x480 The frame rate is 60HZ |
SDI resolution ratio |
1280*720P24,1280*720P25,1280*720P30,1280*720P50,1280*720P60, 1920*1080I50,1920*1080I60,1920*1080P24,1920*1080P25,1920*1080P30, 1920*1080P50,1920*1080P60 |
Encoding |
H.264/H.265 |
Code rate |
16kbit/s~12Mbit/s |
Code rate control |
CBR/VBR |
GOP type |
Adjustable |
Audio:
Coded format |
AAC,G.711 |
Sampling rate |
32K 44.1K |
Bit rate |
48K,64K,96K,128K,160K,192K,256K |
Sampling precision |
24 bit |
Code rate |
64Kb/s~384Kb/s |
System:
RJ45 |
100M/1000M Ethernet |
Stream |
HTTP,UTP,RTSP,RTMP,ONVIF HTTP, UTP, RTSP, RTMP and ONVIF protocols |
Configuration interface |
WEB operation interface |
Updating |
Software update can be made through the network |
General Specification:
Size |
155*90*27mm |
Weight |
0.3KG/pc; 0.3KG for single unit |
Temperature range |
0~45℃(workable),-20~80℃(stored) |
Power supply |
12V/1A or 5V/2A |
Power consumption |
5W/1 channel |
