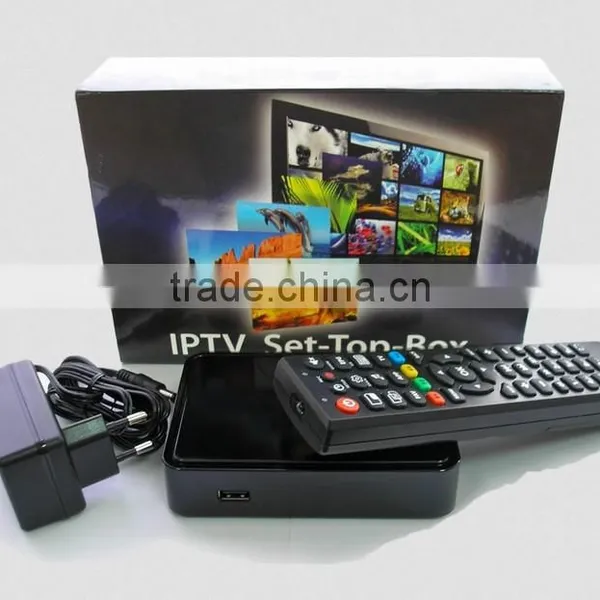

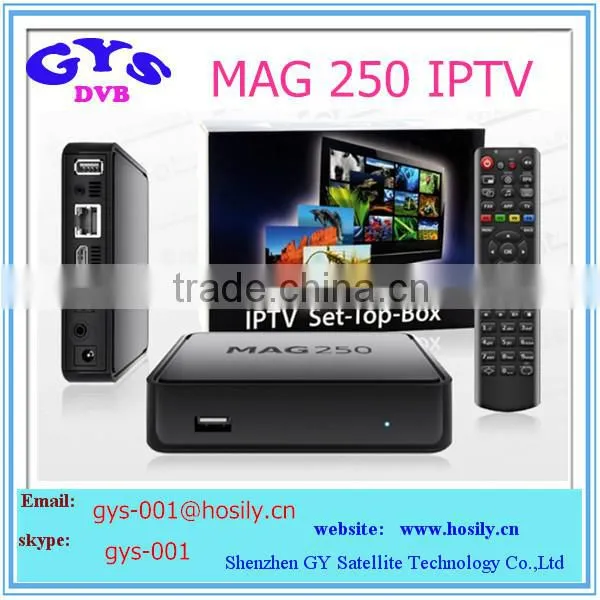

Mag 250 Mag 254 Android Iptv Box Quad Core Linux System

Mag 250 Mag 254 Android Iptv Box Quad Core Linux System thumbnail-1
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System thumbnail-2
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System thumbnail-3
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System thumbnail-4
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System thumbnail-5
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System thumbnail-6
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System photo-1
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System photo-2
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System photo-3
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System photo-4
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System photo-5
Mag 250 Mag 254 Android Iptv Box Quad Core Linux System photo-6
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
MAG250
Contact Supplier Request Quote Chat Now
Shenzhen GYS Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number MAG250
FTA(Free To Air) Yes
Type Digital
High Definition Yes
Product Description

  Mag 250 mag 254 android iptv box quad core linux system







Features:

1.Android  4.4.2 operating system.
2.Cortex  A7 Main  Frequency  1.2GHz.
3.DDRIII Memory(2gb)  Flash  Memory: MLC 8GB.
4.Support MPEG4,  H.264, AVS  Full 1080P HD  Decode.
5.Support HDMI 1.4 CVBS  Output.
6.Support PVR  to  external USB HDD  storage  device.
7.Support HTML5, HLS. HTTP, multicast UDP / RTP
8.Support updating by USB device and SD Card.
9.Support  Android  Mobile  Phone, IPAD   controling  the Box.
10.Internal  WiFi.Ethernet:10/100 Mbit / s.
MPEG Transport Stream & A/V Decoding :

Video modes:

· UHD H.264 2160p video decoding

· Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc.

· H.264 High Profile 1080p@30fps or 720p@60fps encoding

· 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported

· 3840x1080@30fps 3D encoding

· Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols

.1080i,1080p,720p,576p,PAL,NTSC
Audio Formats:
. MP3, MPA, M4A, WMA (optional), Ogg, WAV,AC3,AAC
Image formats:
. JPEG, PNG, BMP, GIF,RAW

Display:

· Integrated LVDS/RGB/CPU LCD interface 1280x800 resolution

· Integrated HDMI1.4 1920x1080@60fps

Camera:

· Supports 0.3M/1.3M/2M/5M CMOS sensor

· Supports 8/10/12-bit YUV/Bayer sensor

HawkView ISP:

· Static and dynamic defect pixel correction, and lens shading correction

· Anisotropic non-linear Bayer interpolation with false color suppression

· Programmable color correction, dynamic range compression and contrast enhancement

· Advanced spatial de-noise filter

· AE/AF/AWB

· Anti-flick detection

Memory:

· 32-bit DDR3/DDR3L/LPDDR3/LPDDR2 controller

· 8-bit NAND Flash controller with 64-bit ECC

PMIC:

· PMIC AXP221s

· 21-CH power output and 2.2A Flash charging

· Comply with USB 3.0 power supply standard

Audio:

· Two sets of I2S/PCM interfaces for Baseband and Bluetooth

· Two integrated differential analog MIC for headset and phone

· Integrated digital MIC interface

· Dedicated headphone/speaker/receiver outputs

· Two-channel audio ADC with 96dBA SNR

· Two-channel audio DAC with 100dBA SNR

OS:

· Supports Android 4.1/4.2 and above

· Compatible with Microsoft Windows 8

Port &Interface:

& DC*1 .
& USB 2.0 *2.
& ETHERNET*1 (10/100Mbit).
& HDMI*1.
& CVBS, L, R*1

& wifi*1

Power Supply:

Input Voltage   AC 100V ~ 240V, 50Hz ~ 60Hz
Power    DC 5V-2A

Accessories:

Remote Control /1 pc
AV Cable  /1 pc
HDMI Cable /1pc
Adaptor 5V-2A/ 1pcs

WiFi adapte /1pcs



Detail Images

 Mag 250 mag 254 android iptv box quad core linux systemMag 250 mag 254 android iptv box quad core linux systemMag 250 mag 254 android iptv box quad core linux systemMag 250 mag 254 android iptv box quad core linux systemMag 250 mag 254 android iptv box quad core linux system



Company Information

Welcome to Shenzhen GYS Technology Co,Ltd.

We are DVB satellite tv receiver manufacturer located in Shenzhen,China for many years.
Our main markets:Europe,South amercia,Asia.
Our goal:To be Number One in the peers.





Our Services

 warranty: 2 years

shipping time: within 24hours after payment received (fast shipping)

delivery time:DHL 3-4days, FeDex 5-7 days to europ

payment terms: T/T, western union, moneygram, escrow

what we can do: offer brand new items for customers,double test the device to ensure 100% working well before shipping,update tracking No.timely and offer best after-service for customers.

well come to contact us for more details.
