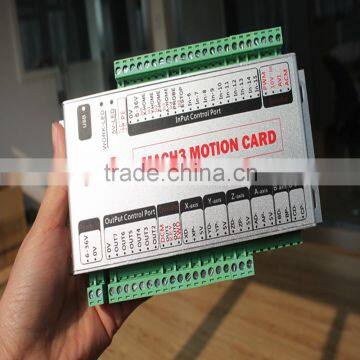

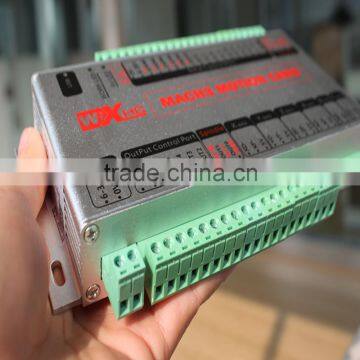

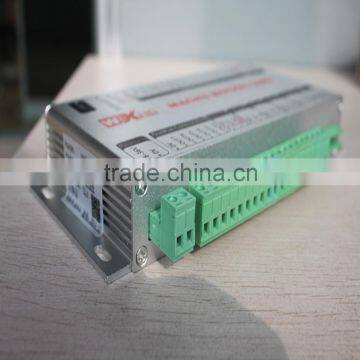

XHC product that 3 axis MACH3 cnc motion controller with 16 input 8 output, 400KHZ

3-Axis Motion Control Card USB 2.0, CNC MACH3 USB Card XHC-MK3

 We are Manufacture ,  these products are produced in our own!!!!!!

Typical application:

support all kinds of numerical control equipment, such as engraving machine, cutting machine system and cnc machine so on.

 Feature:

• Application environment: only suitable for Windows platform under the Mach3 control system: all version of USB do not need to install drivers, all versions of the Windows plug and play
• The number of control axis: support up to 6 axis linkage (according to the different models, different number of support shaft)
• The output shaft speed control pulse: pulse output with 400KHZ, then can support servo, stepper driver and motor.
• The input and output IO port: has 16 input IO,8 output IO, All  IO port in isolation, anti-interference ability, stable performance
• The main spindle speed control: support spindle PWM change speed output ,support spindle pulse and direction output shaft;  support the spindle  0 to 10V analog voltage output through change speed.
• Aluminum shell, shielding, anti dust, anti-static, stable and reliable

MACH3 software parameter settings

Installation Instruction

Mach3 software ready

This card is a Mach3 USB interface 4/6-axis motion control card

 The lastest version of Mach3 official website:

                           /downloads.php

MKX Operating and Installation Instruction

1. please download the latest Mach3 driver from Mach3 official

website:/downloads.php

2. Install the Mach3:

The Parallel Port Driver does not require.

3. Prepare the USB cable

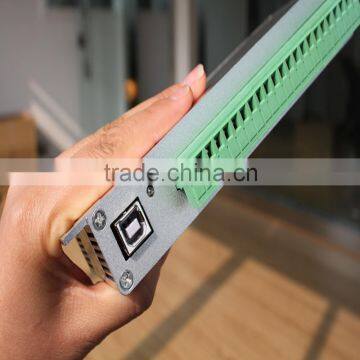

4. Connect the usb cable to MKS usb socket and insert the other end to the PC usb port.

5.The windows will automatically the driver.Wait for the driver installation end

6.Install the MKS card py the NC usbPod.dll to the Mach3Plugins folder.Copy the Mach3mill.xml configure file to the Mach3directory.if you  don’t copy the mach3mill.xml file.

7.You should do as next step

8.Open Mach3 software, Choose “NcusbPod-XHC-Mach3-USB-Motion-Card”,Choose “Don’t ask me this again”

9.if there is a black window in mach3,please click view->loda screen,choose 1024.set.

reset buttion and make it normal.don’t flash.Now everything should be ok,please do what you want.If any problem please refer to shooting troubles.

MKX first run steps

When you first run mks,you should configure the motor parameter,home neg.motor move way.output and input io etc.

1.X,Y,Z,A,B,C-axis output configuration   As shown below:(Config->Ports and Pins). If motor moving way reverse,please make Dir Low Reverse.change form √ to x,or change from x to √.

2.Motor parameter settings.As shown below:(Config->Motor Tuning):Set the motor acceleration,velocity,steps per .

3.The Mach3 Menu->Config->Homing/Limits.Home direction, depends on the “Home Neg”. If home moveing way reverse,please make “Home Neg” Reverse. change form √ to x,or change from x to √.

4.Setup the input signals.(Config->Ports and Pins)

The Pin number is from 0.Suggest Active Low= “√”(Set Low singnal Level for Inputs)

5.Setup the Output signals(Config->Ports and Pins)

The output IO is corresponding with mach3#Output x,Suggest Active Low=“√”(Set Low singnal Level for Inputs).

All the details see instruction
