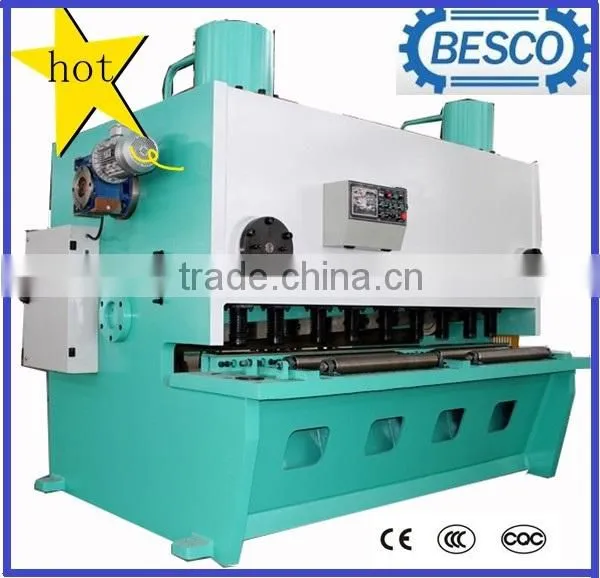

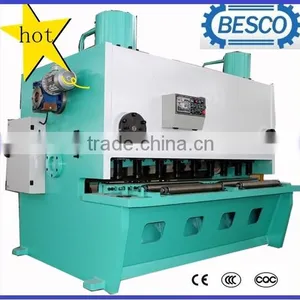

QC11Y/K-30/4000 Hydraulic Guillotine Shearing Machine,CNC Guillotine Shear, Q235 steel plate guillotine cutting machine

Specifications

QC11Y/K-30/4000 Hydraulic Guillotine Shearing Machine,CNC Guillotine Shear, Q235 steel plate guillotine cutting machine
1.High







 Product Description

QC11Y/K-30/4000 Hydraulic Guillotine Shearing Machine,CNC Guillotine Shear, Q235 steel plate guillotine cutting machine



General descriptions:

1. The design style is as per Germany Standard DIN55222T2-80
2. The frame is steel welded construction, vibration to eliminate stress, with high strength and good rigidity
3. Adopting rolling guiding way with three point support to make sure good cutting quality and accuracy
4. The back gauge is adjusted by motor and fine adjusted by hand wheel. The strokes is shown by autonics

   digital displayer and can be adjusted stepless.

5. The gap between upper and bottom blades can be adjusted by hand wheel.
6. Rectangular blades have four cutting edges and have long service life.



Hydraulic system:

1. First valve (from U. S. A) make sure good working, long service life and low noise.

2. NOK oil seal (from Japan) prevents oil leaking with long service life
3. Sleeve type pipe joint to make sure there is no oil leaking
4. Best quality pump provide long service life and low noise



Electric system:

1. Schneider or simense electric parts with good quality and easy to replace around the world

2. Autonics digital displayer (from Korea) has good accuracy and long life
3. Autonics encoder (from Korea) has good accuracy and long life
4. Best quality motor provide enough power and low noise.



Guillotine Shearing Machine Parameters

Model	Cutting    thickness (mm)	Cutting    width (mm)	Cutting    angel (°)	Travel    times (min-1)	Back gauge    range (mm)	Anti-strength  of  plate (N/mm2)	Main    power (Kw)
QC11Y-4*2500	4	2500	0.5-1.5	18-30	550	450	5.5
QC11Y-6*2500	6	2500	0.5-1.5	16-26	550	450	7.5
QC11Y-6*3200	6	3200	0.5-1.5	13-22	550	450	7.5
QC11Y-6*4000	6	4000	0.5-1.5	8-115	500	450	7.5
QC11Y-6*6000	6	6000	0.5-1.5	5-10	750	450	11

Factory production and processing equipment

Hydraulic Guillotion Shearing Machien Detail

Hydraulic Guillotine Shearing Machine Pictures













1.Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!

2.Warranty period is1 year. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.



Question1:What is about the payment?

Answer:Payment:30% T/T as advance, 70% T/T before delivery.



Question2:what is about the delivery time?

Answer:That depend on the stocks.
