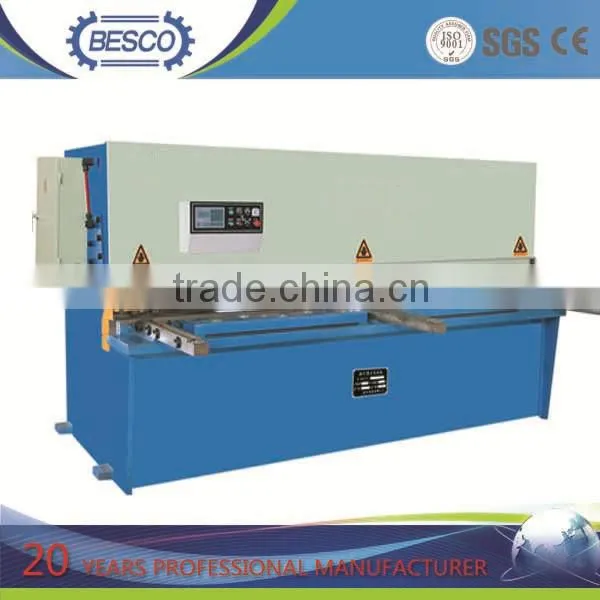

QC12Y/K-6/6000 Hydraulic Shearing Machine,CNC Shearing Machine, 6000mm plate shearing machine
performance characteristic |
(1).The frame is welded construction with steel plate,Vibration to eliminate stress,With sufficient rigidity
and high strength,steady and reliable performance,easy operation and maintenance.
(2).Hydraulic drive,swing beam,the return of the knife beam is smooth and prompt by nitrogen cylinder.
The back gauge |
The back gauge is motorized adjustable,The value is shown on the control on the front of the machine,
Adjusting the gap between blade is portable and prompt,The value of the gap is indicated on a dial.
The cutting time and Safety |
(1).The cutting times are shown in the control on the front of the machine,Equipped with lighting-alignment device,protective fence and safety inter-locker to ensure the operation safety.
(2).Protective fence and the safety interlocker to ensure the operation safety. Power supply switch that
is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up.
Protecting barrier with safety interlocker is mounted on the back of the machine. Another, there are
travel limit protection and foot pedestal mounted emergency off switch.
The blade clearance and the blade |
(1).The adjustment of the gap between tools can be showed on an indicating dial.
(2).Adopt handwheel to rapidly and accurately adjust the blade clearance
(3).The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
(4).Light alignment device eases drawing line for cutting, Standard front support sheet frame,
A set of standard blades
The electrics and hydraulic |
European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.
The shearing angle |
Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear
much thicker sheet metal.
NC control |
Front Operated Motorised Back gauge with digital readout display-Estun E10s, stroke-Range 10 to 750 mm.
Ball |
Rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
Sheet Metal Shearing Machine,Shear Machine,Hydraulic Cutting Machine Parameters
| Model |
Cutting
thickness (mm) |
Cutting
width (mm) |
Cutting
angel (°) |
Travel
times (min-1) |
Back gauge
range (mm) |
Anti-strength of plate (N/mm2) |
Main
power (Kw) |
| QC12Y-4*5000 | 4 | 5000 | 1.5 | 10 | 20-500 | 450 | 7.5 |
| QC12Y-6*2500 | 6 | 2500 | 1.5 | 18 | 20-500 | 450 | 7.5 |
| QC12Y-6*3200 | 6 | 3200 | 1.5 | 14 | 20-500 | 450 | 7.5 |
| QC12Y-6*4000 | 6 | 4000 | 1.5 | 12 | 20-500 | 450 | 7.5 |
| QC12Y-6*6000 | 6 | 6000 | 1.5 | 8 | 20-500 | 450 | 11 |
Sheet Metal Shearing Machine,Shear Machine,Hydraulic Cutting Machine
Detail
Factory production and processing equipment
Sheet Metal Shearing Machine Pictures
