Modular Design IP65 120 Watt Led Flood Light

Shandong Weishi Lighting Technology Company Limited
Modular Design IP65 120 Watt Led Flood Light thumbnail-1
Modular Design IP65 120 Watt Led Flood Light thumbnail-2
Modular Design IP65 120 Watt Led Flood Light thumbnail-3
Modular Design IP65 120 Watt Led Flood Light thumbnail-4
Modular Design IP65 120 Watt Led Flood Light thumbnail-5
Modular Design IP65 120 Watt Led Flood Light thumbnail-6
Modular Design IP65 120 Watt Led Flood Light photo-1
Modular Design IP65 120 Watt Led Flood Light photo-2
Modular Design IP65 120 Watt Led Flood Light photo-3
Modular Design IP65 120 Watt Led Flood Light photo-4
Modular Design IP65 120 Watt Led Flood Light photo-5
Modular Design IP65 120 Watt Led Flood Light photo-6
US$ 55 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar Bridgelux Cree Sumsong Lumileds
Input Voltage(V):
AC85-265V
Lamp Power(W):
120
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar Bridgelux Cree Sumsong Lumileds
Input Voltage(V) AC85-265V
Lamp Power(W) 120
Lamp Luminous Flux(lm) 15000
Lamp Luminous Efficiency(lm/w) 130
Color Temperature(CCT) Cool White
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification C-tick, CE, CQC, EMC, LVD
Place of Origin China
Brand Name Weishi
Model Number WSFL09
Product Features

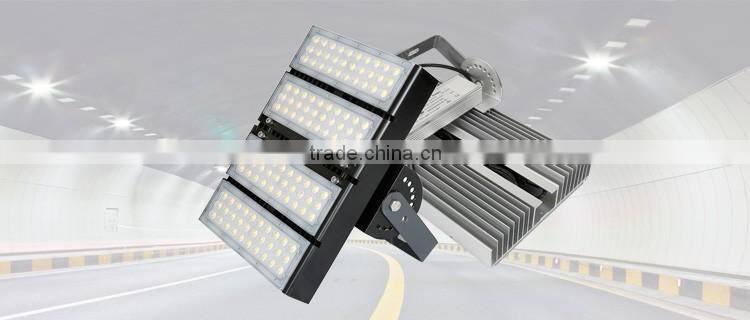

60w-270w LED Tunnel Light, LED Flood Light

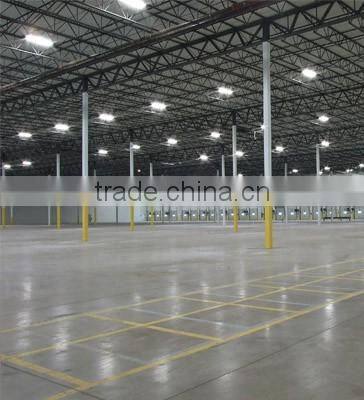

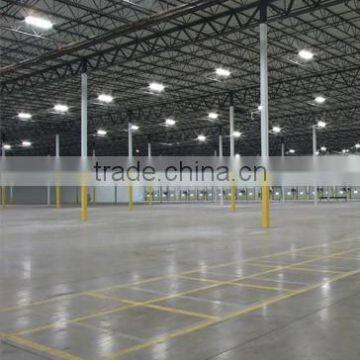

Can be widely applied for indoor and outdoor lighting, such as warehouses, factories, stadiums, tunnels, buildings and billboards.


Light Design

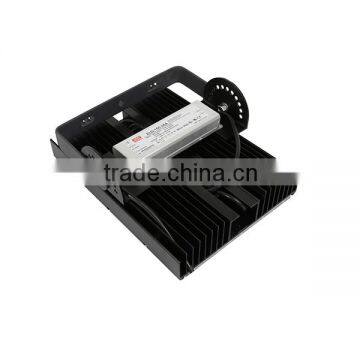

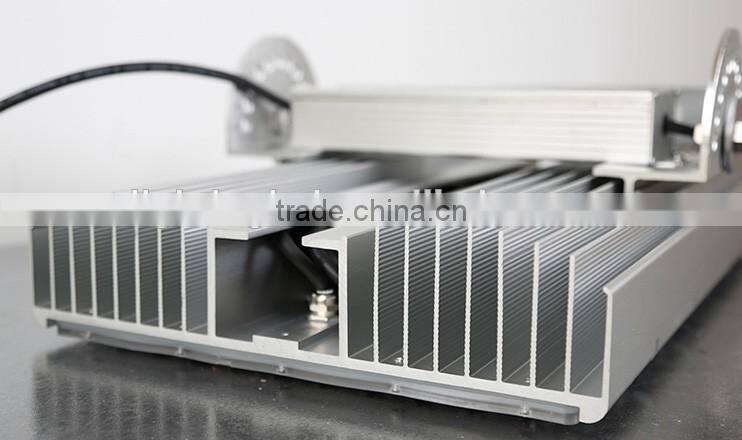

Heat Sink

smart and compact design

- High purified aluminum heat sink.

- Extra sufficient materials.

- Advanced heat conduction.

- Providing long life of the LEDs .

luminaire led

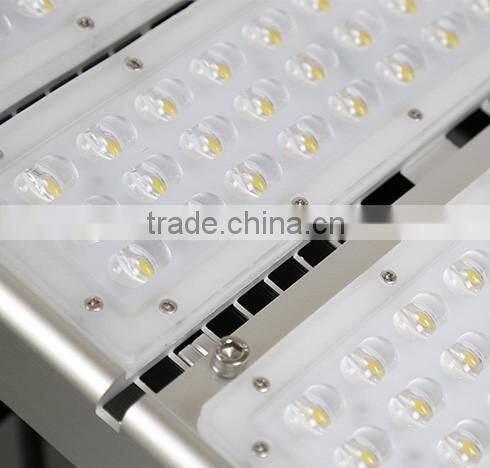

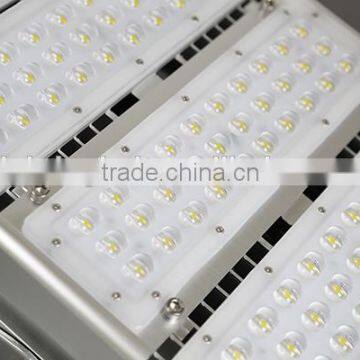

High Efficient Optical lens

-Integrated light lens creating professional beam.

-Mutiple beam angle options available for different applications.

-Top grade PC materials, high UV protection, unti-shock and non-glare design.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.


LED Source and Power Supply

luminaire led

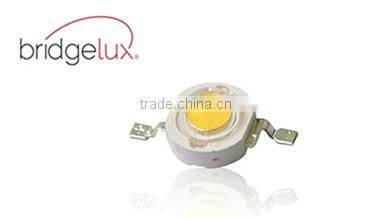

Adopting Bridgelux High Power LEDs as light source, high reliability In outdoor application:

-45mil Chips

-140lm/W
-CRI > 70Ra(80-95Ra available) 50,000h life
-Wide colour temperature options
-Low colour shifting and low light decay

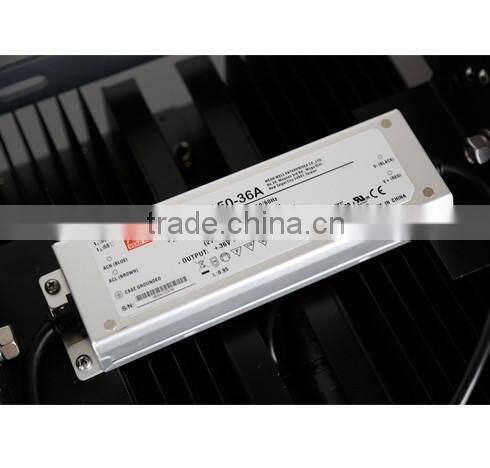

Power Supply

Adopting Taiwan Meanwell® or the same standard IP65 waterproof power supplies, providing better electronic performance.

Specifications
Fixture Module Qty
2 pcs
3 pcs
4 pcs
5 pcs
6 pcs
LED Light Source Brand
Bridgelux/CREE/Samsung/Lumileds high power LEDs
LED Qty (pcs)
60/48
90/72
120/96
150/120
180/144
Power (Bridgelux)
60w
90w
120w
150w
180w
Power (Cree)
90w
130w
180w
220w
270w
Net Weight
4.3kg
5.7kg
7.2kg
8.8kg
10.0kg
Product Size (mm)
216*280*230
281*280*230
374*280*230
457*280*230
550*280*230
Input Voltage
85-265 AC
Efficiency
130-140lm/W
CCT
White:6000K;      Neutral White: 4500K;      Warm White: 3000K
CRI
>70Ra
Power Factor
>0.9 at full load
Lamp Materials
Aluminum and PC Optical lens
Working Temp.
-40°C - 50°C
Working Humidity
10%-90%
Case Finishing Colour
Silver or Black(anodized)
Protection Grade
IP65
Beam Angle Options
30°/60°/90°/90°*90°/80°*140°
Light Distribution

(1) TYPE V Light Distribution

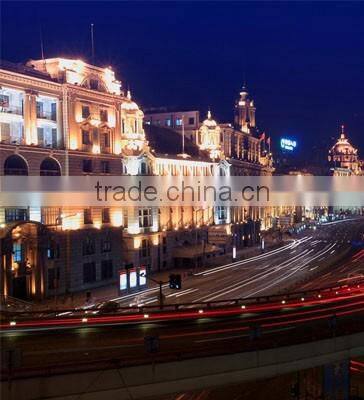

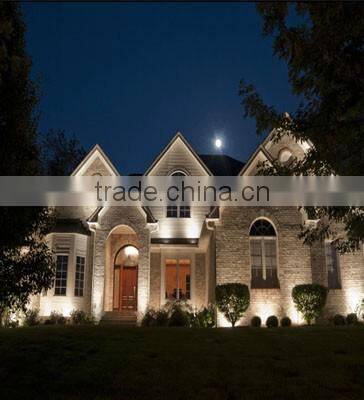

Applications: Architecture, Landscape.

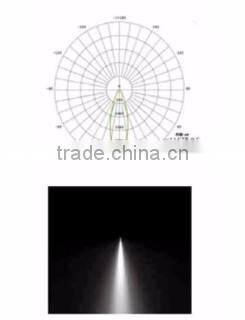

30° BEAM ANGLE

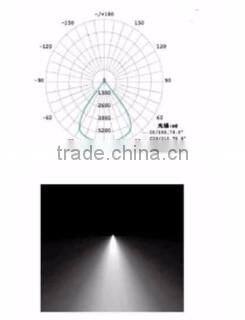

                 60° BEAM ANGLE

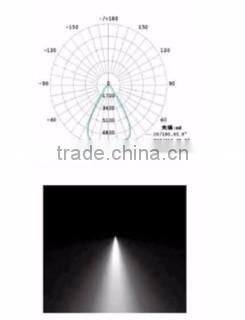

                90° BEAM ANGLE


(2) TYPE I, TYPE VS Light Distribution

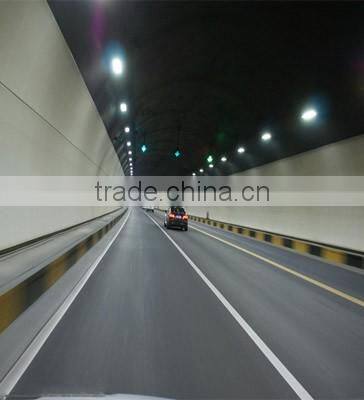

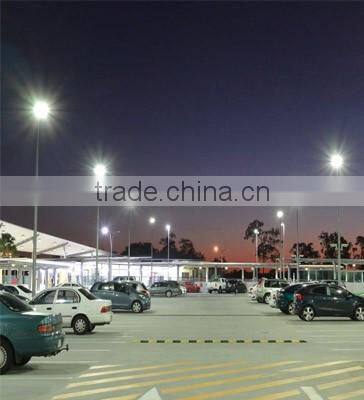

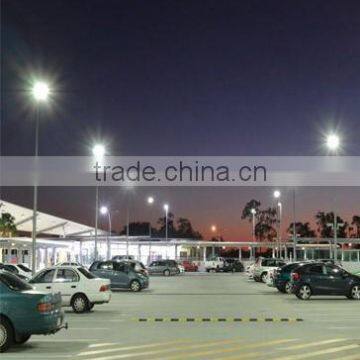

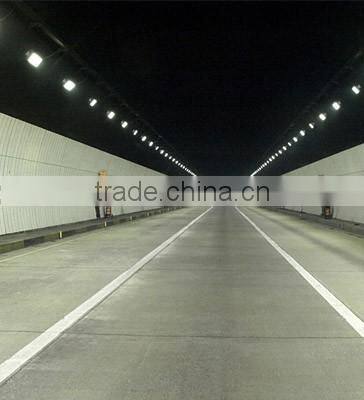

Applications: Tunnel Light, Factory, Area, Patrol Station,  Carparks, Squares Area Lighting.

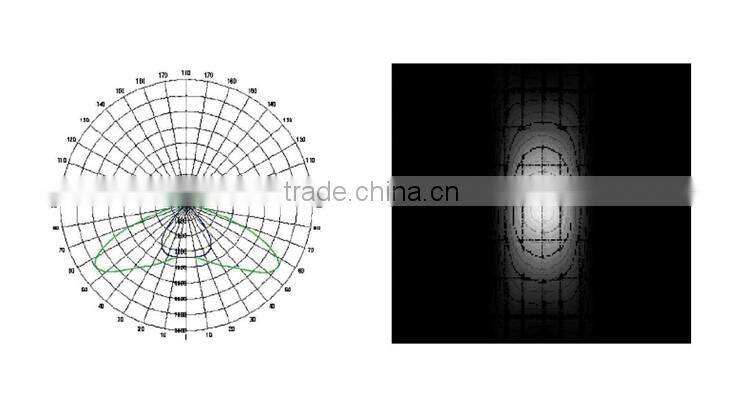

     Vertical 80°  Horizontal 140°

   Square 90°*90°

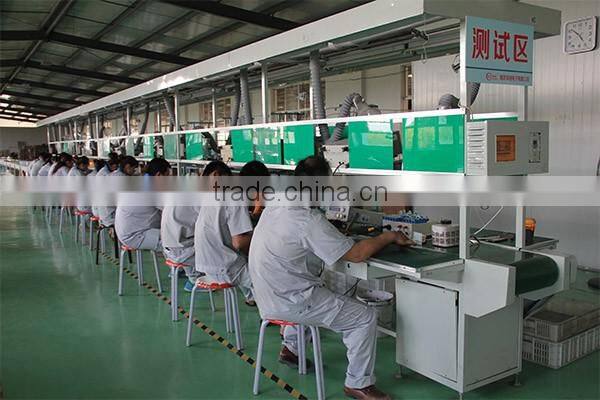

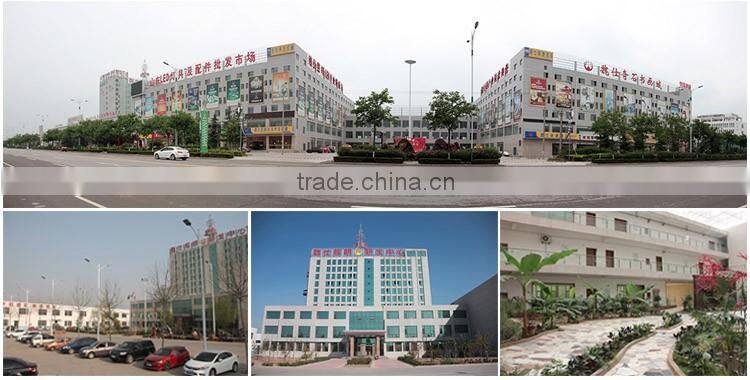

Company Information
