cat7/ cat6 /cat5e utp lan cable network utp lan cable for indoor and outdoor
Description:
Conductor:
Material: BC or CCA/CCS
AWG: 23AWG/24AWG/26AWG
Conductor diameter: 0.4mm~0.52mm
Insulation :
Material: HDPE and FRPE
Diameter: 1.02 ±0.005mm
Average thickness: 0.225mm
Minimum point thickness: 0.2245mm
First screen: Aluminum Foil (superposition rate: 25%)
Overall screen: 48/0.1mm TC braid shield (braid density: 40%)
Sheath:
Material: PVC or LSZH
Nominal diameter: 6.0 ±0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.545mm
Standard:
YD/T1019-2001, TIA/EIA-568B, ISO/IEC11801,ISO/IEC61156
Application:
Horizontal cabling in working area.Used in voice system,ISDN,
ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
Specfication:
Conductor |
Insulation |
|
Drain |
Jacket |
|||||||
AWG |
Specification(mm) |
Material |
Thickness (NOM.mm) |
Core Number |
Shielded |
Material |
Thickness(NOM.mm) |
OD(NOM.mm) |
|||
24 |
1/0.511 |
HD-PE |
0.20 |
4P |
AL/Mylar |
1/0.511TC |
PVC or LSNH |
0.60 |
6.0 |
||
26 |
1/0.404 |
HD-PE |
0.20 |
4P |
AL/Mylar |
1/0.404TC |
PVC or LSNH |
0.60 |
5.2 |
||
-------------------------------------------------

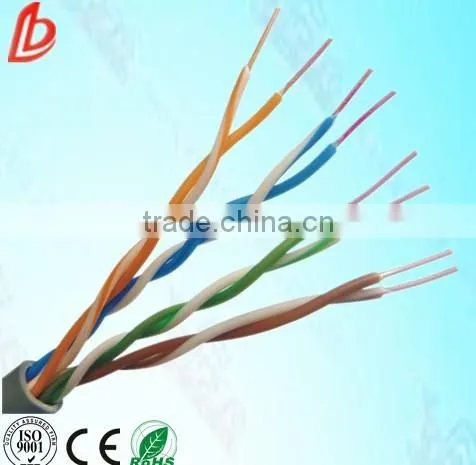

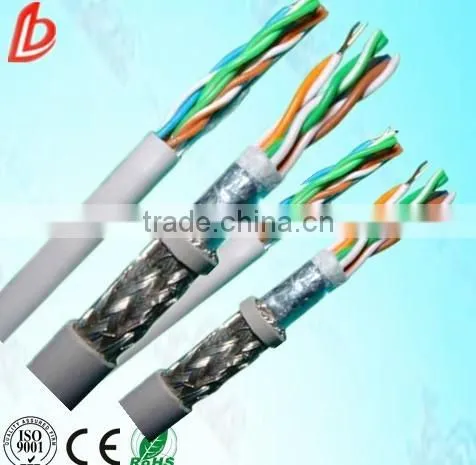

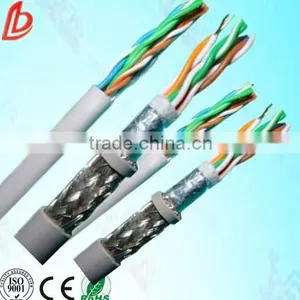

Pictures:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
