High speed 4 Pair RJ45 UTP cat6/cat5 patch cords with 23/24 AWG
Description:
cat5/cat6 utp patch cord is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
Structure:
BC: Bare Copper CCA: Copper Clad Aluminum
TC: Tinned Copper CCS: Copper Clad Steel
Features:
- 100% pass Fluke
- any color available
- PE insulation, FR PVC/LSOH PVC jacket
- RJ45 contact gold plating: 3u",6u",15u",30u", 50" optional
- Connection: 1:1-EIA/TIA 568B;EIA/TIA 568A
- any color available
- Plug: Unshield Rj-45 Plug ;
- Length: 1m/2m/3m/5m/10m/15m/20m/25m/30m/50m(special length accepted by order) .
Application:
- Computer Network Cabling Project.
- Broadband Network Communication.
- Digital ISDN Network and ATM 155Mbps Network
- Ethernet Network
- Audio and Data Transmission
Specfication:
| Inner Conductor | Number of Pairs | 4 |
| Total Number of Conductors | 8 | |
| Conductor Material | BC-Solid Bare Copper | |
| Wire Gage | 23AWG,24AWG,26AWG,28AWG | |
| Conductor Diam(ø)mm | 0.50±0.03mm | |
| Elongation | ≥15% | |
| Insulation | Insulation Material | HDPE - Polyethylene |
| Nom. Thickness | 0.215mm | |
| Insulation Dia. | Φ0.95±0.05mm | |
| Elongation | 300% | |
| Color Cord | Pair 1:White-Blue & Blue; | |
| Pair 2:White-Orange & Orange | ||
| Pair 3:White-Green & Green; | ||
| Pair 4:White-Brown & Brown | ||
| Paired | Length of Lay | 30mm |
| Filled | Jelly filled | No |
| Cabling | Order of the Pair | See the Cross Section |
| Out Sheath | Sheath Material | PVC (Flame Retardant / RoHS ...) |
| Color | Blue,Black,etc | |
| Rip Cord | 200D×3 | |
| Nom. Thickness | 0.60±0.05mm | |
| Min. Thickness | 0.55mm | |
| Max. overall Dia. |
5.30±0.3mm |

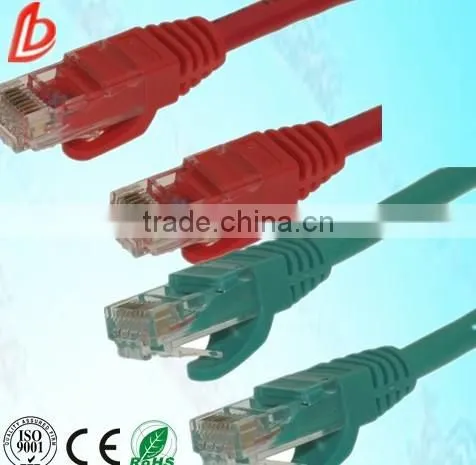

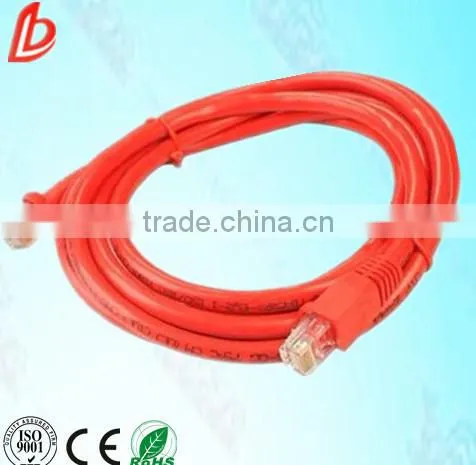

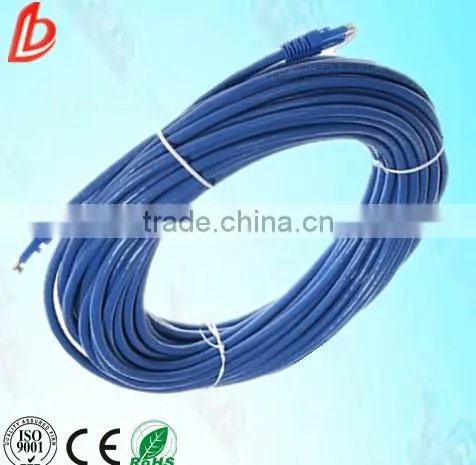

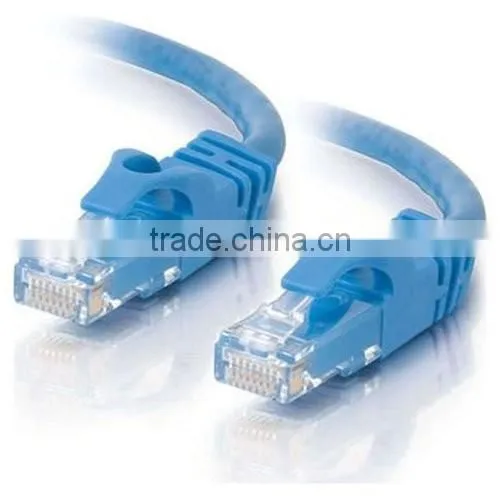

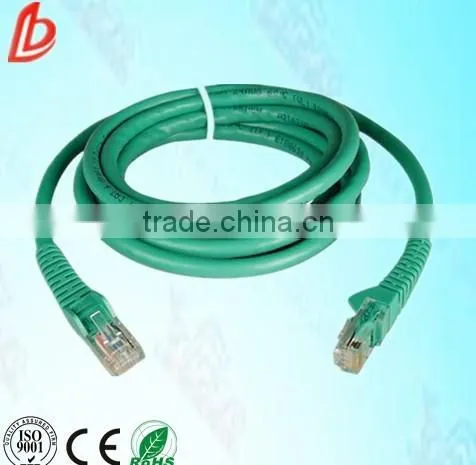

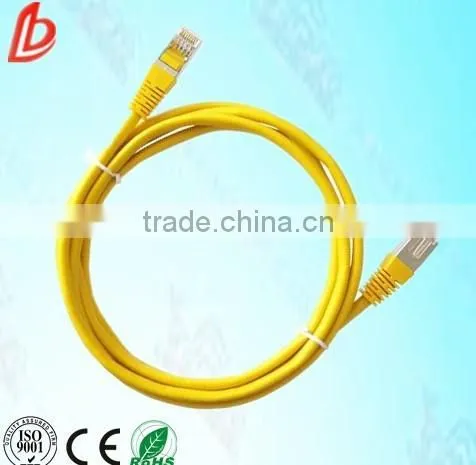

Pictures:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
