305m/box double jacket outdoor utp lan cat6 network cable,utp cat6 patch cables fulke test
Description:
Technical Parameters
1.Characteristic Impedance:100±15Ω(1-100MHz)
2.Nominal Velocity of Propagation(NVP):CMX,CM,CMR,LSZH 69%,CMP 72%
3.Maximum Mutual Capacitance:5.6nF/100m
4.Maximum Capacitance Unbalance:330pF/100m
5.Maximum DC Resistance:9.38Ω/100m
6.Maximum Resistance Unbalance:5%
7.Maximum Propagation Delay Skew:30ns/100m
8.Maximum Propagation Delay:536ns/100m@100MHz
9.Minimum Bending radius: 10×Overall Diameter
10.Voltage Rating:80V rms
11.Maximum Pulling Load: 80N
12.Working Temperature:-5°C~+50°C
13.Storage Temperature:-20°C~+60°C
14.Flame Retardant: UL 1581(CM Jacket); UL 1666(CMR Jacket); UL 910(CMR Jacket);
IEC 60332-1(FRPVC&LSZH Jacket); IEC 60332-1; IEC 60332-3C(LSFROH Jacket)
Application:
Horizontal cabling in working area.Used in voice system,ISDN,
ATM-25/51/155Mbps,10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
Specfication:
Product |
CAT5E/UTP |
Packing |
305m |
Wire size |
4x2x0.51mm (24AWG) |
Jacket |
PVC |
Weight |
23kg/610m |
Wire DC resistance |
17Ω/100m |
Capacitance |
44pF/m |
Impedance |
100±10Ω |
Velocity of propagation |
0,72 |
Delay skew |
<40ns/100m |

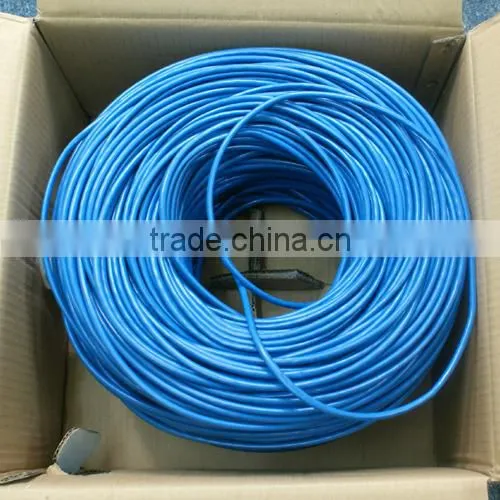

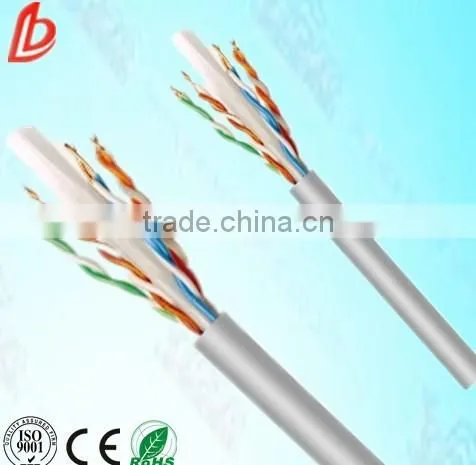

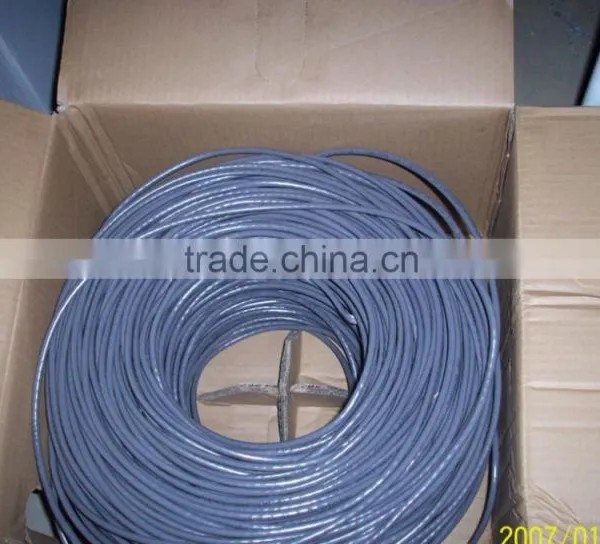

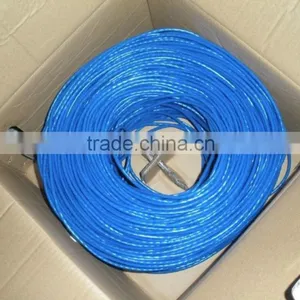

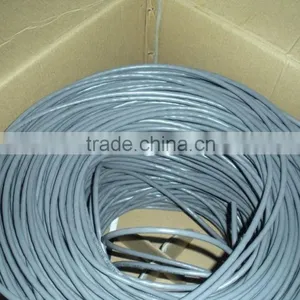

Pictures:
Certificate:

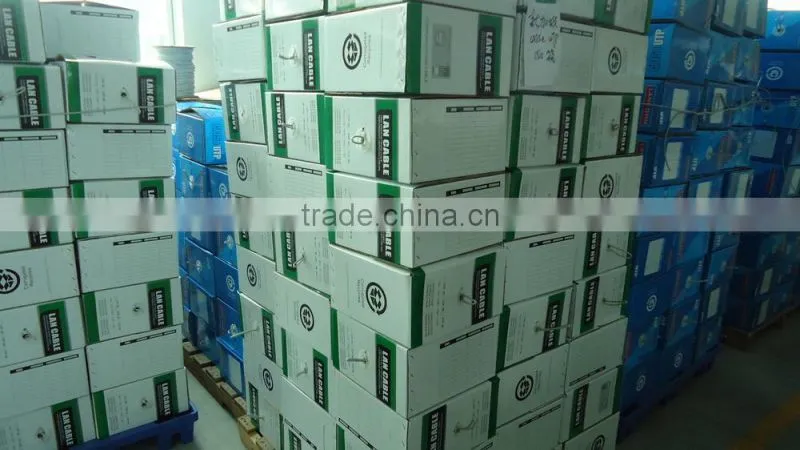

Company information:
Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
Contact us:
Send Inquiry to This Supplier
