2SFP Ports & 4 RJ45 Ports Fiber Optic Media Converter , 10/100/1000Base Fiber Optic Transceiver

2SFP Ports & 4 RJ45 Ports Fiber Optic Media Converter , 10/100/1000Base Fiber Optic Transceiver thumbnail-3

2SFP Ports & 4 RJ45 Ports Fiber Optic Media Converter , 10/100/1000Base Fiber Optic Transceiver thumbnail-4

2SFP Ports & 4 RJ45 Ports Fiber Optic Media Converter , 10/100/1000Base Fiber Optic Transceiver photo-1

2SFP Ports & 4 RJ45 Ports Fiber Optic Media Converter , 10/100/1000Base Fiber Optic Transceiver photo-2

2SFP Ports & 4 RJ45 Ports Fiber Optic Media Converter , 10/100/1000Base Fiber Optic Transceiver photo-3

2SFP Ports & 4 RJ45 Ports Fiber Optic Media Converter , 10/100/1000Base Fiber Optic Transceiver photo-4

US$ 10 - 15 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

Media Converter

Contact Supplier Request Quote Chat Now

Shenzhen BLH Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number Media Converter

2SFP ports & 4 RJ45 ports fiber optic media converter , 10/100/1000Base fiber optic transceiver

Description

Media Converter is 10/100/100Mbps fast Ethernet converter. The converter mediates between a 10/100/1000

BaseTX segment and a 100BaseFX segment. It is primarily designed for large, higher speed/bandwidth

demanding work groups that require expansion of the Ethernet network. It can extend the conventional 10M

Ethernet or 10/100M Fast Ethernet to 20Km120Km via the fast Ethernet Fiberoptical Line. It is high

performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.

Features

1. Half or full duplex auto-negotiation.

2. 10/100/1000 Mbps auto-negotiation for copper port.

3. Plug-and-play installation.

4. SC/FC/ST fiber port optional
5. External power supply.
6.Easy-to-view LED Indicators

Applications

1.Gigabit Ethernet

2.Fiber Channel

3.Other optical transmission systems

4. Integrated transport network point

5.Computer data transmission network to meet a variety of business needs

Specifications

Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x
	FX Link/Act(Fiber link connection status), TX Link/Act(Electric link connection status )
Wavelength	1300nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km; Single-fiber single-mode: 25/40/60/80/100Km Cat5e/6 twisted pairs: 100m
Port	One RJ45 ports: Connected to STP/UTP Cat5e/6 twisted pairs One fiber port: Multi-mode SC or ST (fiber size: 50/125um,62.5/125um) Single mode SC fiber port (fiber size: 9/125um) Single-fiber single-mode SC fiber port (fiber size: 9/125um)
Conversion Mode	Medium conversion, storing and forwarding mode
MAC address table	1K
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half-duplex state: back pressure mode
Delay	<9.6s
Bit error rate	<1/1000000000
MTBF	100,000hours
LED Indicator	PWR (power), FDX (FX full duplex or half duplex mode) FX100(Transfer rate of optical interface), TX100(Transfer rate of electric interface ) FX Link/Act(Fiber link connection status), TX Link/Act(Electric link connection status )
Power	DC5V/1A (External), AC220V 0.5A/DC-48V (Built-in)
Operating temperature	-10~55°C
Operating humidity	5%~90%
Storage temperature	-40~70°C
storage humidity	5%~90% (non-condensing)
Dimensions	External power supply: 26mm70mm95mm (HDW)
	Built-in power supply: 35mm110mm140mm (HDW)

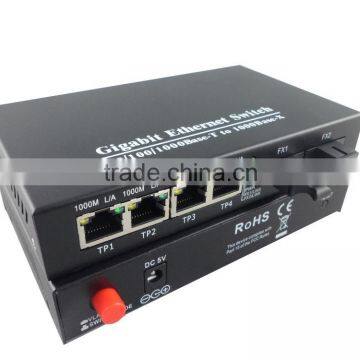

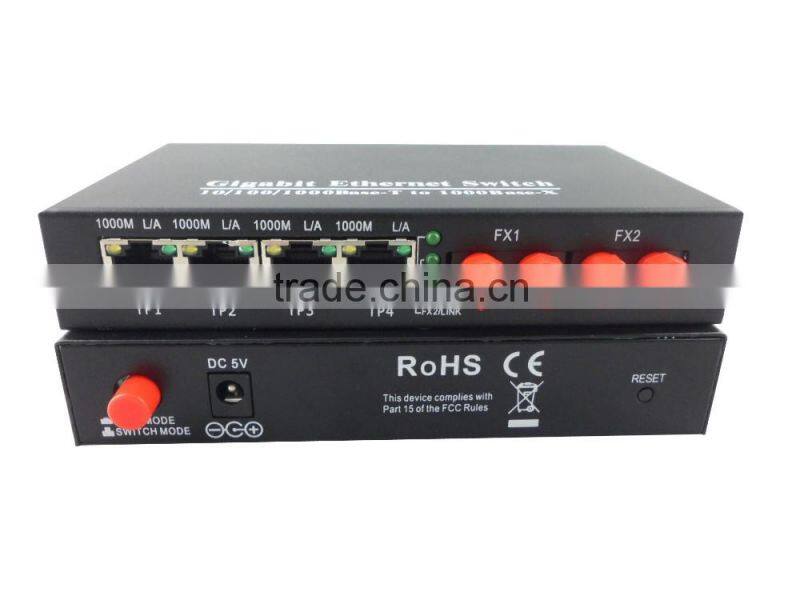

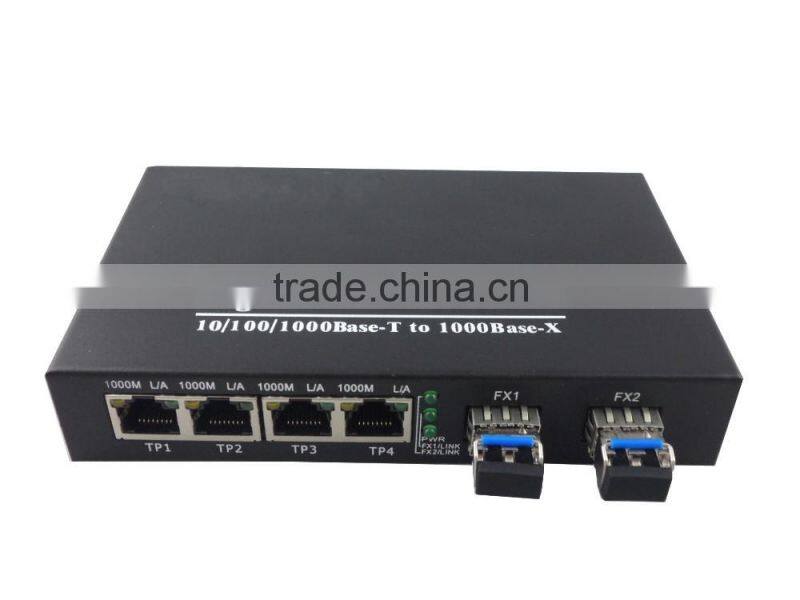

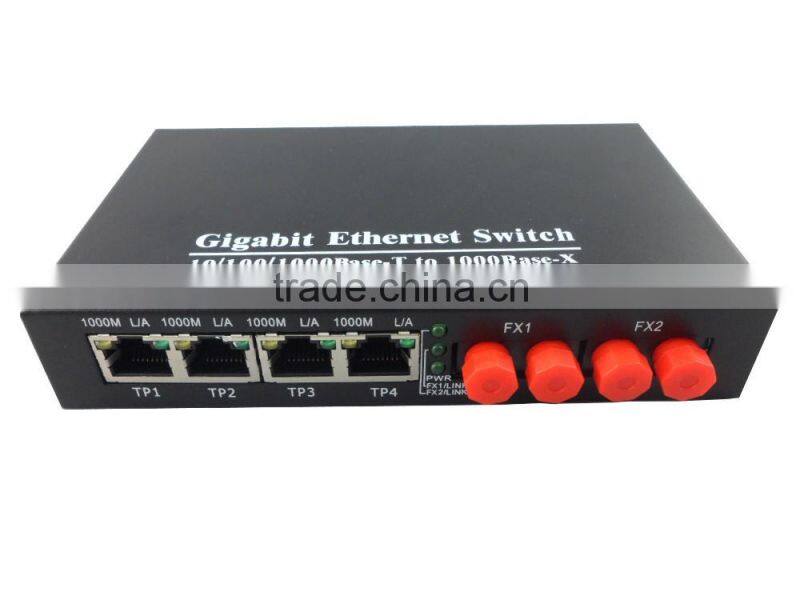

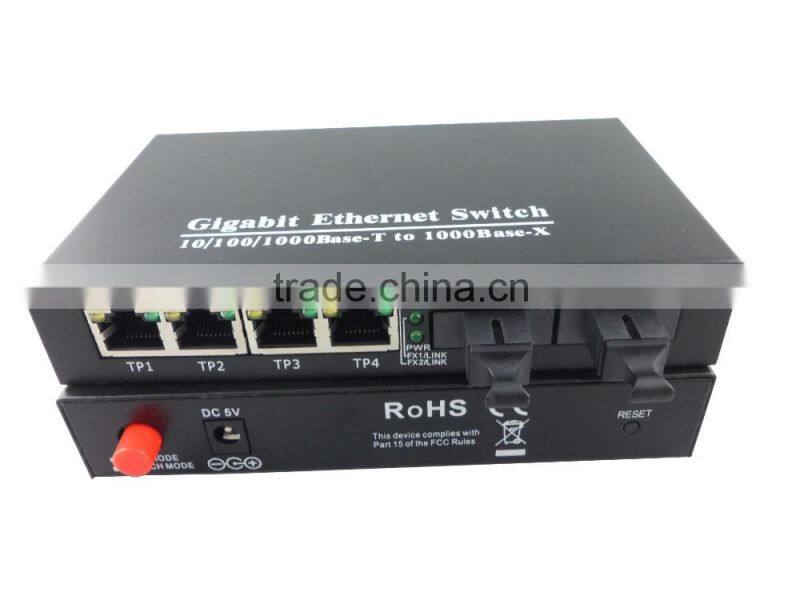

Pictures

Payment and Delievery

Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable

Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
