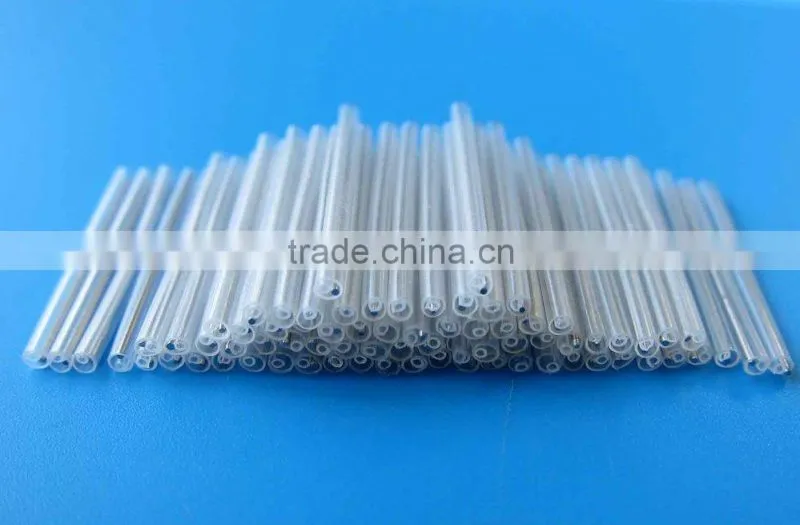

Help CenterCE Standard Fiber Optic Fusion Splice Sleeves
Related Products
-
Fibre Optica Clear Heat Shrink Tubing,cable Protection SleeveUS$ 0.02 - 0.1MOQ: 10000 Pieces -
Strainless Steel Fiber Optic Cable Protection Sleeves,heat Shrinkable Protection SleevesUS$ 0.01 - 0.03MOQ: 50 Pieces
-
Durable Waterproof 40mm Optic Fiber Heat Shrink TubeUS$ 0.02 - 0.07MOQ: 100 Pieces
-
Standard 1.5mm Steel Rod Fiber Optic Splice Cable Flexible Protection SleeveNegotiableMOQ: 100 Pieces
-
Heat Shrinkable Fiber Optical Fusion Splice Protection Sleeves 60mm,fiber Optic Cable Protection Sleeves for Fiber Splice ClosurNegotiableMOQ: 100 Pieces
Specifications
fusion splice sleeves1.a rod of reinforcing the splice
2.cross-linked polyolefin
3.Moisture resistance
4.ROHS,CE
60mm 50mm 45mm 40mm 30mm 20mm fusion splice sleeves /fiber optic protection sleeves/fiber optic heat shrink sleeves/fiber optic fusion splice protection sleeve
Description:
The product contains cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve makes it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.
Features:
1. Operating Temperature:-45 degree - 125 degree;
2. Shrink Temperature:120 degree;
3.Longnitudinal Shrink ratio≤±8%;
4. Waterproof, RoHS compliant.
Applications:
Consist of a rod of reinforcing the splice, hot fusion tubing and cross-linked polyolefin.
To rebuild the coating of fiber to provide mechanical strength at the fusion joint area and keep optical transmission properties.
Performance Index:
optic fiber heat shrink tube
Performance |
Test Method |
Typical data |
Tensile strength |
ASTM D 2671 |
18MPa |
Elongation at break |
ASTM D 2671 |
700% |
Density |
ISO R1183D |
0.94g/cm3 |
Dielectric strength |
IEC243 |
25KV/mm |
volume resistance |
IEC243 |
1015Ω.cm |
Length changes |
ASTM D 2671 |
±5% |
