Specifications
lc fiber optical pigtail1.Low Insertion Loss ,High Return Loss
2.Good Exchangeability
3.High Temperature Stability

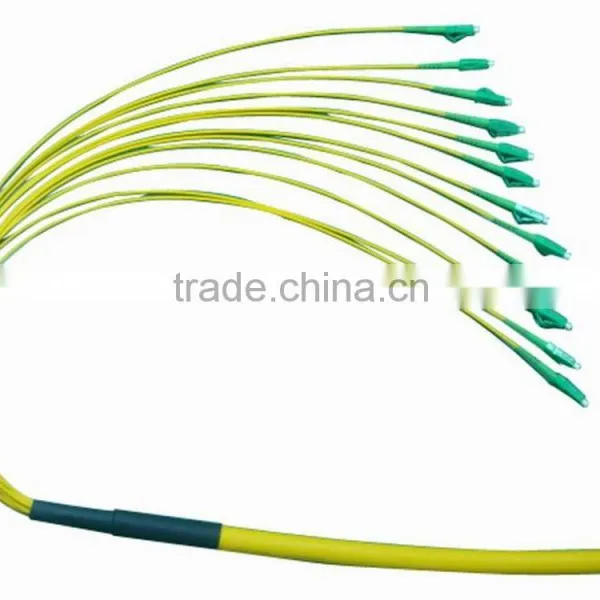

12 cores bundle fan-out fiber optical pigtail/lc fiber optic pigtails
1.Description:
The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with
connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber
cable with only one connector fixed on one end. If both sides of the connector or its end-face are
different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode
and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,
LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
2.Features:
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
3.Applications:
FTTH, LAN, Test equipment, Military industryCATVOutside plantPremise networksAerial distributionMeasuring equipmentsFiber optic communication systemOptical active component and equipment
4.Specifications:
Item |
Mode Type |
PC |
SPC |
UPC |
APC |
Insertion Loss |
SM |
≤0.25dB |
≤0.20dB |
≤0.20dB |
≤0.20dB |
MM |
≤0.30dB |
≤0.20dB |
≤0.20dB |
≤0.30dB |
|
Return Loss |
SM |
≥45dB |
≥50dB |
≥55dB |
≥65dB |
MM |
≥35dB |
≥35dB |
≥35dB |
≥35dB |
|
Repetition Test |
Additional Loss≤0.1dB,Reture Loss Variability<5dB |
||||
Temperature Stability(-40°C~85°C) |
Additional Loss≤0.2dB,Reture Loss Variability<5dB |
||||
Operating Temperature |
-40°C~+80°C |
||||
Storage Temperature |
-40°C~+85°C |
||||
-Option:CableDiameters;0.9,2mm,3mm&others |
|
|
|
||
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR |
|
||||

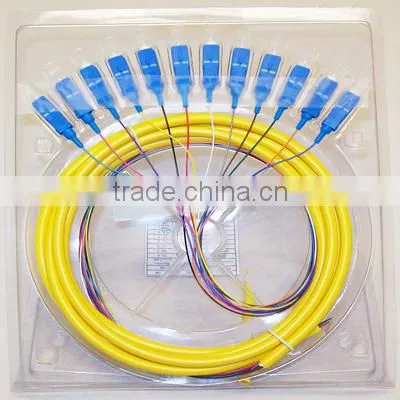

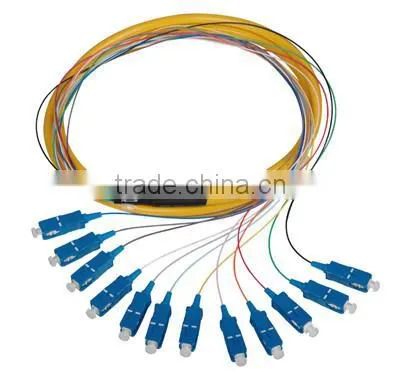

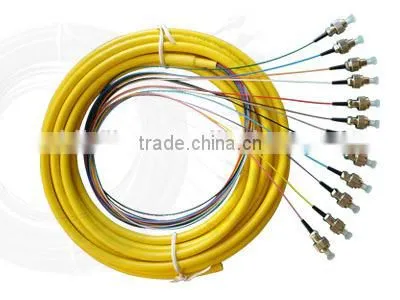

5.Pictures:
6.Papyment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
