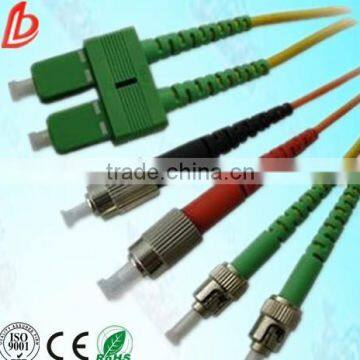

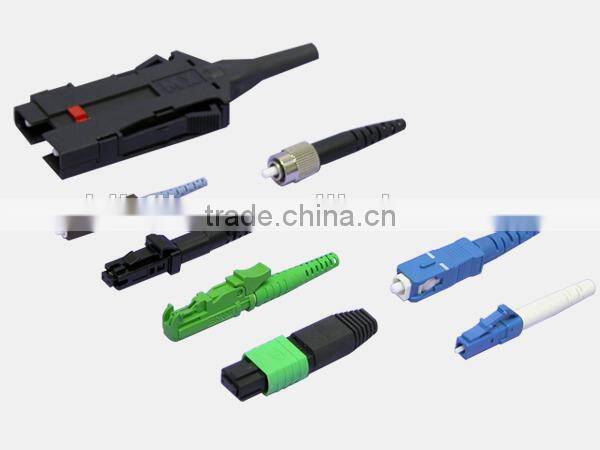

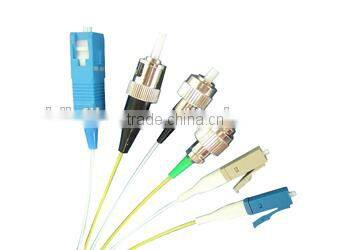

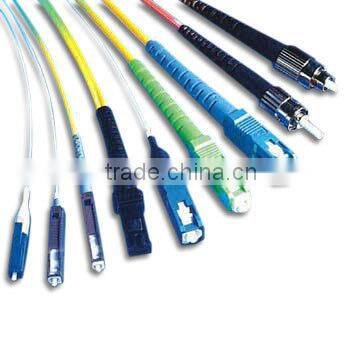

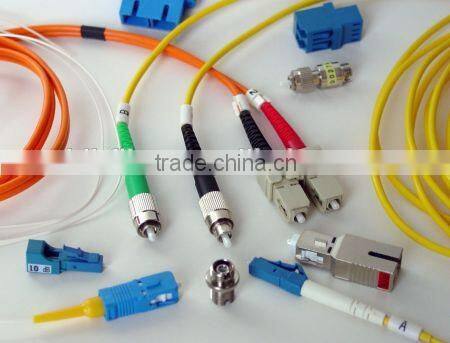

Standard E2000 SC LC ST FC connector fiber patch cords with pvc jacket
Description:
Fiber optic patch cords suited for equipment jumper cable, cross connects, and work area connections. All patch cords are
manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIAstandards. ST/ST,
SC/SC and hybrid ST/SC Patch Cords are available in both multimode (62.5/125µm and 50/125µm) and single mode cable-types, in duplex and simplex versions.
Features:
1.Low insertion loss,
2.High return loss
3.Manufactured by our own factory
4.Good repeatability and exchangeability
Applications:
1.Communication Workshop
2.FTTH
3.Local Area Network
4.Fiber Sensor
5.CATV
6.Fiber Optical Communication System
Specifications:
Parameter |
Unit |
FC, SC, LC,ST fiber optic patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss(typical) |
dB |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.3 |
Return loss |
dB |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 35 |
≥ 55 |
≥ 75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Vibration |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Operating temperature |
|
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
|
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
3.0, φ 2.0, φ 0.9 |
3.0, φ 2.0, φ 0.9 |
3.0, φ 2.0, φ 0.9 |
3.0, φ 2.0, φ 0.9 |
||||||||
Availabilities:
1.Full specifications, FC, SC, ST, LC, MTRJ, E2000, etc.
2.Simplex and Duplex assemblies available
3.Singlemode and multimode available
4.PC, UPC and APC polishing available
5.PVC and LSZH outer sheath.
6.0.9mm, 2.0mm and 3.0mm cable size.
pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
