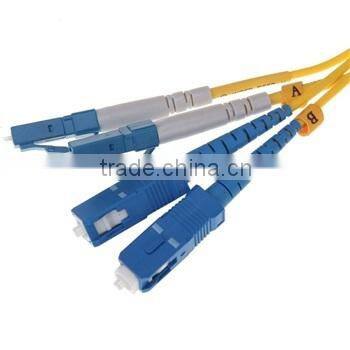

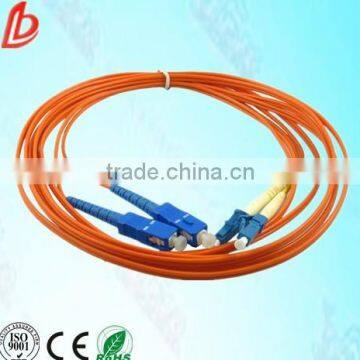

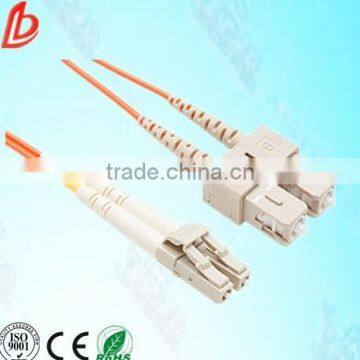

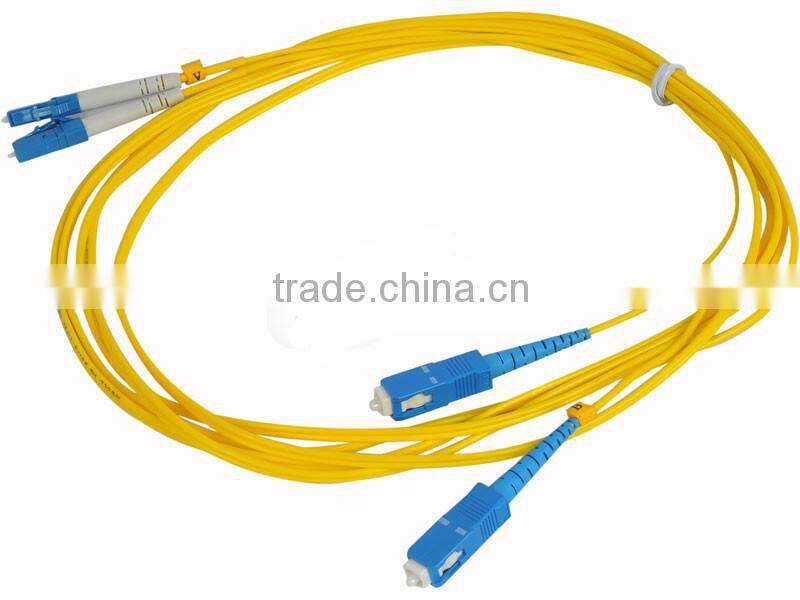

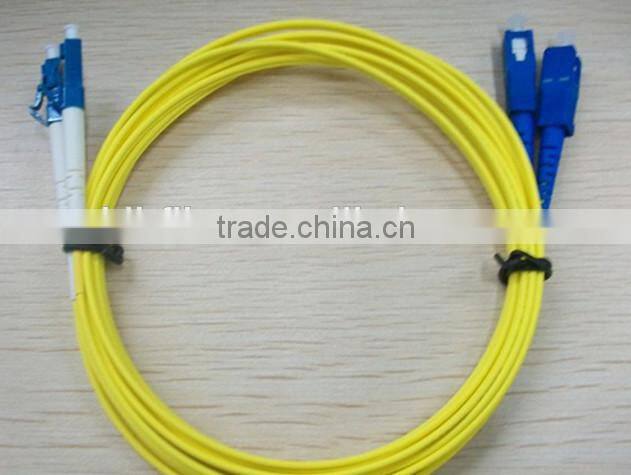

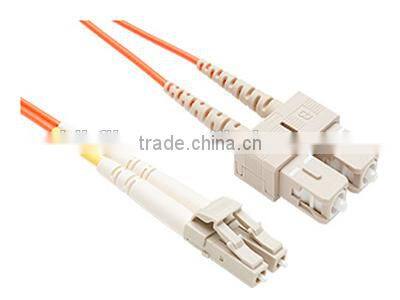

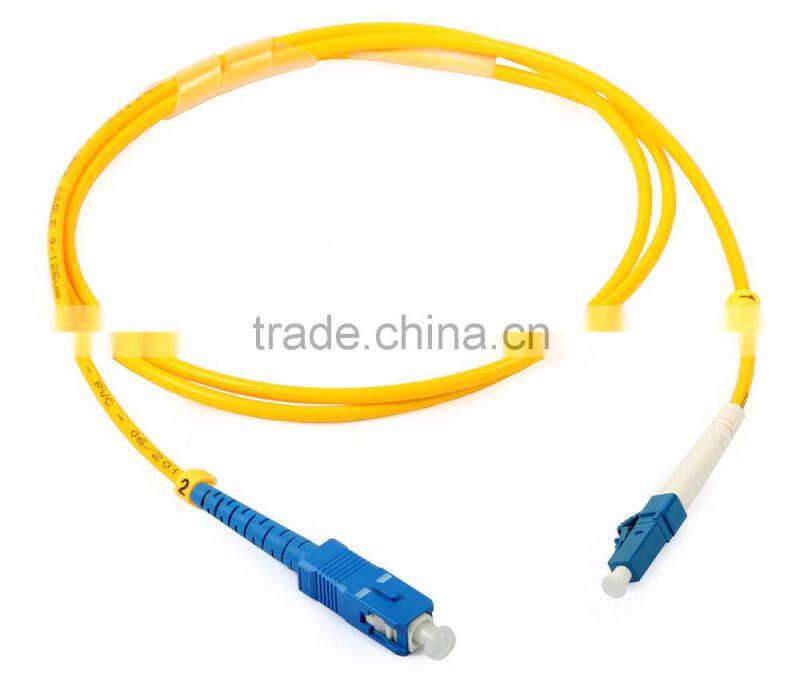

9/125 simplex sc/upc-lc/upc fiber optic patch cables
Description:
Fiber optic patch cords suited for equipment jumper cable, cross connects, and work area connections. All patch cords are
manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIAstandards. ST/ST,
SC/SC and hybrid ST/SC Patch Cords are available in both multimode (62.5/125µm and 50/125µm) and single mode cable-types, in duplex and simplex versions.
Features:
1.Low insertion loss,
2.High return loss
3.Manufactured by our own factory
4.Good repeatability and exchangeability
Applications:
1. Communication Workshop
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV
6. Fiber Optical Communication System
Specifications:
Parameter |
Unit |
FC, SC, LC,ST fiber optic patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss(typical) |
dB |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.3 |
Return loss |
dB |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 35 |
≥ 55 |
≥ 75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Vibration |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Operating temperature |
|
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
|
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
3.0, φ 2.0, φ 0.9 |
3.0, φ 2.0, φ 0.9 |
3.0, φ 2.0, φ 0.9 |
3.0, φ 2.0, φ 0.9 |
||||||||
Availabilities:
- Full specifications, FC, SC, ST, LC, MTRJ, E2000, etc.
- Simplex and Duplex assemblies available
- Singlemode and multimode available
- PC, UPC and APC polishing available
- PVC and LSZH outer sheath.
- 0.9mm, 2.0mm and 3.0mm cable size.
- Hybrid patch cords are available upon request
- Pigtail available
- Loopback available
- Customized length
pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
