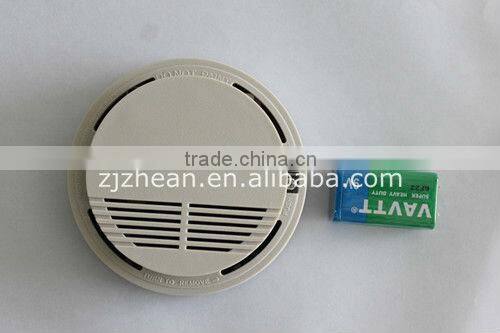

Fire Alarm Smoke Detector Price/Unique Smoke Alarm/Smoke Detector Housing
Specification
Power Source: 9-24V DC
Operating Current: 10 μA (normal) and 10-30 mA (alarm working)
Output mode: Alarm with sound and light.
Sensitivity to smoke: In comply with UL217 (Test in factory,the alarm worked when smoke deepness is 3.2%/FT).
Operating Environmen: TMP : -5°C - 50°C RH : 10%~90% No Condensation
Alarm volume : ≥75 dB
Install And Use

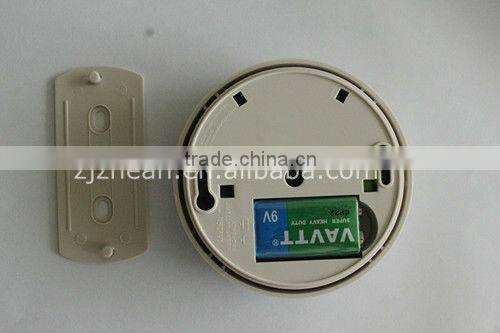

Chooses the suitable place first.And then fix the foundation with screws.Turn the sensor on the foundation according to the color of lines. One sensor in 25~40 square meter ,0.5~2.5m above important equipment.
Red line ——12V
Black line——Ground
Blue line—— Common
White line——Normal Close
Green line——Normal Open
Work & Test mode
The alarm is working when it’s on.The led twinkles once every minute. The alarm makes clear and pulse signal with sound and light while there is smoke. And output several point signal or wireless signal for gathering till the smoke is gone.
While press the test button and hold on for over 3 seconds, the alarm will make a clear and loud pulse signal. And the led twinkles frequently, the alarm give off sound like “Di…
Di…”
Attentions
Don’t install the alarm at wetness or strong wind place.
To keep the alarm working well,please clean it every six months.
(Turn off the alarm,and then sweep it with soft brush,turn on it when it’s over.)
Price just subject to final confirmation,if you have any questions,pls feel free to contact us.we will try our best to service for you !
Certificate:
Customer Visit our Factory:
Factory View:
Manfacturing Shop:
