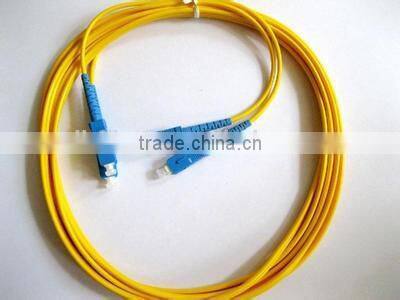

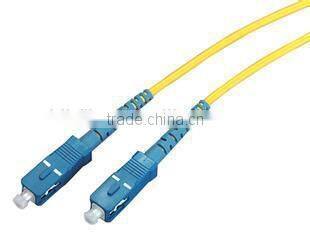

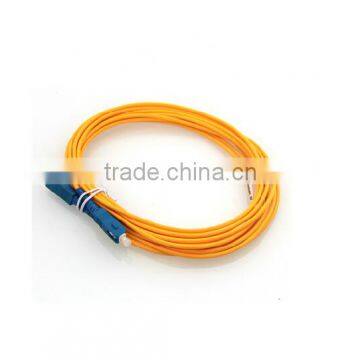

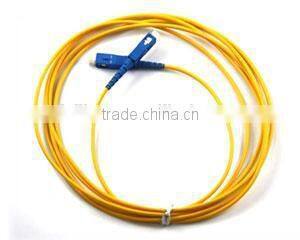

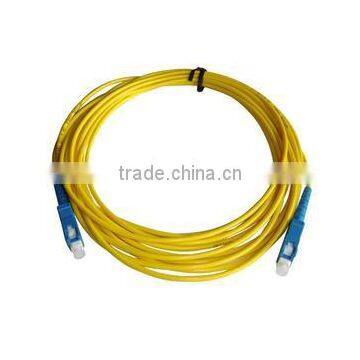

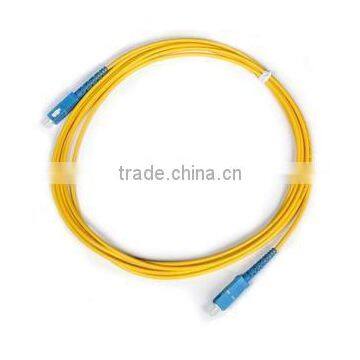

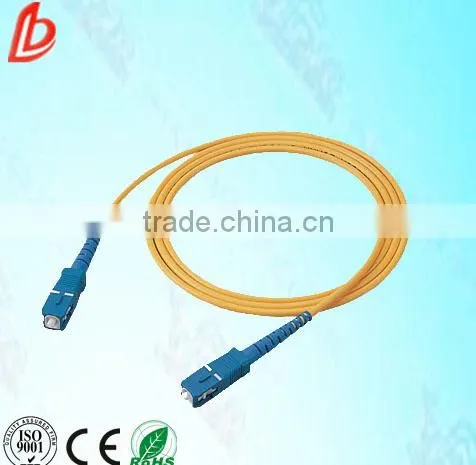

SC-SC Singlemode Simplex Fiber Optic Patch Cord 1.0mm 2.0mm 3.0mm can optional
Description:
Fiber optic patch cords suited for equipment jumper cable, cross connects, and work area connections. All patch cords are
manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIAstandards. ST/ST,
SC/SC and hybrid ST/SC Patch Cords are available in both multimode (62.5/125µm and 50/125µm) and single mode cable-types, in duplex and simplex versions.
Features:
1.Low insertion loss,
2.High return loss
3.Manufactured by our own factory
4.Good repeatability and exchangeability
Applications:
1. Communication Workshop
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV
6. Fiber Optical Communication System
Specifications:
Parameter | Unit | FC, SC, LC,ST fiber optic patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.3 |
Return loss | dB | ≥ 45 | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 35 | ≥ 55 | ≥ 75 |
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
Operating temperature |
| -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature |
| -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable diameter | mm | 3.0, φ 2.0, φ 0.9 | 3.0, φ 2.0, φ 0.9 | 3.0, φ 2.0, φ 0.9 | 3.0, φ 2.0, φ 0.9 | ||||||||
Availabilities:
1.Full specifications, FC, SC, ST, LC, MTRJ, E2000, etc.
2.Simplex and Duplex assemblies available
3.Singlemode and multimode available
4.PC, UPC and APC polishing available
5.PVC and LSZH outer sheath.
pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
