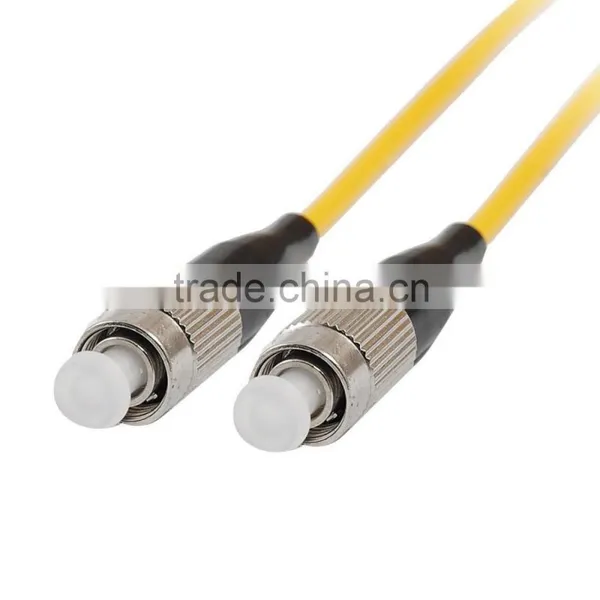

Best quality Manufacturer Single mode Simplex FC Fiber Optic Patch Cords
Description:
Fiber optic patch cord is popular for many years. It uses a 2.5 mm ferrule, but some of the early ones use ceramic inside stainless steel ferrules. Its' screws on firmly, but you must make sure you have the key aligned in the slot properly before tightening. As a result of this characteristics for easy assemblies and installation, Our FC Fiber Optic Pigtails are every competitive.
Features:
fiber optic patch cord
Low insertion loss,
High return loss
Good repeatability and exchangeability
Applications :
1. Communication Workshop
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV
6. Fiber Optical Communication System
Specifications:
singlemode/multimode simplex/duplex fiber optic patch cord
Parameter |
Unit |
FC, SC, LC,ST fiber optic patch cord |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss(typical) |
dB |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.2 |
≤ 0.2 |
≤ 0.3 |
≤ 0.3 |
Return loss |
dB |
≥ 45 |
≥ 50 |
≥ 60 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 30 |
≥ 45 |
≥ 50 |
≥ 35 |
≥ 55 |
≥ 75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Vibration |
dB |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
≤ 0.2 |
||||||||
Operating temperature |
|
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
|
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
3.0, 2.0, 0.9 |
||||||||
Availabilities:
- Full specifications, FC, SC, ST, LC, MTRJ, E2000, etc.
- Simplex and Duplex assemblies available
- Singlemode and multimode available
- PC, UPC and APC polishing available
- PVC and LSZH outer sheath.
- 0.9mm, 2.0mm and 3.0mm cable size.
- Hybrid patch cords are available upon request
- Pigtail available
- Loopback available
- Customized length
pictures:
Certificate:
Company information:
Payment and Delievery:
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
