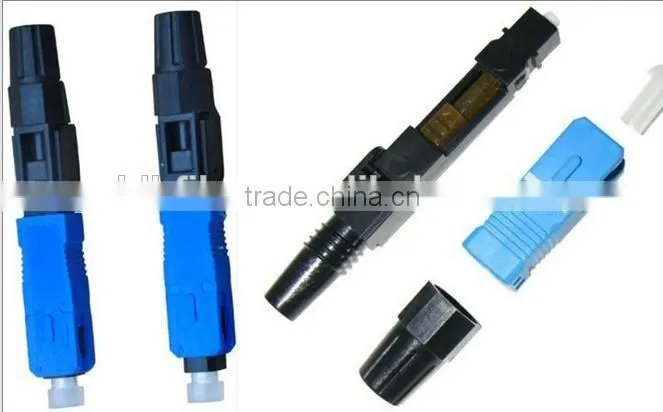

High quality FTTH SC UPC fiber optic field assembly fast connector
Description
SC/APC fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type, which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for installation, the structure of crimping position is a unique design.
Feature
1.Easy to operate can save time
2.100% qualified, reduce the maintenance cost.
3.Easy to assembling with mechanical splice and no polishing
4.High stablity ,low insertion loss ,high return loss.
Specification
ITEM |
Technical Parameters |
Application |
FTTH indoor&outdoor |
Optical fiber diameter |
125μm ( 657A & 657B ) |
Tight buffer diameter |
250μm |
Fiber mode |
Single mode |
Operation time |
About 100s(no fiber cut) |
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
Return loss |
≤ -50dB |
Fastening strength of naked fiber |
>5 N |
Fastening strength of naked fiber holder |
>10 N |
Tensile strength |
>50 N |
On-line tensile strength (20 N) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Using temperature |
-40~+75°C |
Pictures
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
