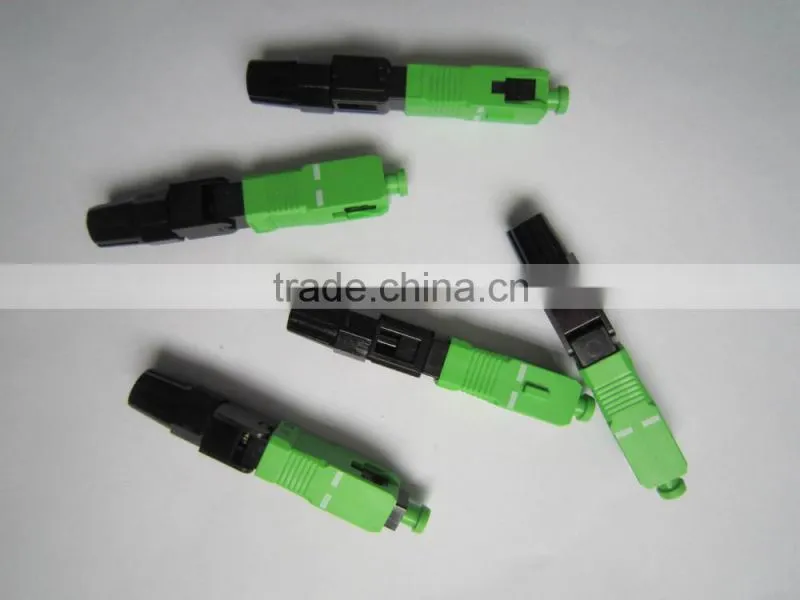

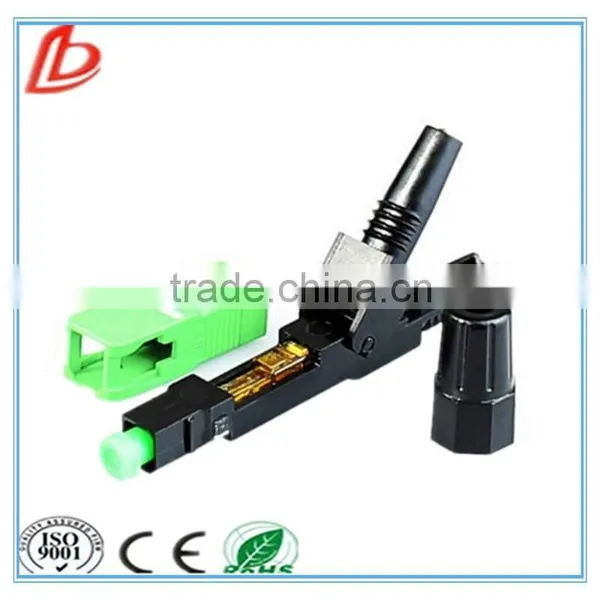

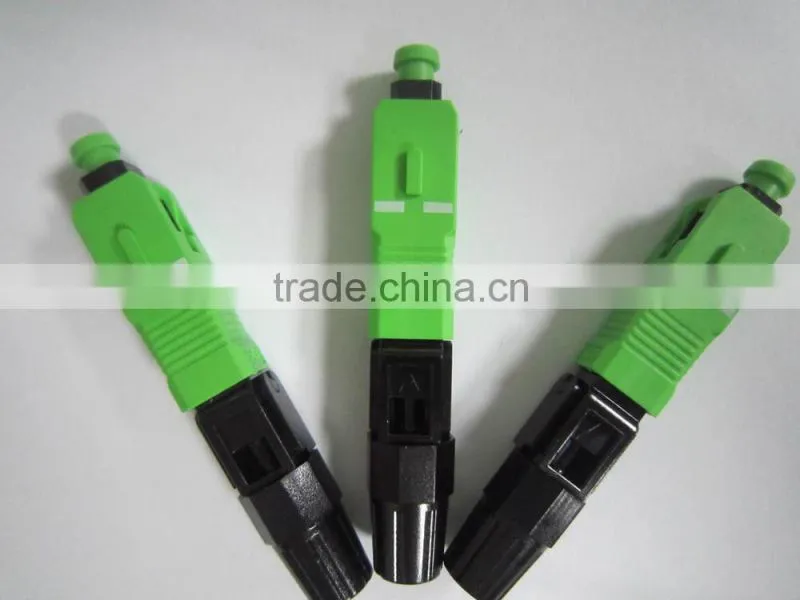

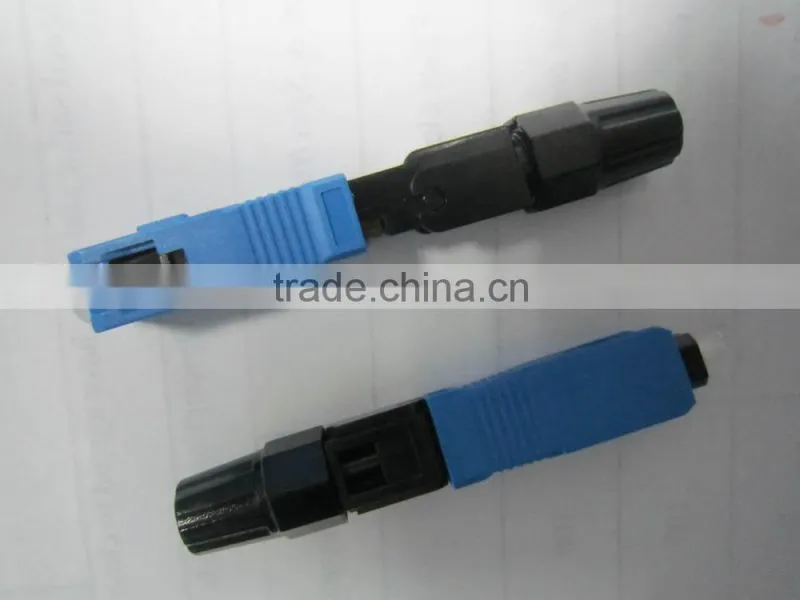

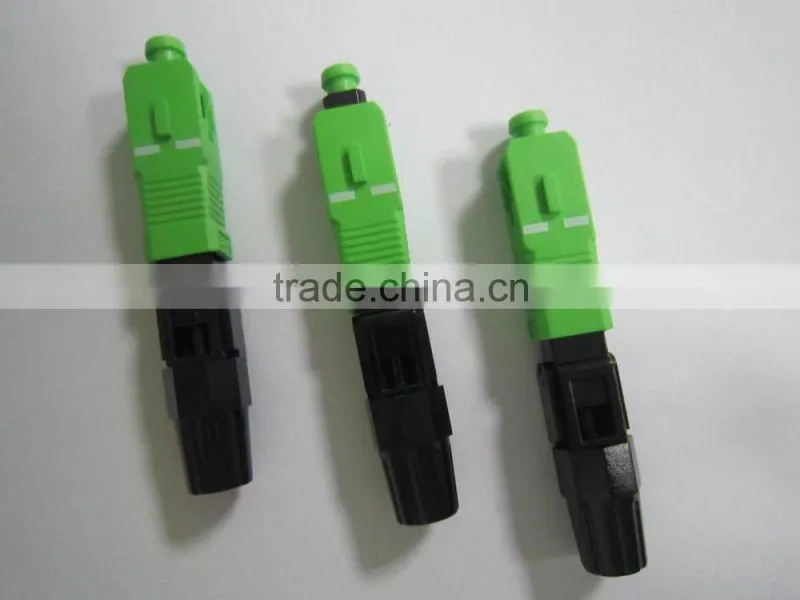

sc/apc fast connector/fast field assembly optical conector for ftth drop cable
Specifications
1.easily installed;
2.made on-site without splicing connectors ;
3.fast connecting
4.insertion loss: 0.2dB
5. return loss: upc ≥50 apc ≥60
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.2dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE
Description:
Item |
Unit |
Condition |
Parameter |
Operating Wavelength |
Nm |
1310/1550 |
|
Attenuation Range |
dB |
1dB-10dB |
<0.5 |
dB |
11dB-20dB |
<1 |
|
Return Loss |
dB |
PC |
≥50 |
dB |
APC |
≥60 |
|
Attenuation Tolerance |
dB |
||
Working Temperature |
°C |
-40~+80 |
|
Storage Temperature |
°C |
-40~+80 |
|
Noted: LC, FC, SC, ST, is available as per customers' drawings. | |||

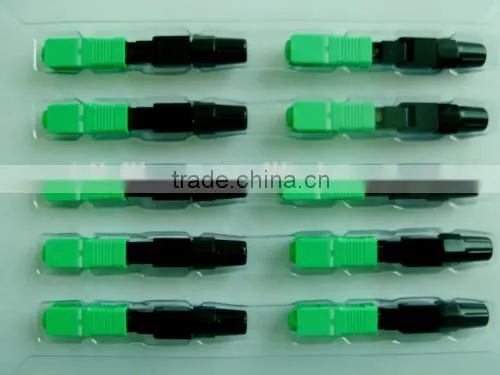

Pictures:
Compnay information:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
