Chinese fiber optic FAST Connector with factory price applied to FTTH cable in FTTH projects
Specifications
1.SC/APC Optical Fast Connector
2.No epoxy, no polishing, no splicing, no heating
3.Field installable, cost effective, user friendly
4.Fiber cable fast connector
5.Make fiber terminations quick, easy and reliable
Features
1.No special tools needed when installed;
2.Can be made on-site without splicing connectors ;
3.Only 30 seconds needed to learn the process of installation and making;
4.Can be intalled and maked repeatedly thus avoiding loss
Desciption
Item |
Parameter |
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable |
Fiber Diameter |
125μm ( 652 & 657 ) |
Coating Diameter |
250μm |
Mode |
SM |
Operation Time |
about 15s(exclude fiber presetting) |
Insertion Loss |
≤ 0.25dB(1310nm & 1550nm) |
Return Loss |
≤ -45dB |
Success Rate |
>98% |
Reusable Times |
>10 times |
Tensile Strength |
>5 N |
Tighten Strength of Coating |
>10 N |
Temperature |
-40~+85°C |
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |

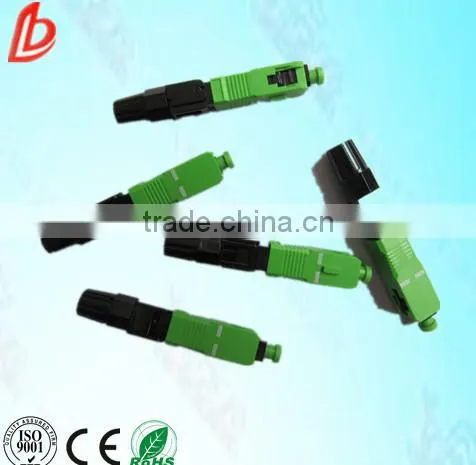

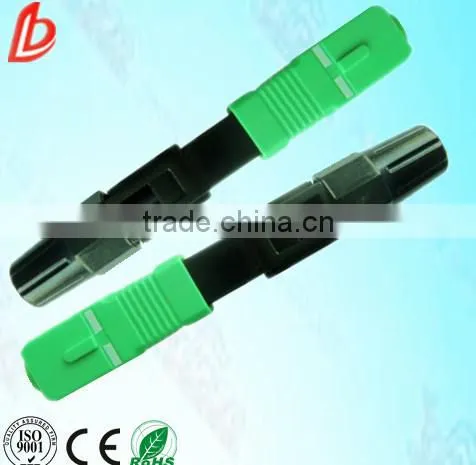

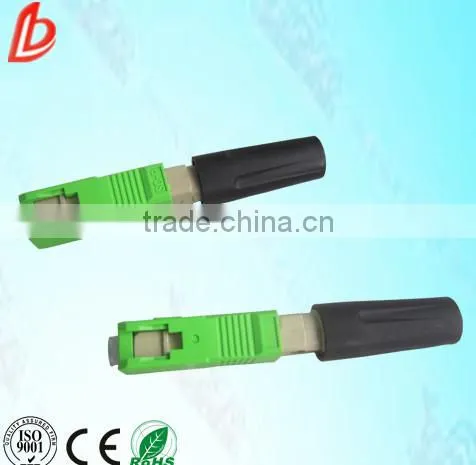

Pictures
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
