Portable Fire Pump/Fire Pump Used /Centrifugal Fire Fighting Pumps

Specifications

Portable Fire Pump/Fire Pump Used /Centrifugal Fire Fighting Pumps

Portable Fire Pump/Fire Pump Used /Centrifugal Fire Fighting Pumps



1.Light weight

2.low noise
3.low fuel consumption
4.low emission
5.Portable design

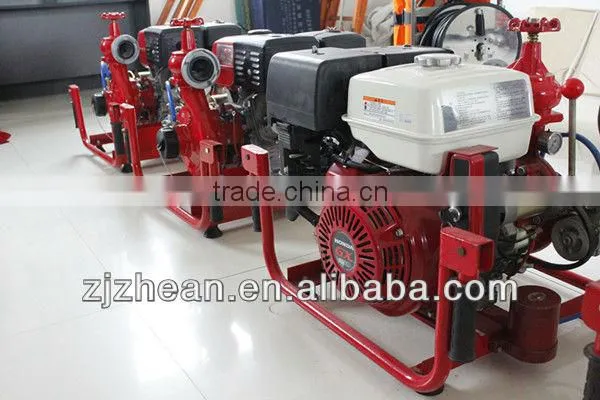

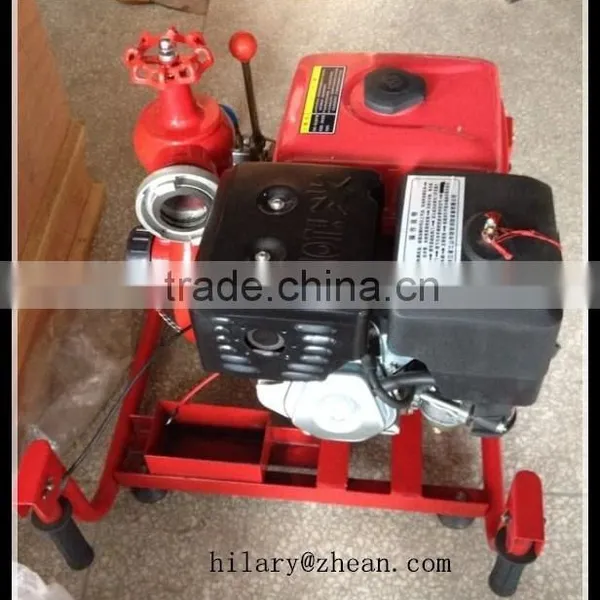

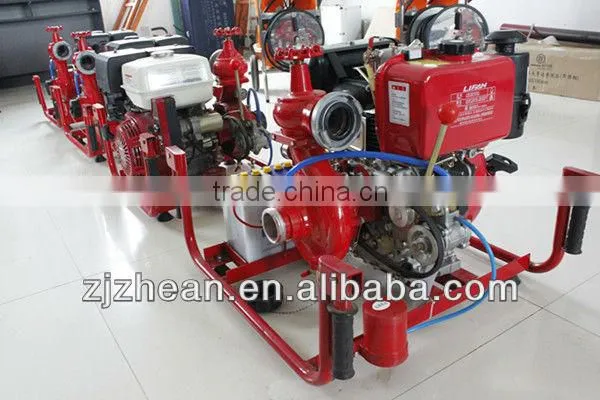

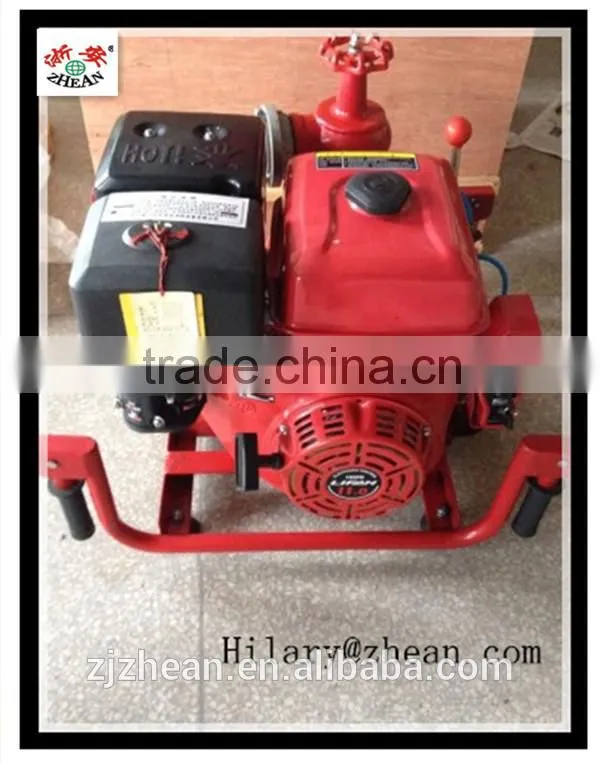

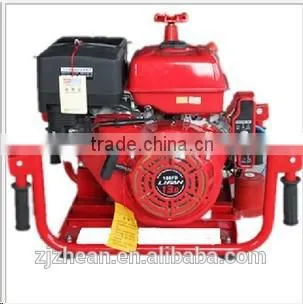

Portable fire pump with engine is consist of gasoline engine and single-stage centrifugal pump.

it is convenient, simple structure, light weight . compact structure and high efficiency.

Rational layout, compact structure, small in size, light in weight, excellent dynamic characteristics, high efficiency and short priming time.







9HP/11HP/13HP/15HP SAME APPARANCE, DIFFERENCE ENGINE(LIFAN EGINE)

13HP, HONDA ENGIN AVAILABLE

22HP AVAILABLE

10HP DIESEL PUMP AVAILABLE





Model:177FD(9HP)(Petrol)



1)     Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)     Bore*Stroke:77*58mm



3)     Max.Output KW(r/min):6.6kw(9ps)/3600r/min



4)     Max.Torque N.M(r/min):16.4N.m/2500r/min



5)     Ignition System:T.C.I



6)     Starting System:Recoil starter,electric starter



7)      Oil Consumption:374g/kwh

8)     Pump Lift: 42M

9)     Rated Flow: 420L/Min



10)    Water pump output:  65mm



          Water pump inlet:      65mm





Model:182FD(11HP)(Petrol)



1)    Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)    Bore*Stroke:82*64mm



3)    Max.Output KW(r/min):8.1kw(11ps)/3600r/min



4)    Max.Torque N.M(r/min):21.0N.m/2500r/min



5)    Ignition System:T.C.I



6)    Starting System:Recoil starter,electric starter



 7)     Oil Consumption:374g/kwh

8)     Pump Lift: 45M

9)     Rated Flow:468L/Min



10)   Water pump output:  65mm



         Water pump inlet:      65mm





Model:188FD(13HP)(Petrol)



1)     Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)    Bore*Stroke:88*64mm



3)    Max.Output KW(r/min):9.6kw(13ps)/3600r/min



4)    Max.Torque N.M(r/min):23.0N.m/2500r/min



5)    Ignition System:T.C.I



6)   Starting System:Recoil starter,electric starter



7)     Oil Consumption:374g/kwh

8)     Pump Lift: 50M

9)     Rated Flow:570L/Min



10)   Water pump output:  65mm



        Water pump inlet:      65mm



Model:190FD(15HP)(Petrol)



1)     Engine Type:Forced air-covled 4 stroke OHV,single cylinder.



2)    Bore*Stroke:90*66mm



3)    Max.Output KW(r/min):11kw(9ps)/3600r/min



4)    Max.Torque N.M(r/min):25.0N.m/2500r/min



5)    Ignition System:T.C.I



6)    Starting System:Recoil starter,electric starter



7)     Oil Consumption:374g/kwh

8)     Pump Lift: 53M

9)     Rated Flow:600L/Min



10)   Water pump output:  65mm



        Water pump inlet:      65mm
