lc adaptor types fixed lc attenuator / fixed optical attenuator
Descriptions:
A fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is a requirement in dense wave division multiplexing and erbium doped firer amplifier applications where the receiver cannot accept the signal generated from a high power light source.
Specifications:
1.high durability
2.attenuation levels range from 1 to 30 dB
3. LC/SC/FC/ST
4. metal-ion doped fiber
Features:
1.Low insertion and back reflection loss, high precision alignment
pliance with TIA/IEA,IEC,ROHS
3.Compact design
4.High stablitity
Applications:
1.CATV network
2.EDFA,DWDM,long-haul
3.Telecommunication networks
4.Metro; Multimedia
5.Gigabit Ethernet,etc.
Performance index:
Parameters |
FC,SC, LC, ST, MU, DIN, E2000, MTRJ, Hybrid |
Attenuation Range |
0dB ~ 30dB |
Operation Wavelength |
SM: 1260-600nm, or 1310nm/1550nm |
MM:850nm, 1310nm | |
Return Loss |
≤50dB (PC) |
≤55dB (UPC) | |
≤65dB (APC) | |
Attenuation Accuracy |
±0.5dB (1 ~ 10 dB) |
±10% of Attenuation Value (11~30 dB) | |
Polarization Dependent Loss (PDL) |
≤0.2dB |
Exchangeability |
≤0.2dB |
Repeatability |
≤0.2dB |
Durability |
≤0.2dB Typical 1000 matings |
Maximum Optical Input Power |
200mW |
Operating Temperature |
-20 ~ +75°C |
Storage Temperature |
-40 ~ +85°C |

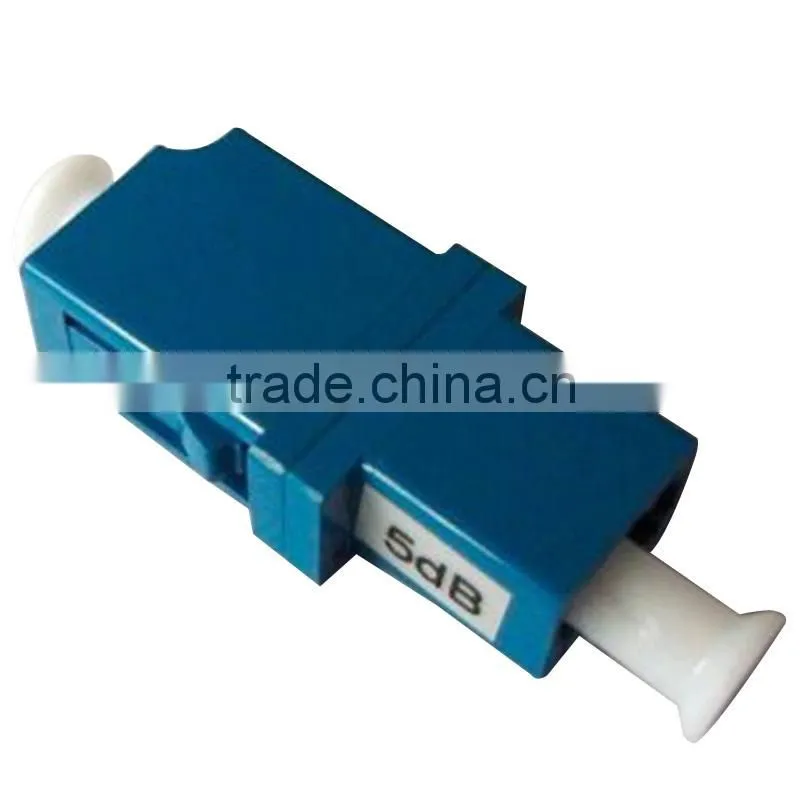

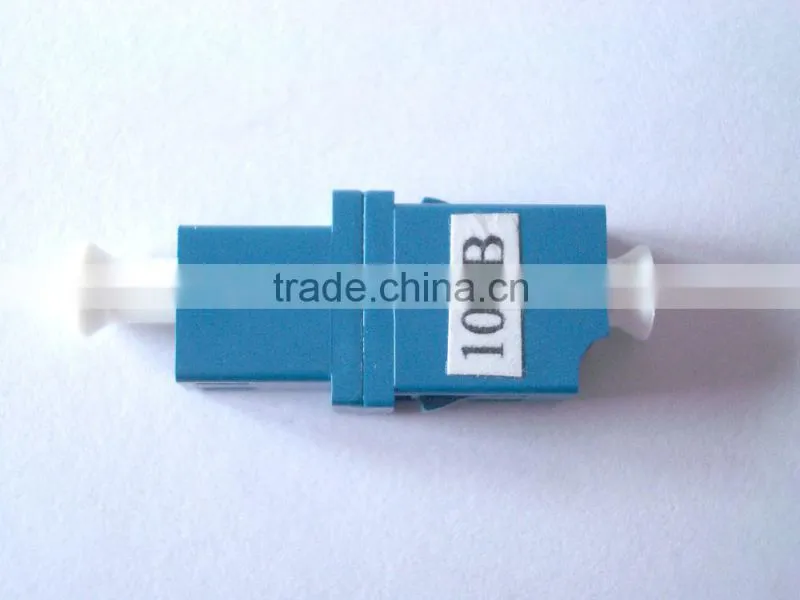

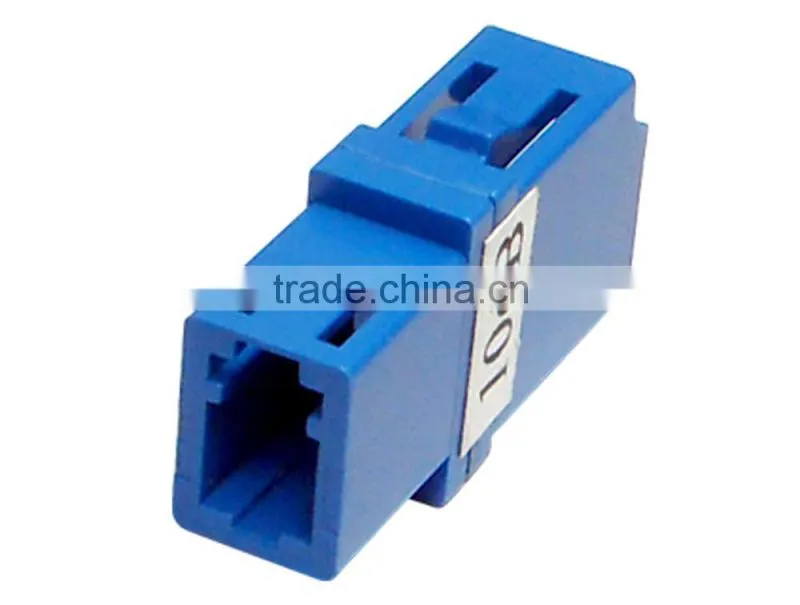

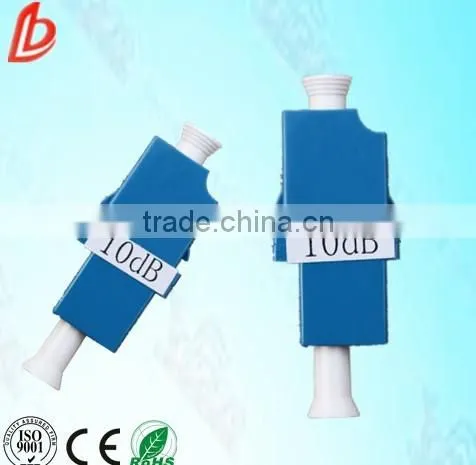

Pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
