Good performance sc APC UPC polishing fixed fiber optical attenuator
Descriptions:
A fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is a requirement in dense wave division multiplexing and erbium doped firer amplifier applications where the receiver cannot accept the signal generated from a high power light source.
Specifications:
1.high durability
2.attenuation levels range from 1 to 30 dB
3.LC/SC/FC/ST
tal-ion doped fiber
Features:
1.Low insertion and back reflection loss, high precision alignment
2.Compliance with TIA/IEA,IEC,ROHS
3.Compact design
4.High stablitity
Applications:
1.CATV network
2.EDFA,DWDM,long-haul
3.Telecommunication networks
4.Metro; Multimedia
5.Gigabit Ethernet,etc.
Performance index:
Item |
Specifications |
Wavelength |
SM=1310 nm &1550 nm ,MM=850nm |
Attenuation Tolerance (dB) |
1-10dB<±0.7dB ( typical ) standard |
11-30dB<±7% ( typical ) standard | |
Return Loss |
RL≥50dB (UPC) ,RL≥60dB (APC) |
Operating Temperature |
-40°C~+75°C |
Storage Temperature |
-40°C~+75°C |
Item |
Specifications |
Wavelength |
850 nm (Multi-Mode) |
Attenuation Tolerance (dB) |
1-10dB <±1.0dB ( typical ) standard |
11-30dB <±7% ( typical ) standard | |
Return Loss |
/ |
Operating Temperature |
-40°C~+75°C |
Storage Temperature |
-40°C~+75°C |

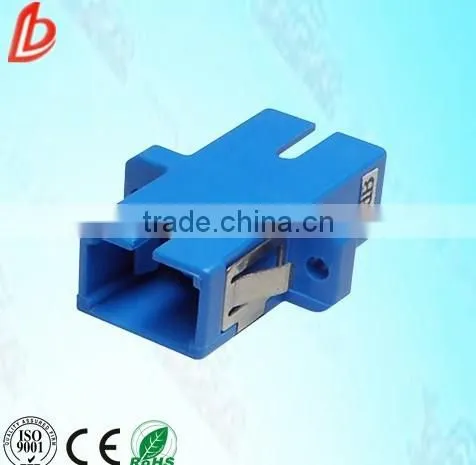

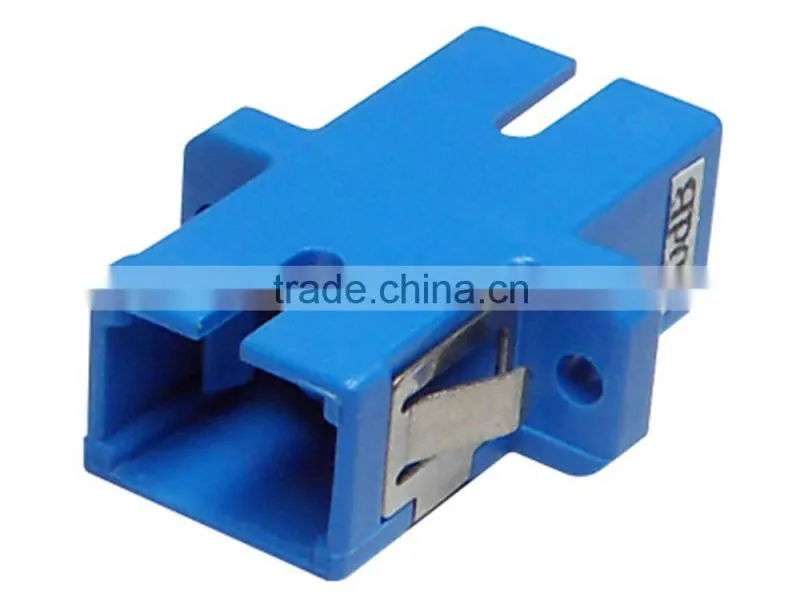

Pictures:
Payment and Delievery
Payment : L/C, T/T, Western Union, Moneygram,Paypal as well as Cash acceptable
Delievery: Shipment is usually delivered within 1-5 working days after receiving payment.The goods is usually sent by express way(TNT,UPS,FEDEX,DHL,EMS or other special way) or by ship as per customers' exact quantity and requirement.
